Crestron SIMPL™ Windows Software

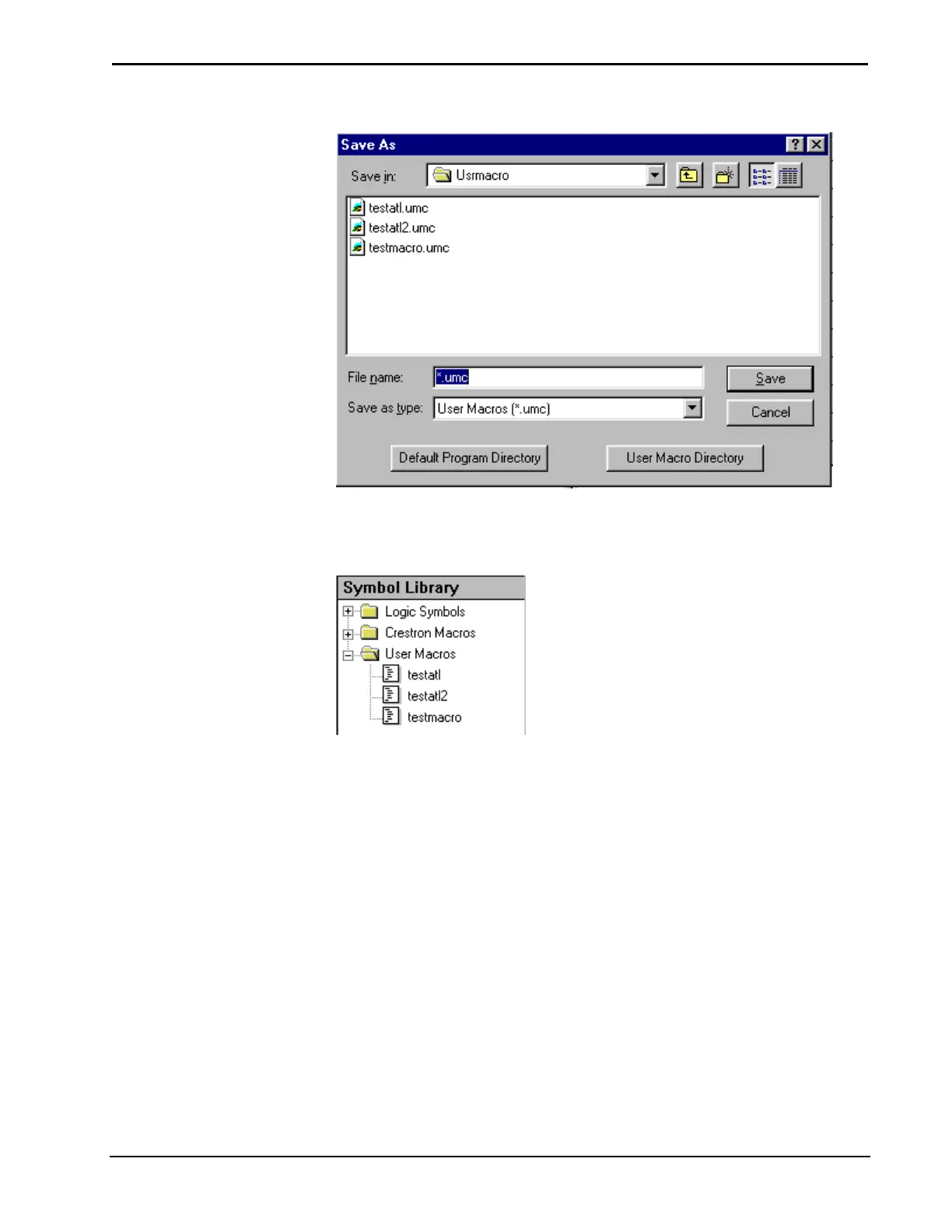

Save As Window

It may be necessary to restart SIMPL Windows to have the edited macro show up in

the User Macro folder.

User Macros in Symbol Library

Installation & Operations Guide – DOC. 5728C Crestron SIMPL Windows • 69
