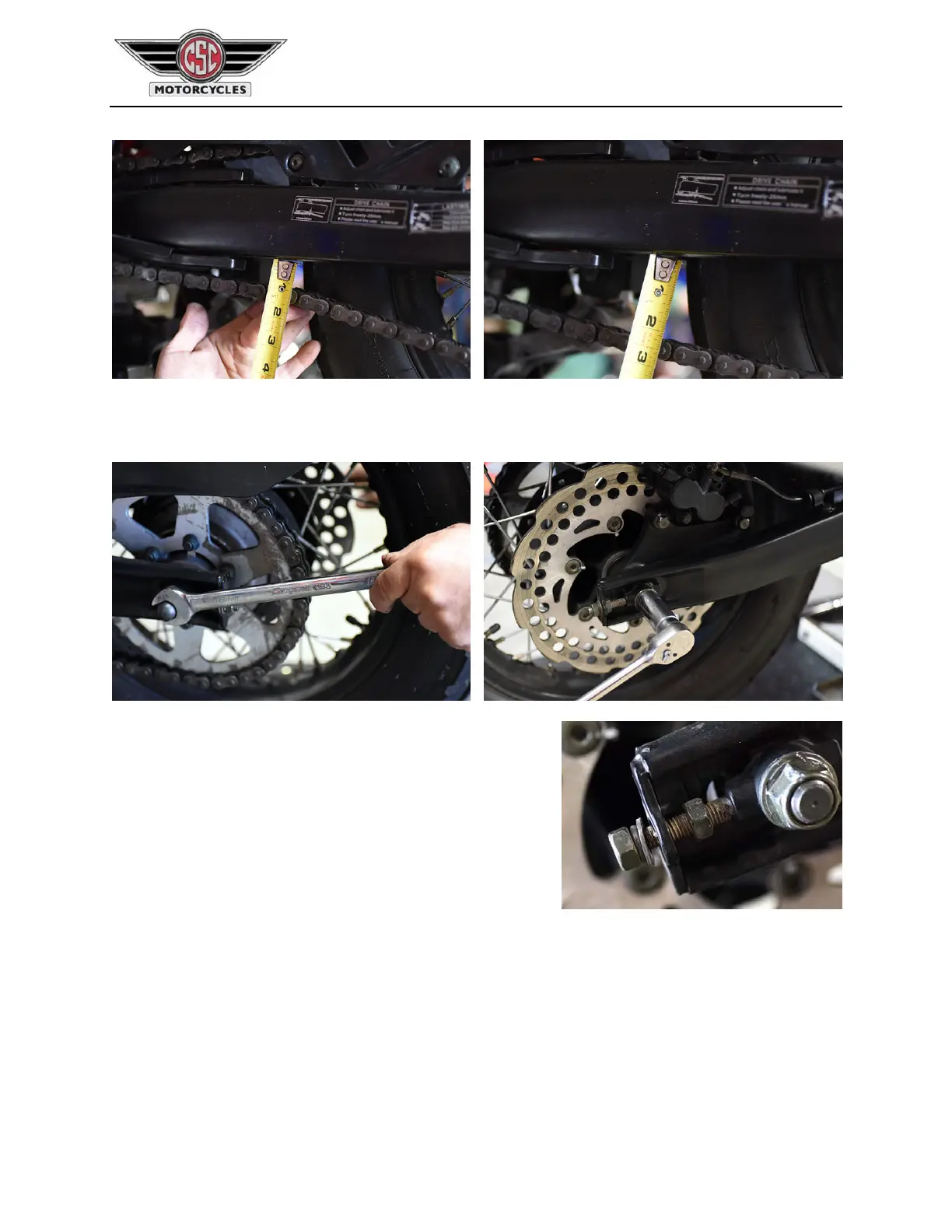

Toadjustthechaintension,loosen(butdonotremove)therearaxle,andloosenthechain adjustorson
bothaftendsoftheswingarm.Notethattherearaxlebolt andnutaredifferentsizes.Theboltheadis
18mmontheleftsideofthebike,andtherear
axlenutis17mmontherightsideofthebike.


Next,loosenthechainadjustorsonbothsidesofthe
swingarm.

Theseadjustorseachhavetwo13mmnuts,oneoneachside
oftheadjustmentplate,asshowninthephotototheright.

Notethatinthe
photototheright,therearaxleadjustornuts
havealreadybeenloosened.


Movetherearaxleeitherforwardorrearwardusingtherearaxleadjustornutswhilesimultaneously
positioningtherearaxlesuchthatthedesiredchaintensionisachieved,andrearwheelisaligned.Note
therearenowashersbetweentheinsidenutandwhereitbottomsagainsttheendof
theswingarm,and
thatthereisaflatwasherandalockwasherbetweentheoutsidenutandtheendoftheswingarm.

Toattaincorrectalignmentrearwheelalignment,therearetwoapproaches(measuringthedistance
betweentheswingarmpivotpointandtherearaxle,oraligningtherearaxleadjustors
withscribelines
ontheswingarm).

