Instruments

Themotorcycleinstrumentsshowtheworkingconditionofthemotorcycle.Theinstrumentcluster
containsthefollowinginstruments:

 Analogtachometer.
 Digitalspeedometer.
 Gearindicator(willshownogearindicationwhenbikeisinneutral).
 Fuelgage.
 Temperaturegage.
 Tripmeter.
 Odometer.
 Clock.
 Pushbuttontotogglebetweenkilometersandmiles.
 Pushbuttontotogglebetweentripmeterandodometer.


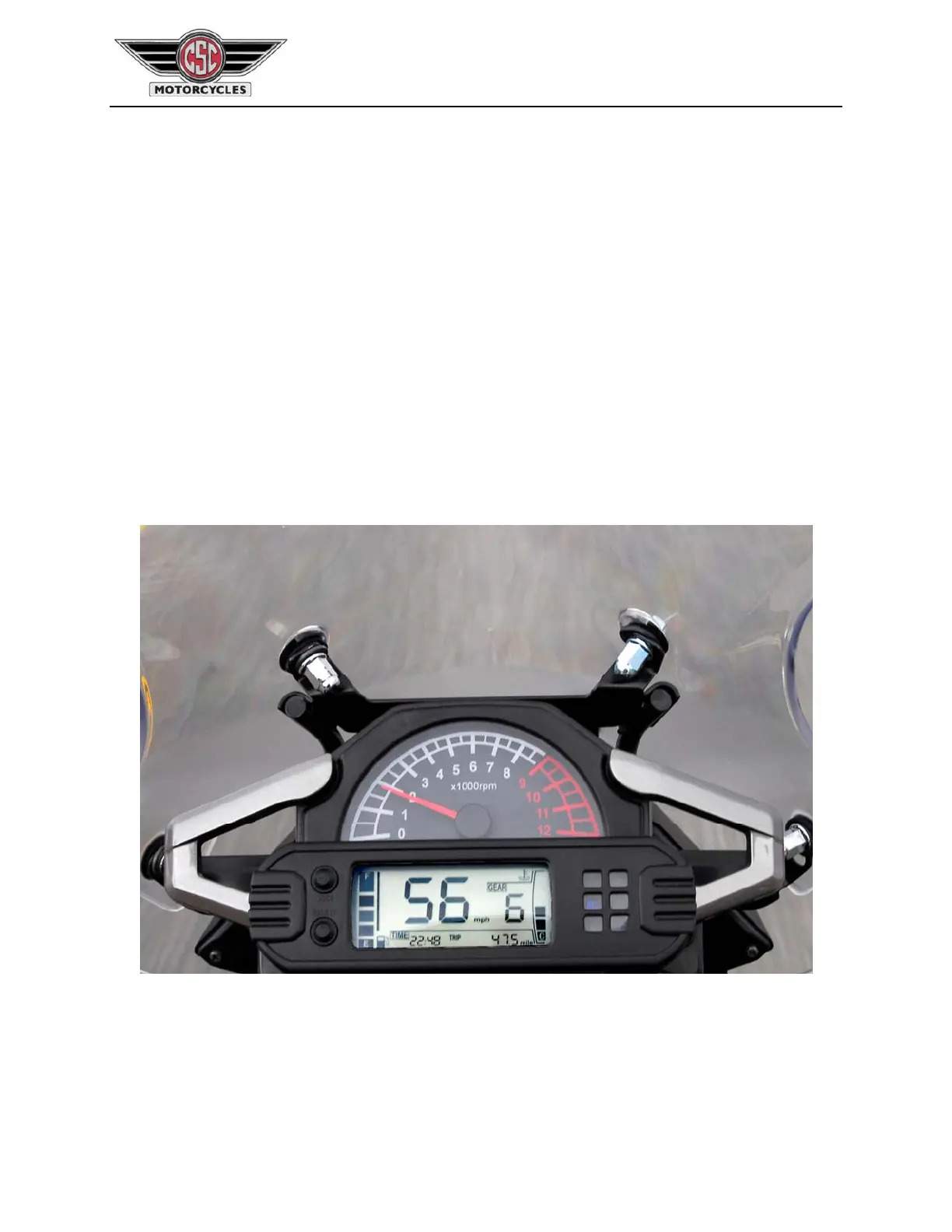

Theinstrumentlayoutisshowninthephotographbelow. 



Otherthanreplacingtheindicatorlightbulbs,theinstrumentsarenotdesignedtoberepairable.Ifany
oftheinstrumentsfails,
theinstrumentclustermustbereplaced.

Althoughthefueltankcapacityis4.2gallons,thefuellevelshouldnevergobelow1.0gallonremaining
inthefueltank(thisremainingfuelservestocoolthefuelpump).Whenthefueltankshouldberefilled,
anorangeindicatorlightonthe
rightsideoftheinstrumentclusterwillalsoilluminate.Thefuelgageis
