Reinstallbothoilfillcaps(theonewiththeslotandtheonewiththeextensionforturningbyhand).
Startthemotorcycleandletitrunforacoupleofminutes,andcheckforleaks.

CSCMotorcyclescanprovideyouwitheverythingyouneedtochangeyouroil,including
recommended 
regularandsyntheticoil.Weofferacompleteoilchangeservicepack.Callusat9094450900toorder
theseitems.

ValveAdjustment

CSCrecommendsinspectingthevalvegapat500miles,andadjustingthevalvesevery5000miles.Ifthe
motorcycleisriddenaggre ssively orathigh
rpmforextendedperiods,youmayneedtoincreasethe
valveadjustmentfrequency.


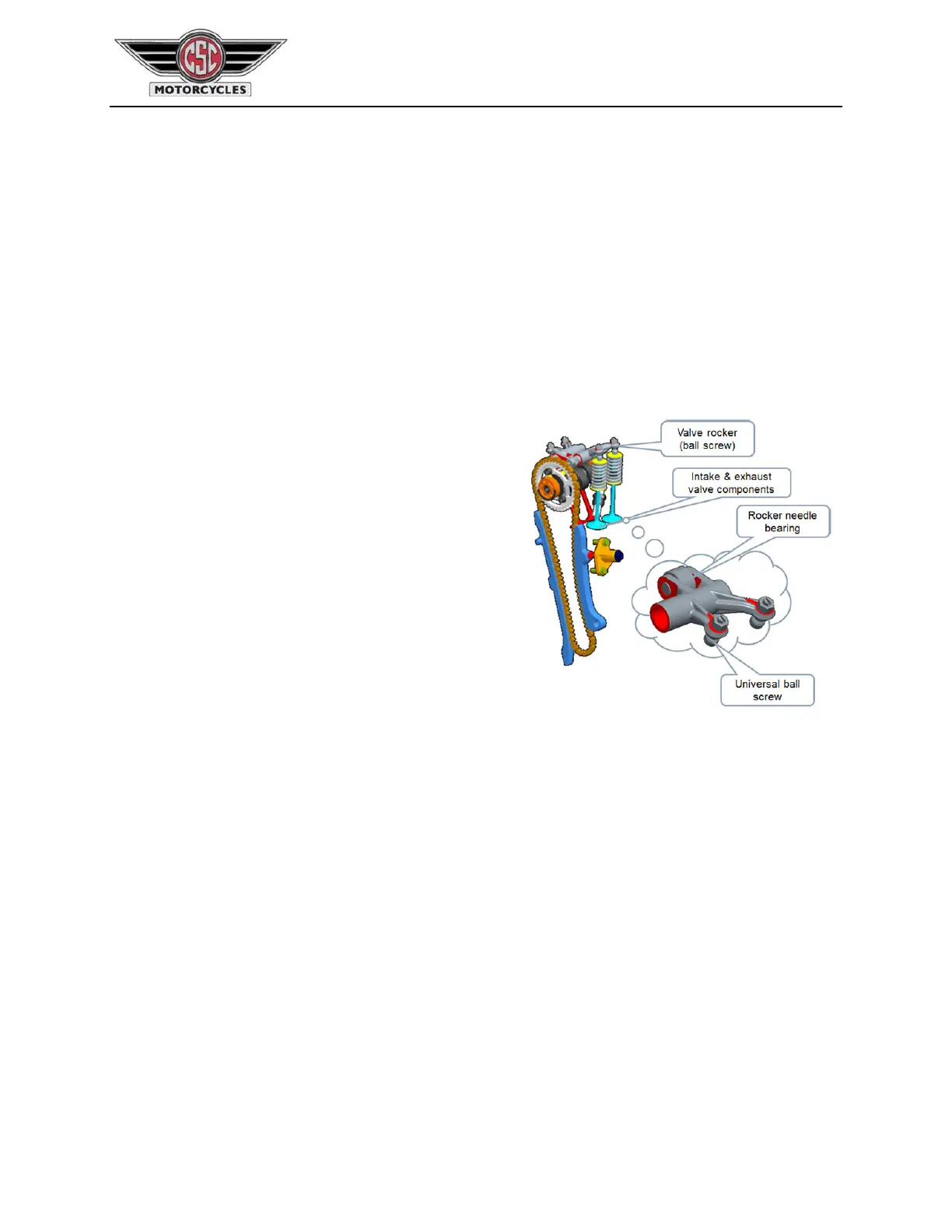

TheCSCRX3hasahighperformance,singleoverhead
cam,4‐valveengine.

Therearetwoexhaustvalvesandtwointakevalves.
TheCSCRX3hasasinglecamshaftwithtwolobes,
andtworockerarms.

One
rockerarmactuatesbothintakevalves;theother
rockerarmactuatesbothexhaustvalves.Thecam’s
lobesarewhatactuatetherockerarms.Asthecam
lobeliftstherockerarm,therock erarmpivotsonits
shaft.Therockerarmhasonearmthatfollowsthe
camlobeupand
down,andtwoarmsthatactuateits
twovalves.Theengineopenstheintakevalvesto
admitthefuel/airmixture,anditopenstheexhaust
valvestoexpeltheexhaust.


Whentheengineisatthetopofitscompressionstroke,allofthevalvesareclosed.Thisallowsfor
compressionofthefuelairmixture,igni tion,andtheresultinghighcombustionpressures willdrivethe
pistondown.

Ifanyleakageoccursaroundanyofthevalveswhilethisis
occurring,theenginewilllosepowerandit
could“burn”avalveifthecombustingfuel/airmixescapesaroundthevalvewhileitisstillburning.

Whenengineersdesignanengine,theywantittodotheabove,buttheyhavetoaccountforthe
thermalexpansionthatoccursas
enginetemperatureincreasesduringnormaloperation.Inorderto
compensateforthisthermalexpansion,theengineersdesigninagapinthecamlobe/rockerarm/valve
train.Astheenginewarms,thisgapapproacheszero,andeverythingworksthewayitissupposedto.

Thevalvescloseagainstthevalveseat
everytimetheygoupanddown.Asthevalvepoundsagainst
theseatwhentheengineruns,verysmallamountsofdeformationoccurinboththevalveandthevalve
seat.It’smicroscopic,butitgrowsovertimeastheengineruns.Asthiswearincreases,ithasthe
