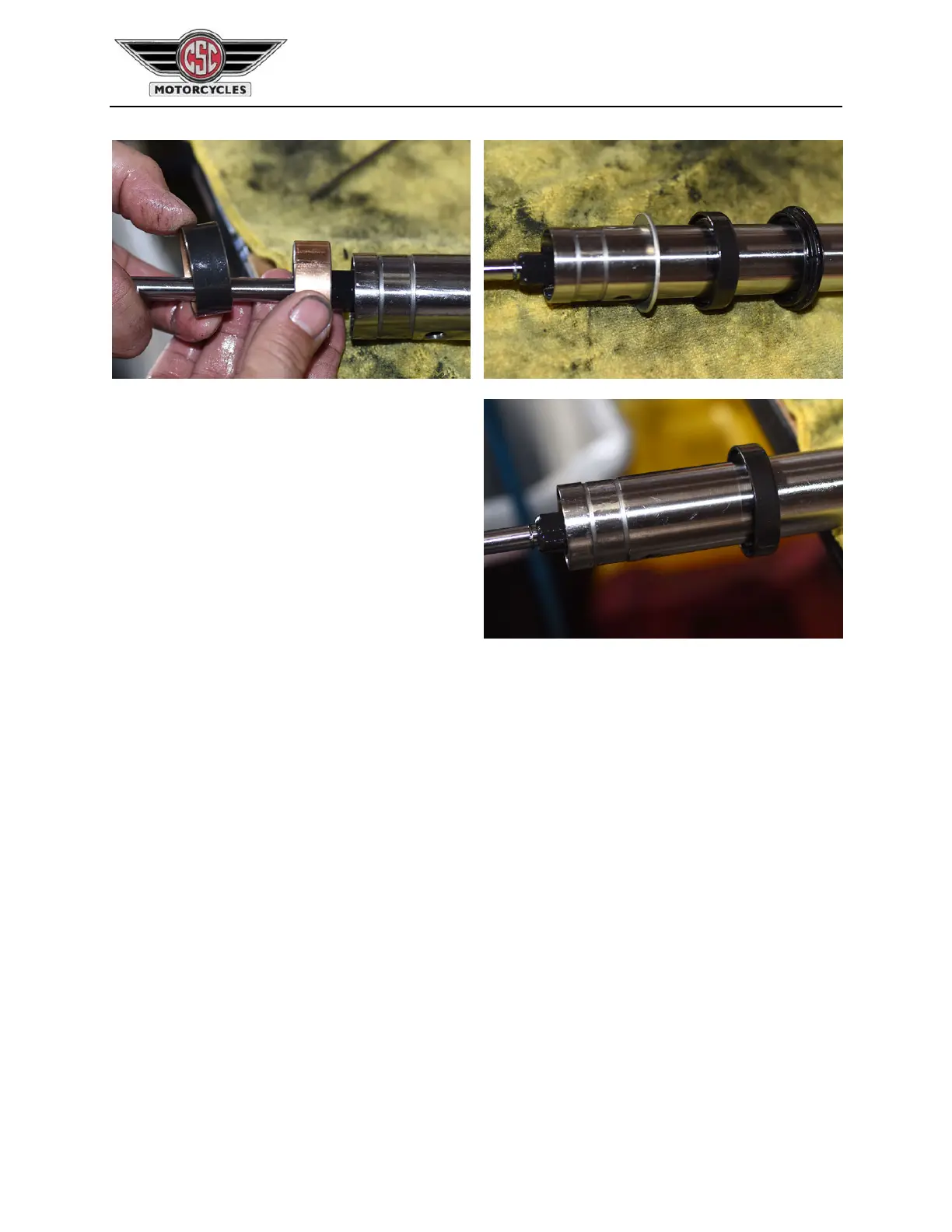

Removethedustsealandtheforksealfromthe
forklower.

Takecarenottodamageeitherseal.Theedgesof
theforklower’sannualgroovearesharpandthese
edgescandamagetheseals.


Afterremovingtheforksealandthedustseal,examinebothcarefullyfor
anycuts,tears,ordegradation.
Replacethedefectivepart(s).

Examinetheforklower(whichisthepartthatslidesthroughthedustsealandtheforkseal).Ifthereare
anyscratches,gouges,orsurfaceimperfectionsontheportionoftheforklowerthatslidesthroughthe
seals,polishtheimperfections
outorreplacetheforklower.

Afteryou’vereassembledtheforks,tightenallfastenersinaccordancewiththetorquetableintheCSC
RX3ServiceManualtorquespecificationtable.

RearShockAbsorber

Therearshockabsorberisahydraulicspringcompositerearshockabsorber,whichconsistsoftheupper
connector,
bufferrubbersheath,bushing,rearshockabsorberspring,rearshockabsorberlever,piston
rod,damper,andlowerconnector.

