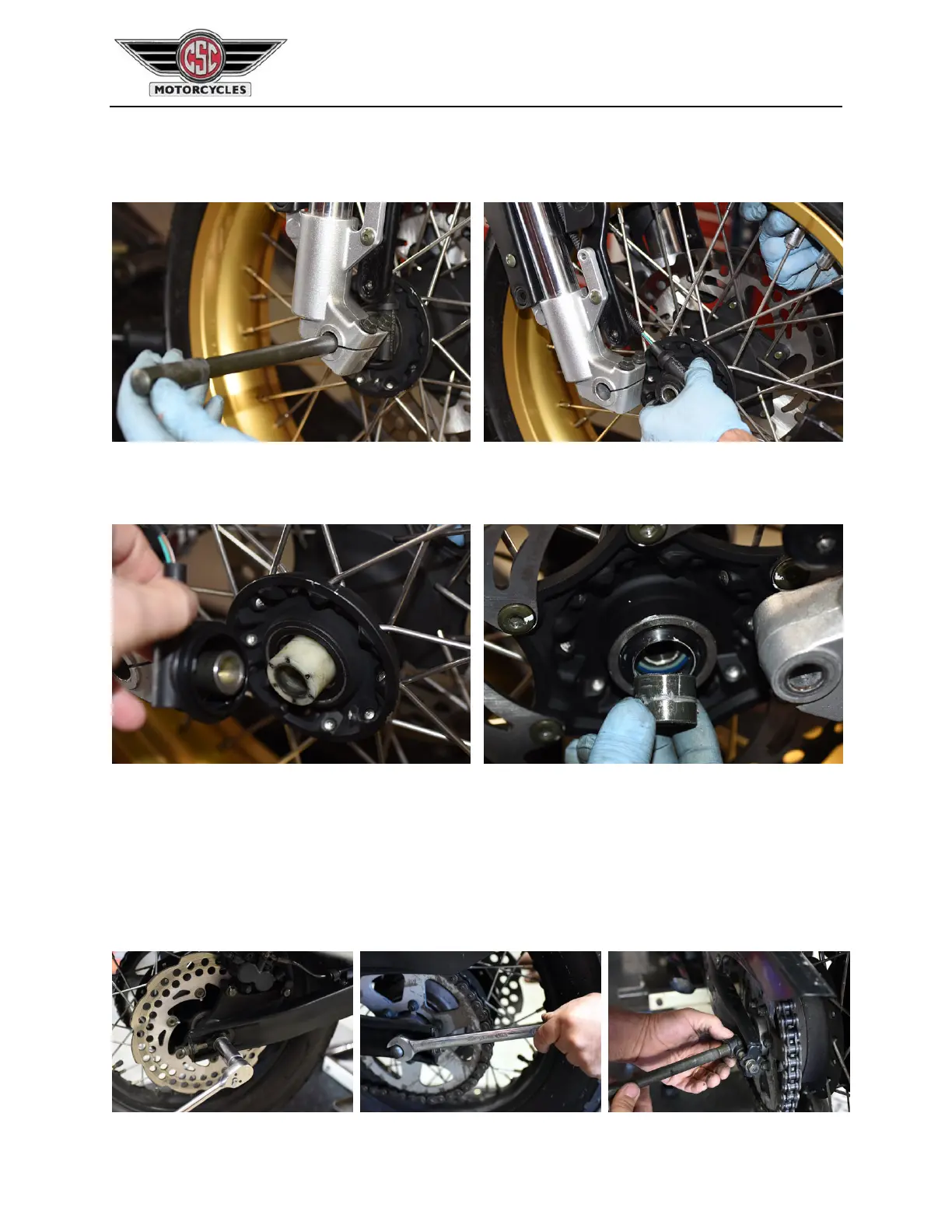

Slidethefrontaxleoutontherightsideofthemotorcycle.Rollthefrontwheelforwardashortdistance
andremovethespeedometerdrivefromtherightsideofthefrontwheelhub.


Youcannowremovethefrontwheel.Notethatthereisonlyonebushing,andthat
isinstalledonthe
leftsideofthefrontwheelhub(itiscapturedbetweentheleftforkandthewheelhub).


Frontwheelinstallationisthereverseoffrontwheelremoval.Whenreinstallingthespeedometerdrive
unit,makesurethatthetabinitfitsintotheslot
onthefrontwheel.

RearWheelRemoval

Removetherearaxlenut(therearaxlenutis17mm;theboltheadontheothersideis18mm).Pullthe
rearaxleoutfromtheleftsideofthemotorcycle.

