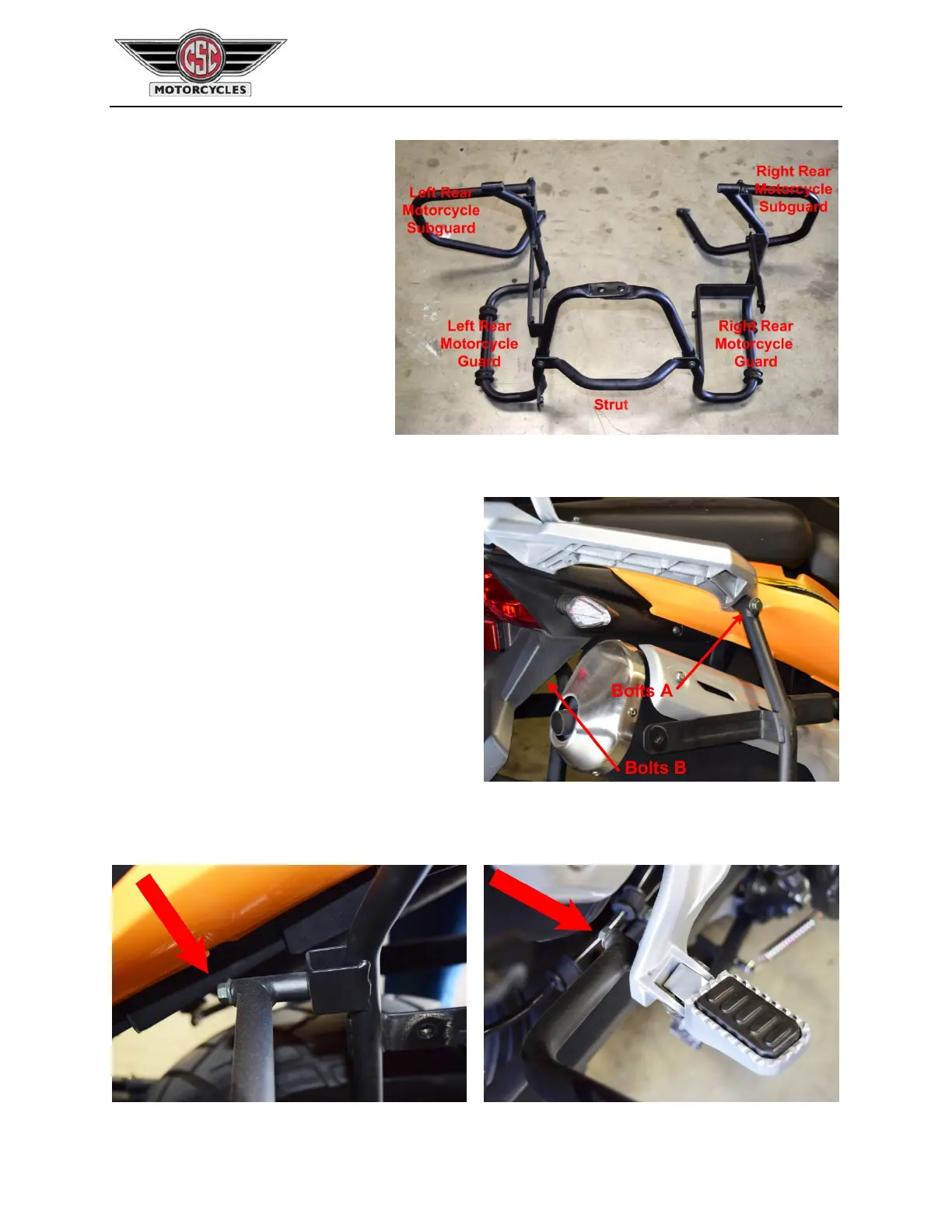

Thephotototherightshowsthe
rearengineguardsassembledoff
themotorcycle.

Thisphotoisprovidedonlyforthe
purposeofclarifyingtherelative
positionofthepartsinthe
assembledcondition.

Donotattempttoassemblethe
guardspriortoinstallationonthe
motorcycle.

Positiontheright
rearmotorcycleguardontherightsideofthemotorcycle.

InsertBoltAthroughtherightrearmotorcycle
guardandtherackandhandtightentoframe.Do
thesameontheleftsideofthemotorcycle.

InsertBoltsBthroughtherightandleftrear
motorcycleguardsandinto
framebeneathrear
fender.

NotethatBoltsBgothroughboththeleftand
rightrearmotorcycleguardsbeneaththerear
fender.
InsertBoltsDandEthroughboththerightandleftrearmotorcyclesubguards.Theupperportionof
thesubguardsecurestotherearmotorcycleguardwithBolt
D;thelowerportionofthesubguard
securestotherearfootpegbracketwithBoltE.

