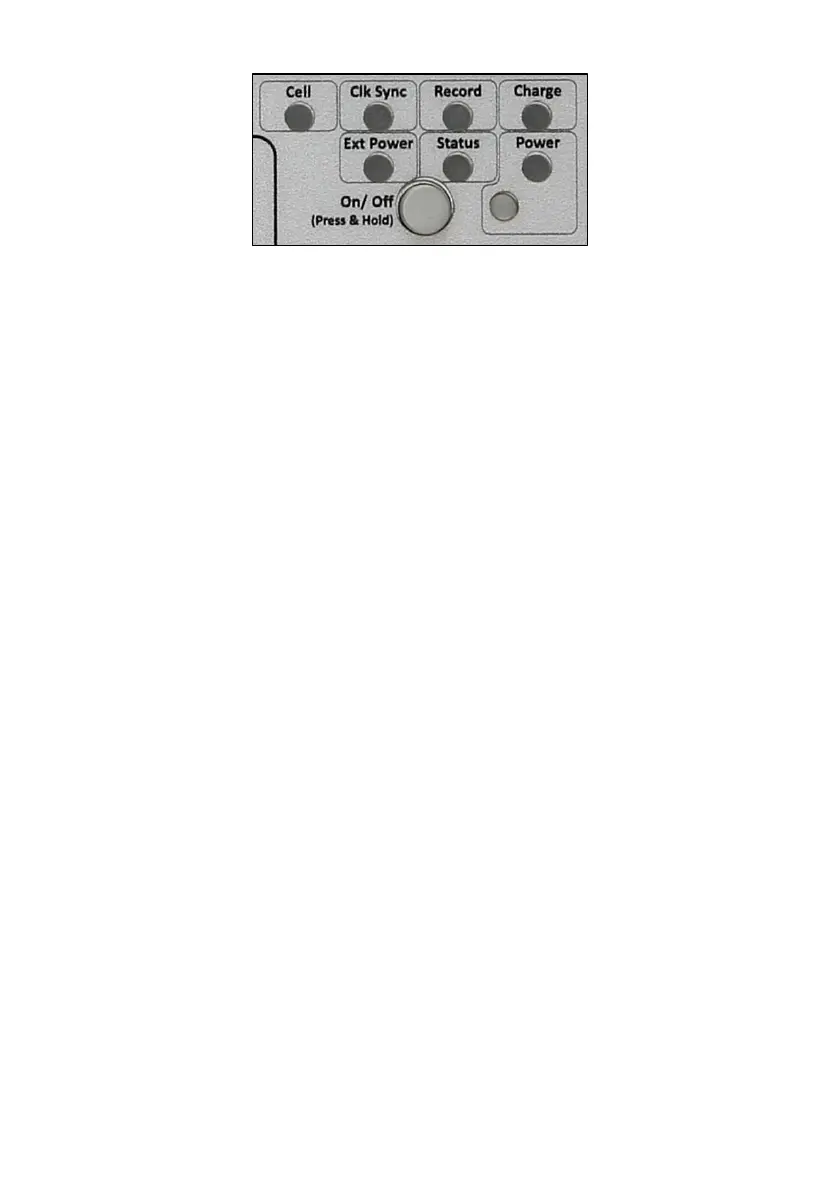

Figure 21: Status LEDs, On/Off button and Power Button
LEDs as shown in Figure 21 provide information about the status of the device.
Table 7 describes the various states. In storage mode, all LEDs are off.
3.4 Powering up the Vecto III device
The following two sections describe the method for powering up the Vecto III. After
powering up the device the Status LED will be flashing green. Osprey Lite
TM
can be now
used to configure the device (please refer to Osprey Lite
TM
User manual for more
detail). The device will not turn on and the Status LED will turn red in an error
condition. Please refer to Section 3.6 for information on interpreting error condition
codes.
3.4.1 Powering up from Storage Mode
First connect the device to mains power (90-300V AC or DC) or POE. Press the Power
button with a pen or pencil and check that the Power LED starts to flash. The external
power LED should be on. Unless the battery is 100% full, the battery charge LED should
be on as well. When the Power LED starts to flash, switch the device on by pressing
and holding the On/Off button. The Status LED will turn orange to indicate that the
device is booting normally. It will start to flash green once the boot cycle completed.
3.4.2 Powering up from Ready Mode
The device may be turned on without being connected to external power if the battery
capacity is sufficient. Press the On/Off button to power up the device . The Status LED
will turn orange to indicate that the device is booting. It will start to flash green once
the boot cycle completed.
