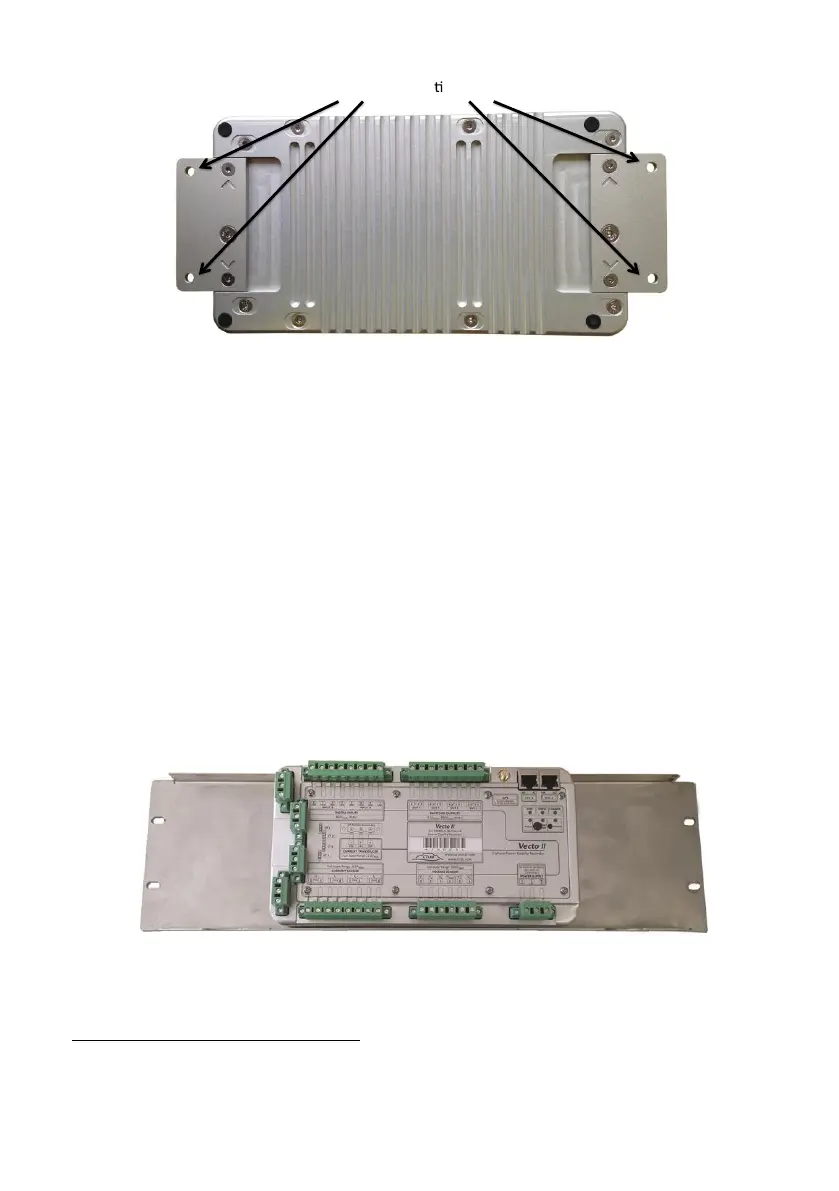

Figure 23: Surface mount Vecto III
4.1.2 19” Rack Mounting Installation
A 19” rack (4U) stainless steel mounting plate secures the Vecto III and provides a
mechanical interface for 19” racks
3
.
The 19” plate and the Vecto III is shipped separate and must be assembled on site.
Step 1:
Change the Vecto III configuration to panel mounting configuration as described in
section 0.
Step 2:
Install the Vecto III onto the 19” plate using the screws provided with the 19” plat set.
Figure 24: 19’’ Plate Mounting
3
Optional accessory
Surfacemoun ngholes
