2.4 Vecto III External Interfaces
2.4.1 Physical Appearance
Figure 3 shows the front of the Vecto III. The nameplate displays the name and serial
number of the device, detail layout of the external interfaces of the device and device
power and On/Off switches. A detail description of the external interfaces is provided
in Sections 2.4.2 to 2.4.11.
Figure 4 shows the back of the device. The Vecto III can be installed as a temporary
investigation device, be surface mounted or on a DIN rail as respectively shown in
Figure 4 a, b and c.

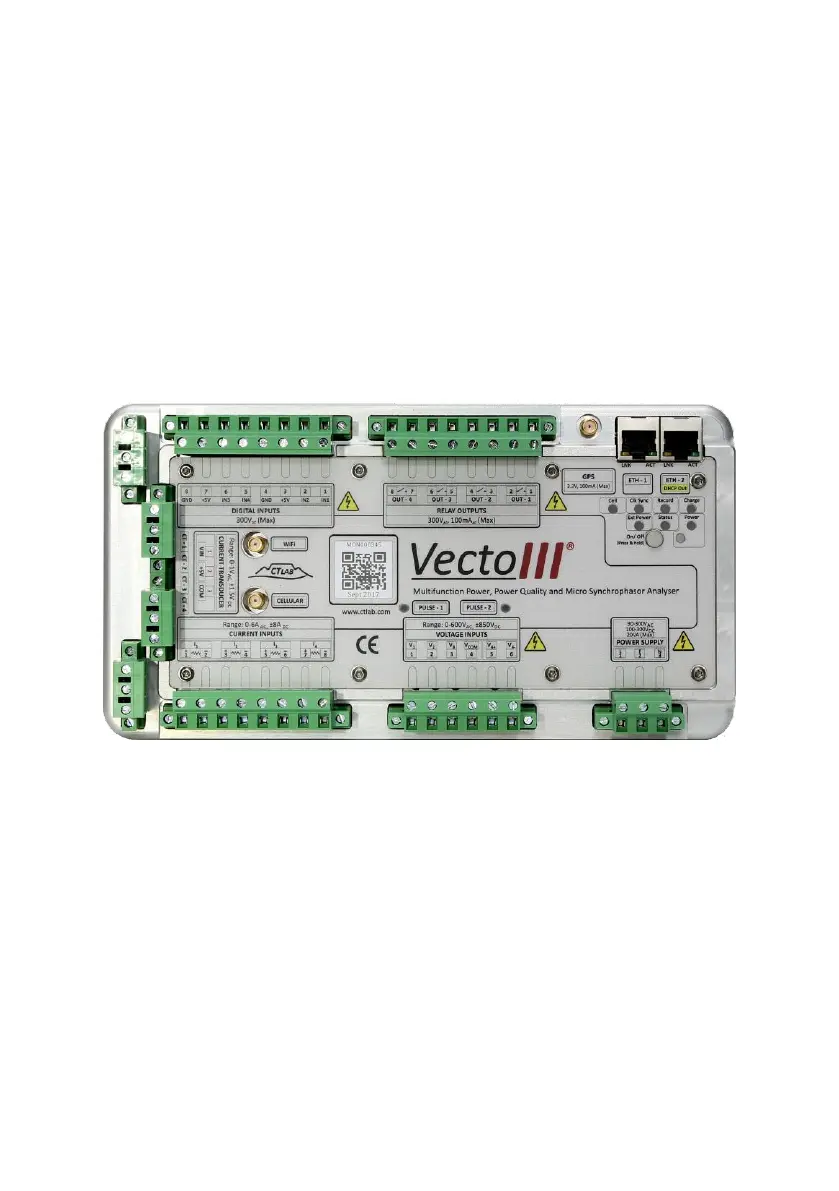

Figure 3: Front view of the Vecto III device

CT Lab Vecto III Specifications

General

Brand	CT Lab
Model	Vecto III
Category	Measuring Instruments
Language	English
