Vecto III User Manual

1) Connect Phase 1,2 and 3 to Voltage Inputs 1-3 as shown in the Figure 30.

2) Leave V

com

open or connect V

com

to the earthed Phase (Phase 2) on 110 V VT

circuits.

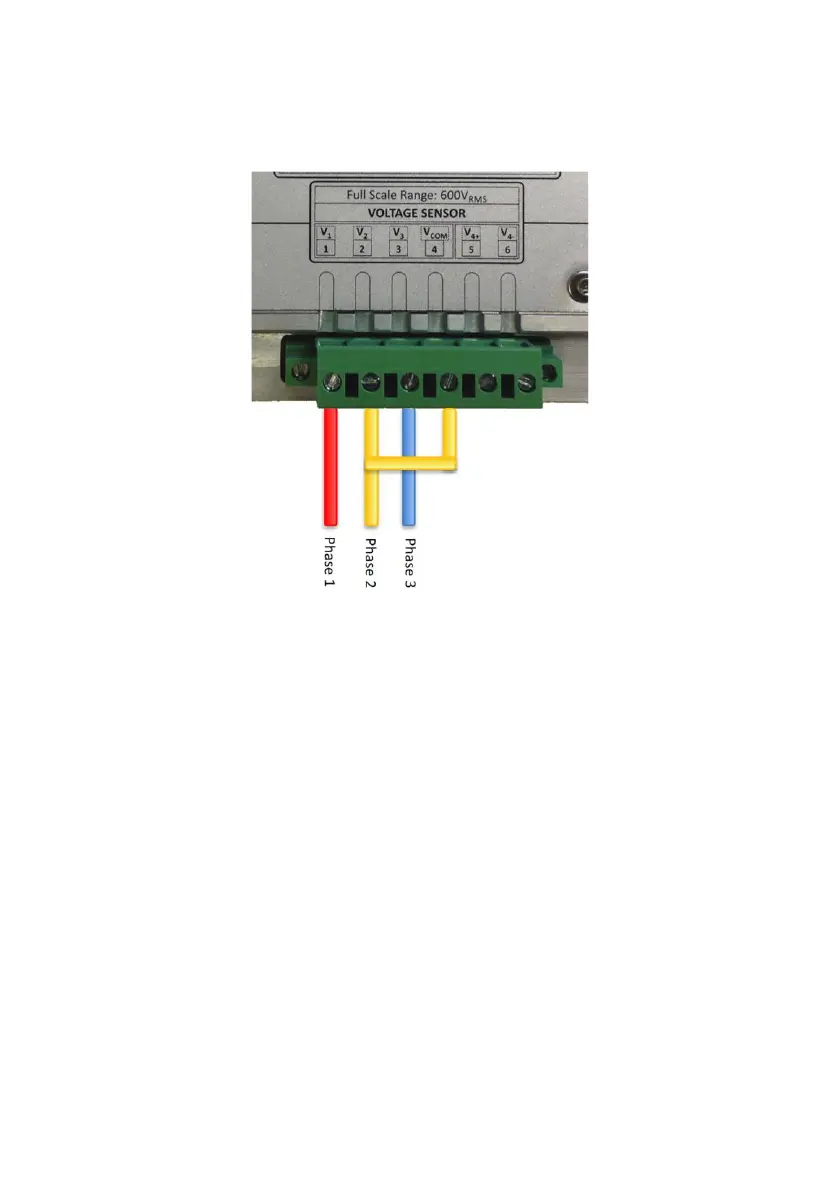

Figure 30: Vecto III 3-wire delta connection
