52
CHAPTER 3.
WEB CONFIGURATIONS

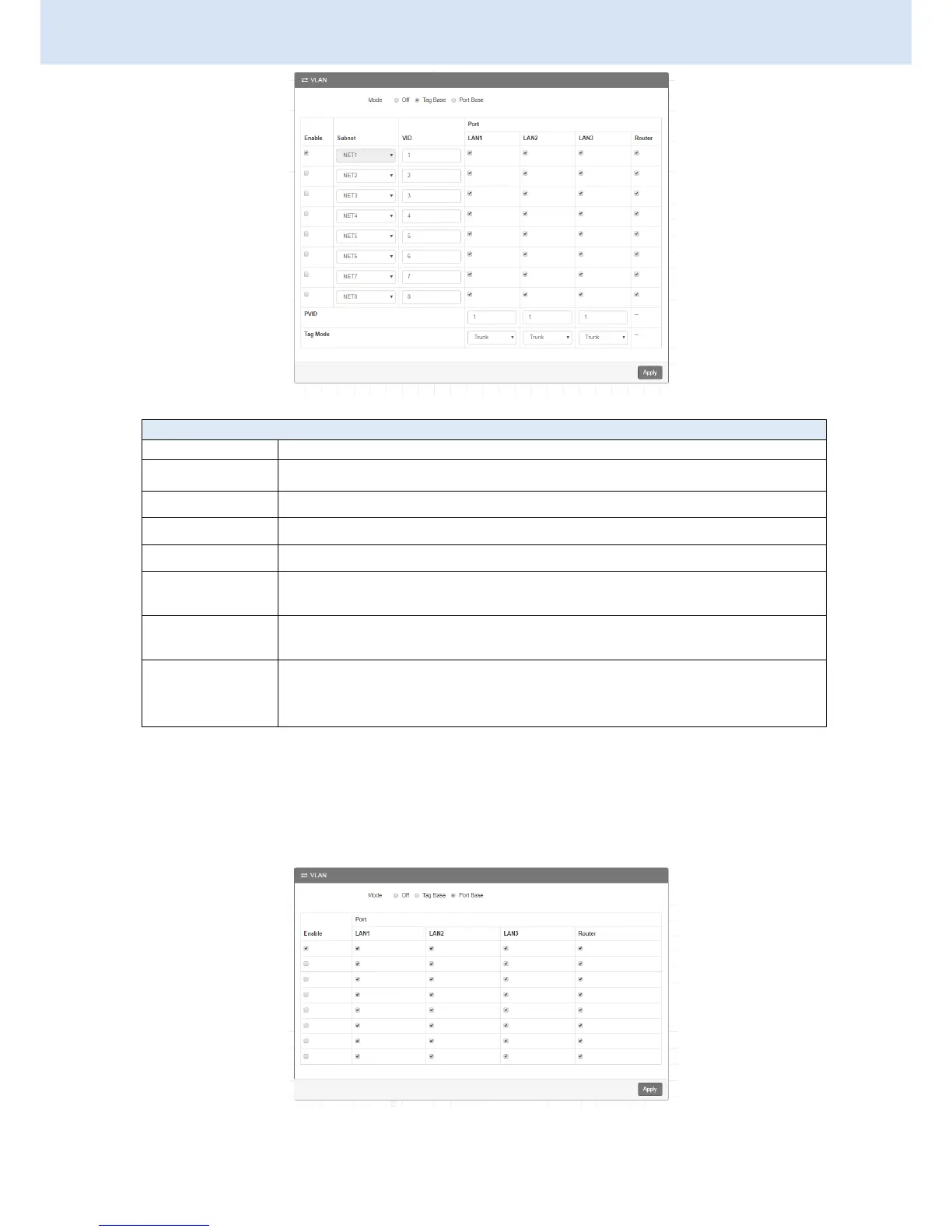

When VLAN Mode is set to Port Base, the VLAN setting window will appear as shown below.
For each row, the settings can be enabled or disabled by checkbox and assign the port to
communicate each other. There are three ports for Port Base Mode, including LAN1, LAN2 and
LAN3. And one Router port which is a gate allows those ports to access internet or the router.
LAN > VLAN (3-port LANs) > Tag Base
Item
Description
Mode
The VLAN mode is Off or Tag Base (802.1p VLAN).
Enable
The assigned row of settings are enabled.
Subnet
Sets the IP address, IP mask and DHCP server.
VID
The VLAN ID range is from 1 to 4094.
Port
The port is shown to assign the port to a VLAN which the device is
connected from LAN 1, LAN2, LAN3 and Router.
PVID
The PVID range from 1 to 4094
Sets the default VLAN ID for untagged devices connected to the port.
Tag Mode
The Trunk port setting is connected to another 802.1p VLAN aware
switch or device.
The Access port setting is connected to a single untagged device.
