CTC Union ICR-4103 User Manual

9
CHAPTER 1.
INTRODUCTION
1.4 Hardware Panel Layout
This chapter describes the panel and interface layout of hardware.

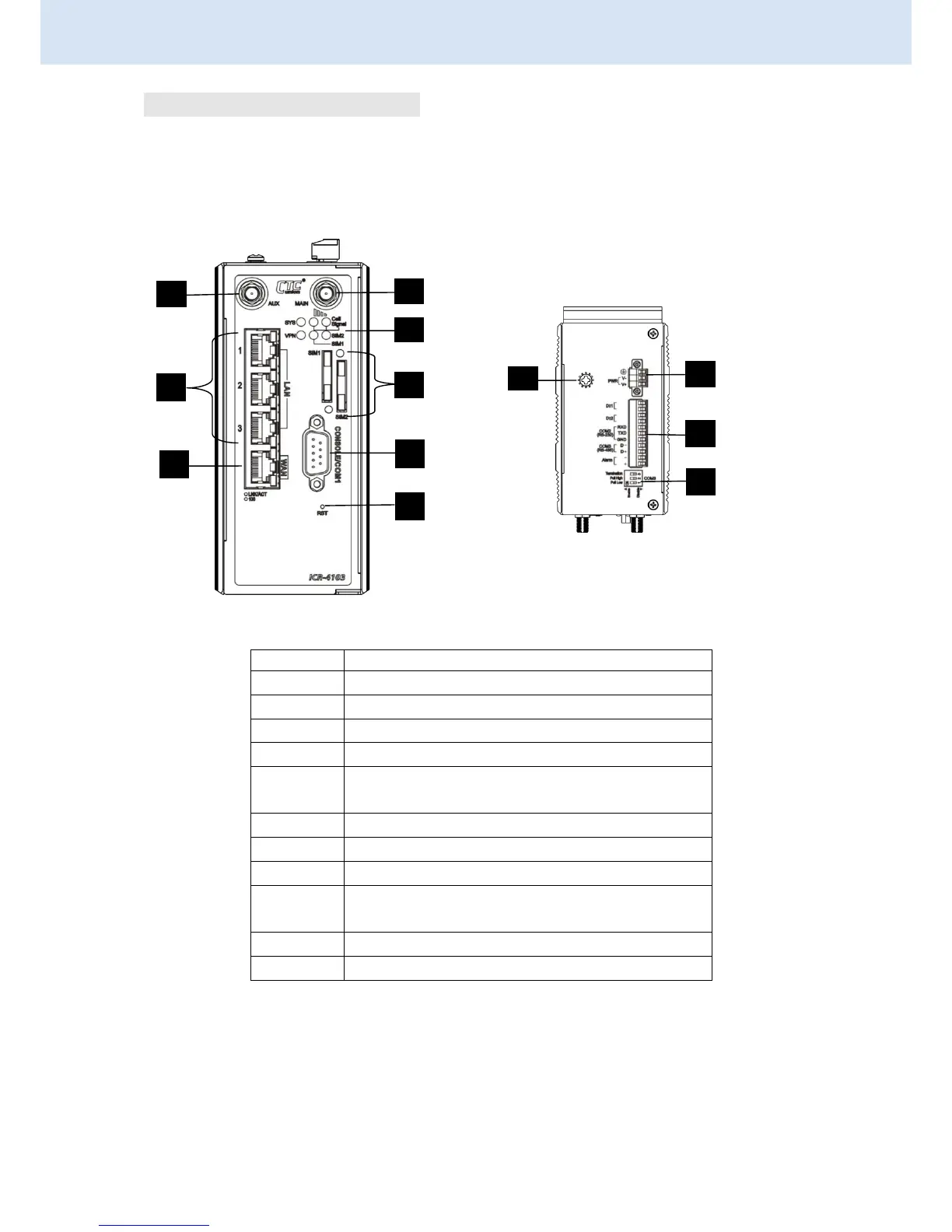

[Front Panel View] [Top Panel View]
Index No.
Description
1
Fast Ethernet port 1~3
2
WAN port
3
SIM card slot
4
SMA antenna connectors
5
LED indicators (SYS, Call Signal, VPN, SIM1,
SIM2)
6
RS-232 Console/COM1
7
Reset push-button
8
DIP switch
9
Terminal block for DI1, DI2, COM2 (RS-232),
COM3 (RS-485), Alarm
10
Terminal block for power
11
Earth grounding
8
9
11
10
1
2
3
4
4
5
6
7
