CHAPTER 1.
INTRODUCTION
1.2 Specifications

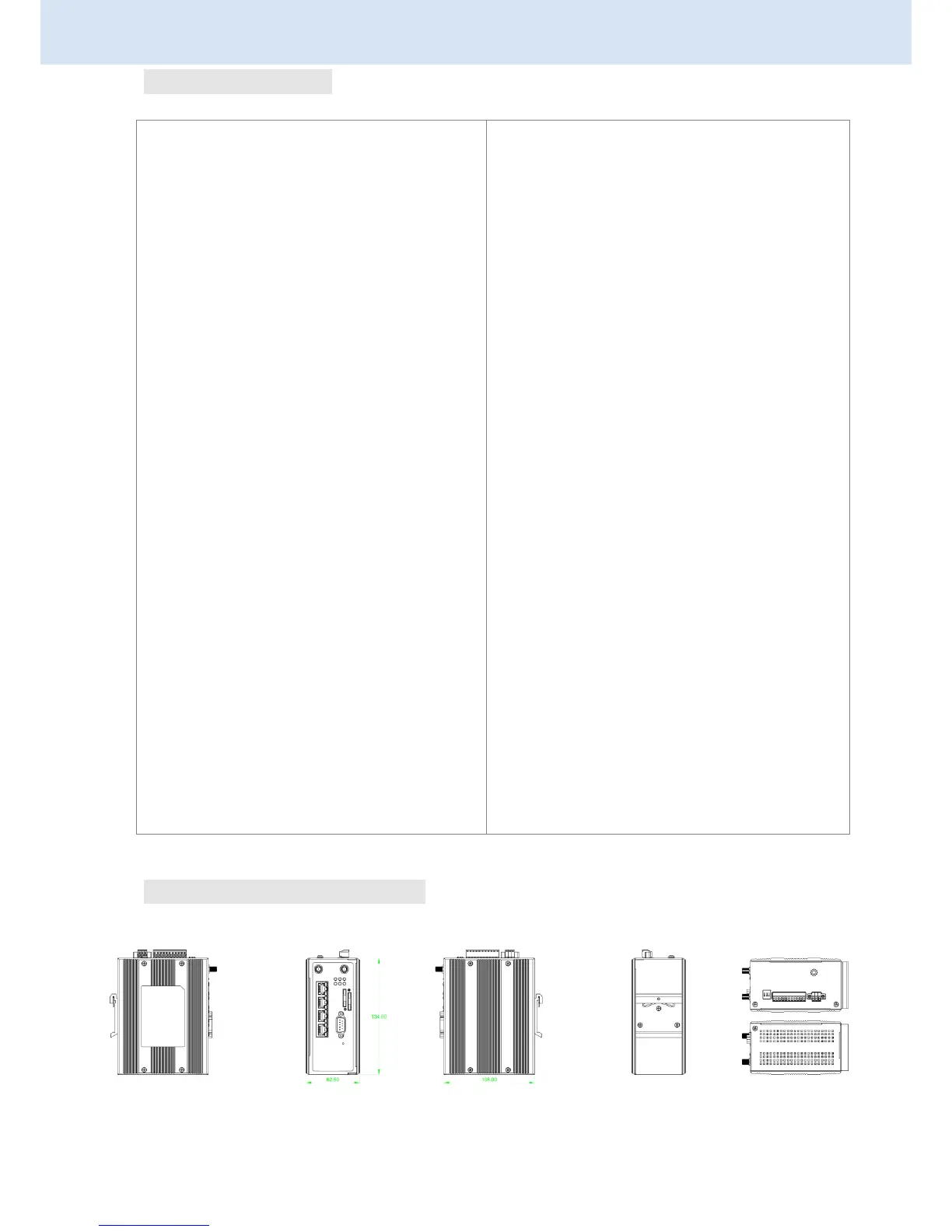

1.3 Mechanical Dimensions
LTE Interface
 FDD LTE: B1/B3/B5/B7/B8/B20
 TDD LTE: B38/B40/B41
 WCDMA: B1/B5/B8
 GSM: 900/1800 MHz
 LTE Cat4
Processor & I/O Interface
 High performance 528 MHz CPU with 512 Mbytes of
DDR3 memory
 2 x SIM Card Slots
 3 x LAN 10/100 Mbps Ethernet ports
 1 x WAN 10/100 Mbps Ethernet port
 Reset Button
 Console: 1 x RS232 (9-pin Sub-D)
 2 x SMA connectors for detachable LTE antenna
 1 x RS485 (D+/D-)
 1 x RS232 (TXD/RXD)
 2 x DI, 1 x DO (Alarm +/-)
Physical Characteristics
 Enclosure: Metal Shell, IP40 Protection
 Weight: 740g
 Dimension: 106 mm (D) x 62.5 mm (W) x 135 mm (H)
 Installation: DIN Rail (Default) or Wall Mount
(Optional)
LED Display
 1 x System status LED (Green)
 1 x VPN status LED (Green)
 1 x SIM1 status LED (Green)
 1 x SIM2 status LED (Green)
 Ethernet status LEDs (Green for LINK/ACT, Yellow for
SPEED)
 2 x Mobile connection strength LEDs (Green)
Power Supply
 Power Consumption: <7W
 Power Input: 12/24VDC (8.4~30VDC)
MTBF (mean time between failures)
 296,306 Hrs (MIL-HDBK-217)
Software
 Network Protocols:
IPv4, IPv6, IPv4/IPv6 dual stack, DHCP server and
client,
PPPoE, Static IP, SNTP, DNS Proxy, Modbus, VRRP,
OSPF, Message Queue Telemetry, Transport (MQTT
Broker)
 Routing/Firewall:
NAT, Virtual Server, DMZ, MAC Filter, URL Filter, IP
Filter,
VLAN, Static Routing and RIP-1/2
 VPN:
OpenVPN, IPSec (3DES, AES128, AES196, AES256,
MD5, SHA-1, SHA256)
 Wireless Connectivity:
Two SIM for failover/ roaming over/ back up
Two SIM data usage control
Seamless multi WAN connections switch
 Others:
DDNS, QoS, Virtual COM, UPnP
 Alarm:
DI, DO, SMS, VPN/WAN Disconnect, SNMP Trap,
E-mail
Management Software
 Web GUI for remote and local management, CLI
 Dual Image firmware upgrade by Web GUI
 Syslog monitor
 SNMP, TR069
 Remote management via SSH v2, HTTPS
 Local management via Telnet, SSH v2, HTTP/HTTPS
Environment
 Operating Temperature: -20 ~ +75°C
 Storage Temperature: -40 ~ +85°C
 Humidity: 5 ~ 95% (non-condensing)
Standards and Certifications
 EMI: FCC
 EMC: CE (EN55032 & EN55024)
 Railway Traffic: EN50121-4
 Immunity for Heavy Industrial Environment:
EN61000-6-2
 Emission for Heavy Industrial Environment:
EN61000-6-4
 Safety: EN60950-1
 Radio: EN301489, EN301908, EN303413
