Cub Cadet Challenger 750

Engine
4‐15
Engine cooling Fan and A.C. Magneto
No.
Part Name
Qty
Remarks

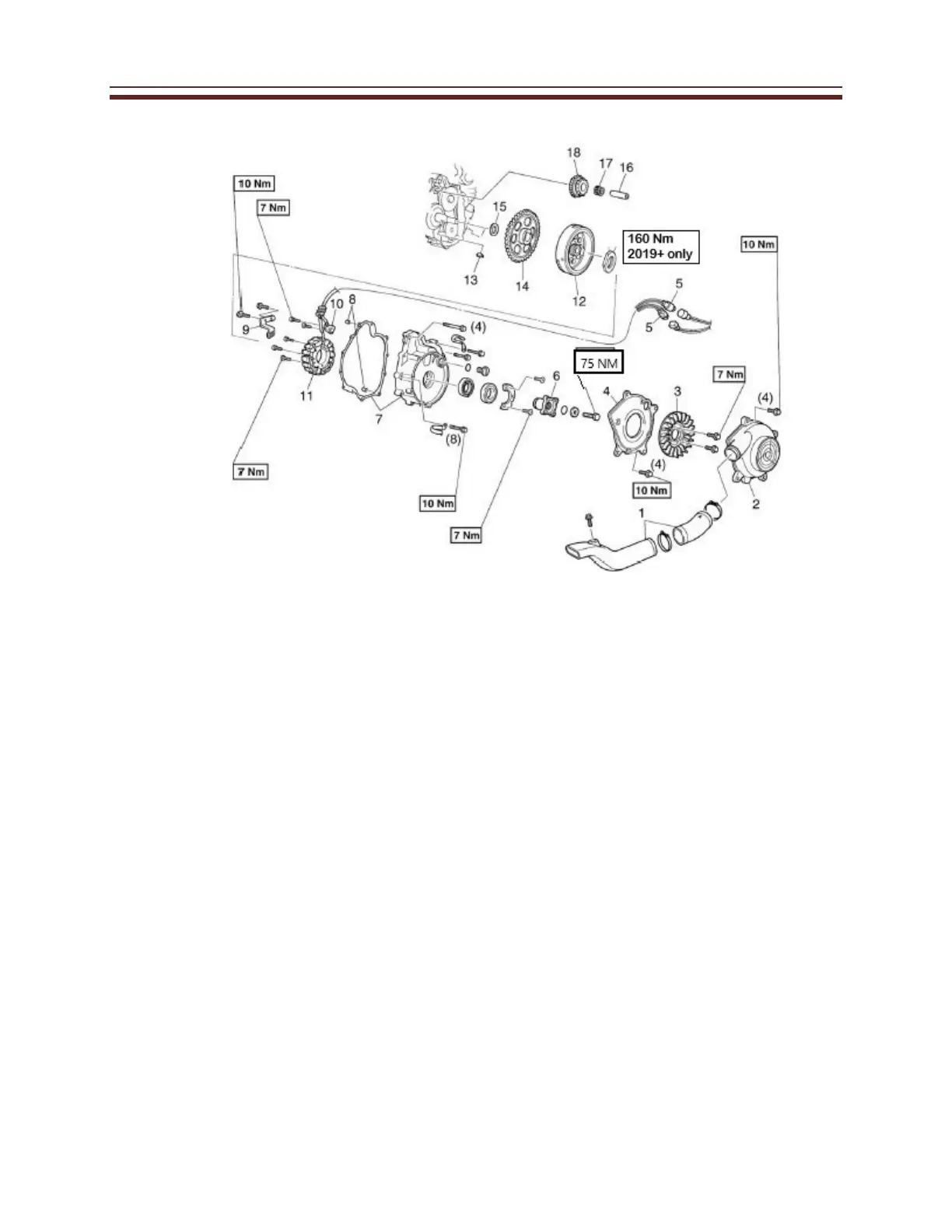

Removing the engine cooling fan
Remove the parts in the order listed.
and A.C. Magneto
Drive Belt cover
Engine oil
Coolant
Water Pump assembly
1
Engine cooling fan air duct assembly
1
2
Air shroud 1
1
3
Engine cooling fan
1
4
Air shroud 2
1
5
A.C. Magneto coupler
2
6
Engine cooling fan pulley base
1
7
A.C. Magneto cover/ gasket
1/1
8
Dowel pin
2
9
Stator lead holder
1
10
Pickup coil
1
11
Stator assembly
1
12
A.C. Magneto rotor
1
13
Woodruff key
1
14
Starter wheel gear
1
15
Washer
1
16
Starter idle gear shaft
1
17
Bearing
1
18
Starter Idle gear
1
Installation, reverse the order listed
