Cub Cadet Challenger 750 User Manual

Chassis
5‐10

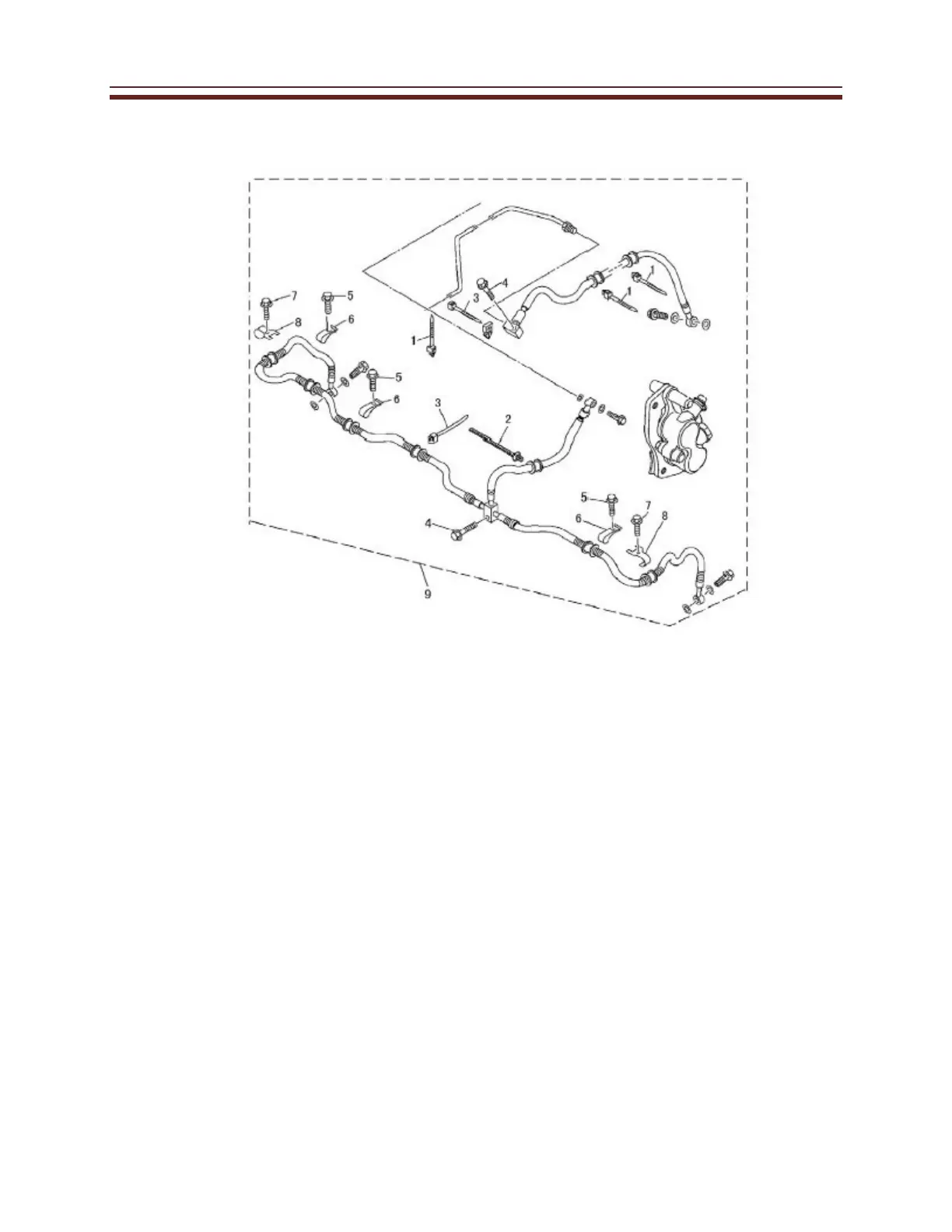

Front Disc Brake Components
No.
Part Name Removing
the front Brake line attachment
hardware
Qty
Remarks
1
Belt 3 (L – 150)
2
2
Belt 4 (L – 200)
4
3
Belt 6 (L – 150)
4
4
Bolt 6mm X 30mm
1
5
Bolt 6mm X 20mm
1
6
Disc brake line clip
3
7
Flange bolt 6mm X 20mm
4
8
Wire Clip fixed plate
2
9
Brake line assembly
1

Cub Cadet Challenger 750 Specifications

General

Brand	Cub Cadet
Model	Challenger 750
Category	Utility Vehicle
Language	English
