Electrical

6‐1

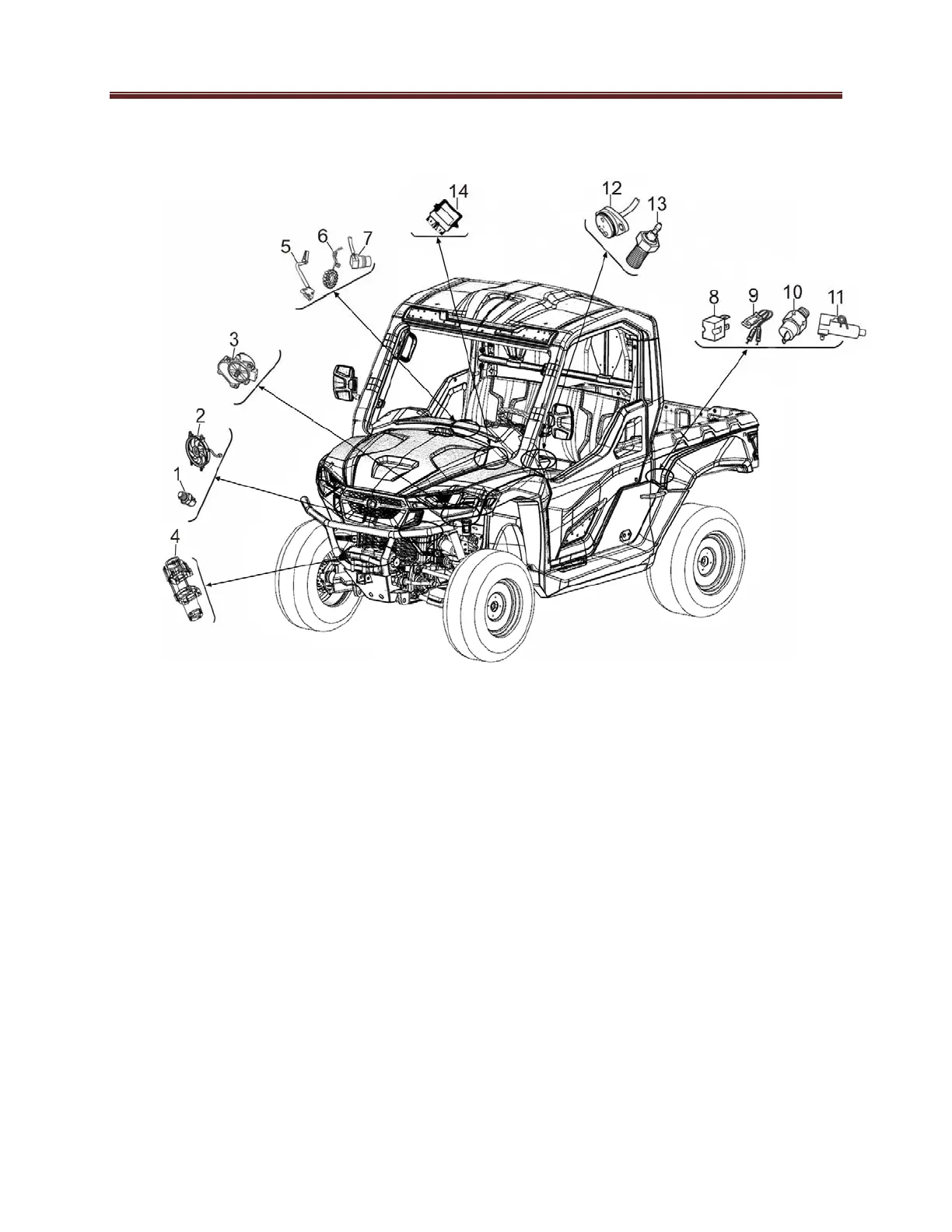

Electrical Components

Thermo switch 2

Radiator fan

3.Gear motor

Winch

Parking brake switch

6.Pickup coil/stator assembly

7.Speed sensor

Diode 1

Circuit breaker(radiator fan motor)

10.Thermo switch 1

11.

Ignition coil

12.

Gear position switch

13.Reverse switch

14.ECU unit
