Cub Cadet Challenger 750

5‐55
Chassis
Cooling System
No.
Part Name
Qty
Remarks

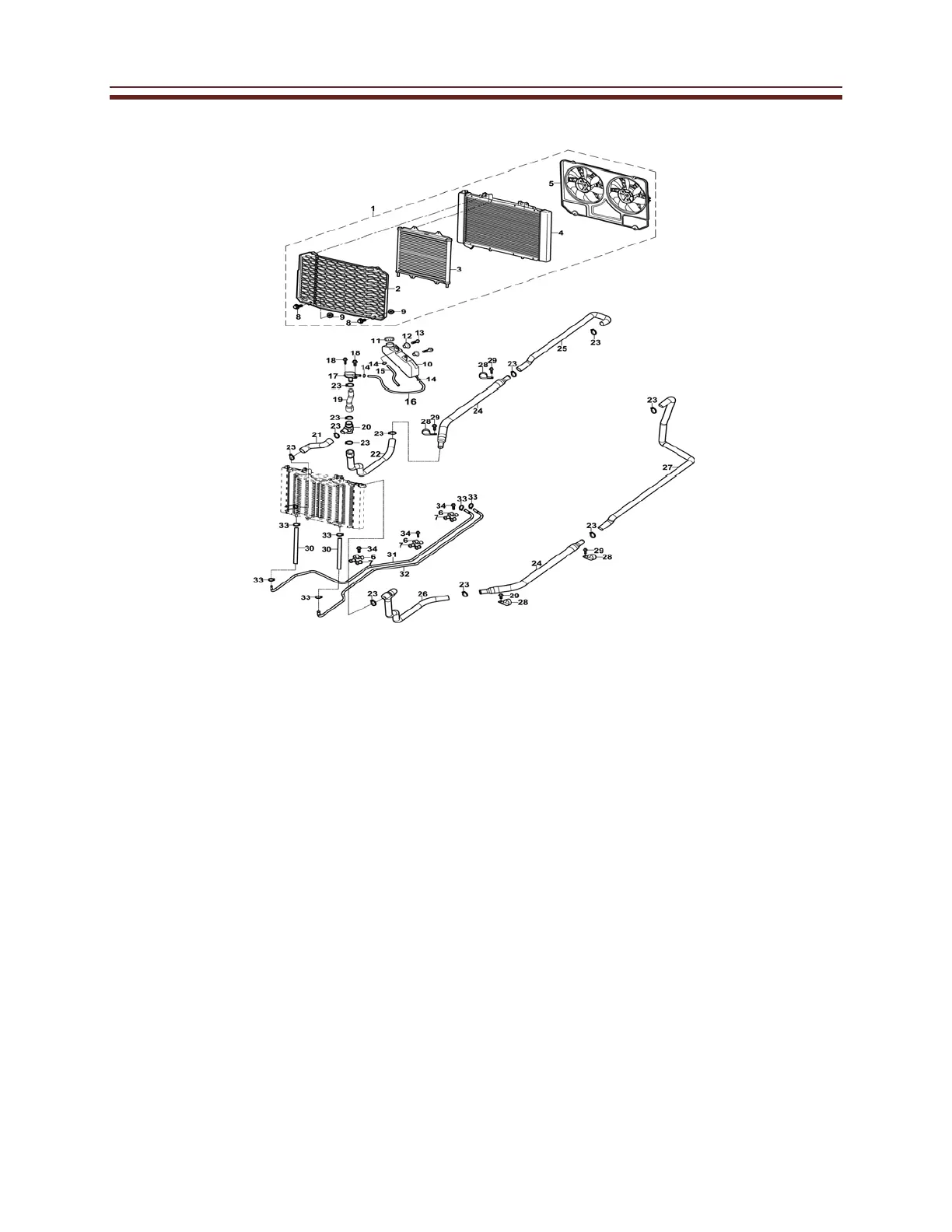

Removing the radiator 1
1
Water tank
1
2
Radiator cover
1
3
Oil cooler
1
4
Radiator assy
1
5
Radiator fan assy
1
6
M-shaped fixed pipe clamps
3
7
H-shaped rubber washer
6
8
Hexagon flange bolt M6×20
2
9
Hexagon flange nut M6
2
10
Secondary water tank
1
11
Secondary water tank cover
1
12
Collar bushing 6×9×22×6.5
2
13
Hexagon flange bolt M6×16
2
14
Clip 9
3
15
Rubber tube 5×9×550
16
Rubber pipe 7×11×750
1
17
Water inlet assy
1
