Inspecting the Brake Master Cylinder
1. Inspect

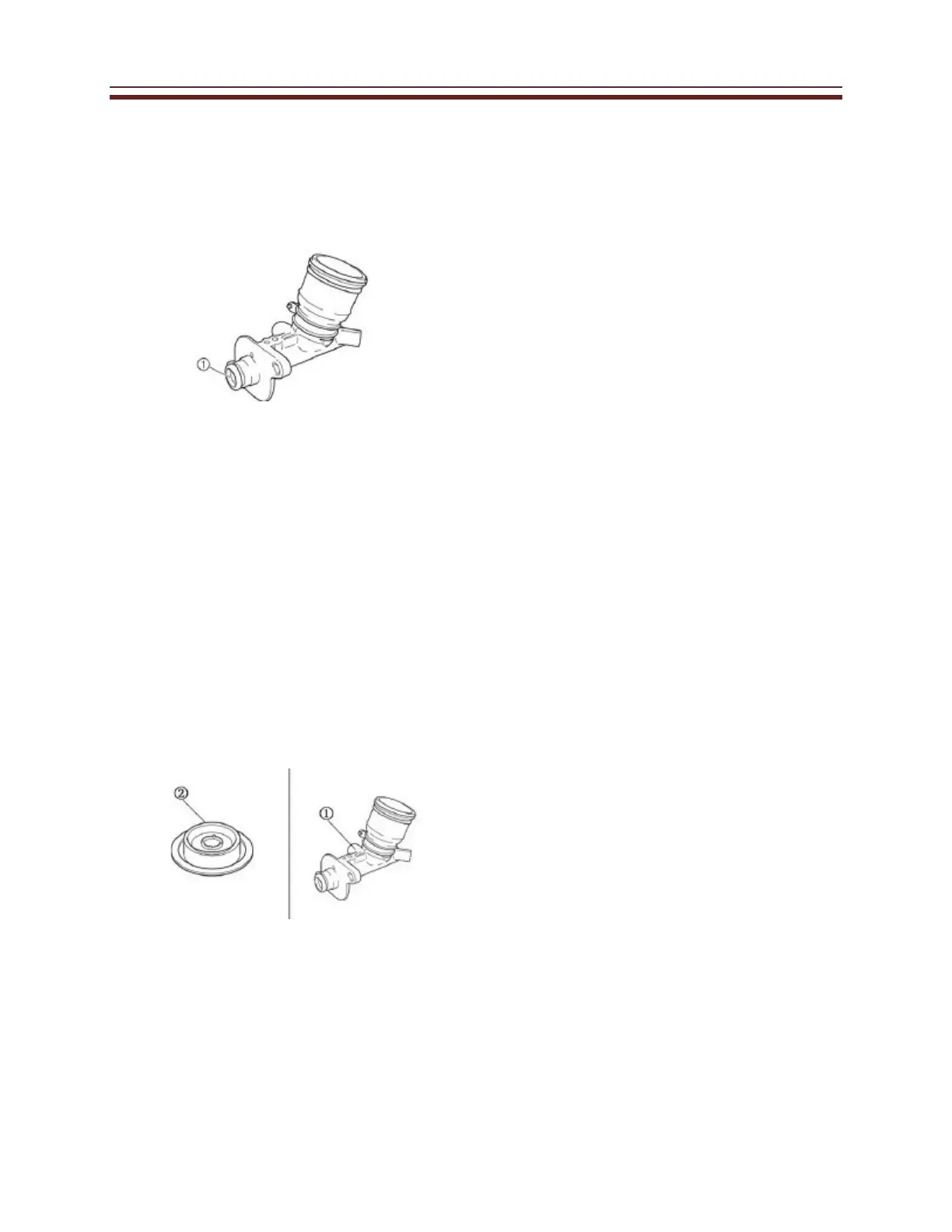

• Brake Master Cylinder (1).
Look for scratches or wear.
• Brake Master Cylinder body
Look for cracks or damage.
• Brake Fluid passages
Blow out with compressed
air.
• Brake Fluid Reservoir(1)
• Brake Fluid Reservoir
diaphragm (2).
Look for cracks or damage.
Installing the Brake Master Cylinder
1. Install the Brake Master cylinder
16Nm (1.6 m · kg,11 ft · lbs)
2. Install the Brake line
19Nm (1.9 m · kg,13 ft · lbs)
3. Install the copper washers, Brake
Hose and Union bolt.
27Nm (2.7 m · kg,19 ft · lbs)
4. Fill the reservoir.
Must use DOT3 Brake Fluid
5. Bleed the Brake system.
6. Recheck the Brake fluid level
above the minimum Level mark.
7. Adjust the brake pedal free play.
