Cub Cadet Challenger 750

Chassis
5‐4
Remarks

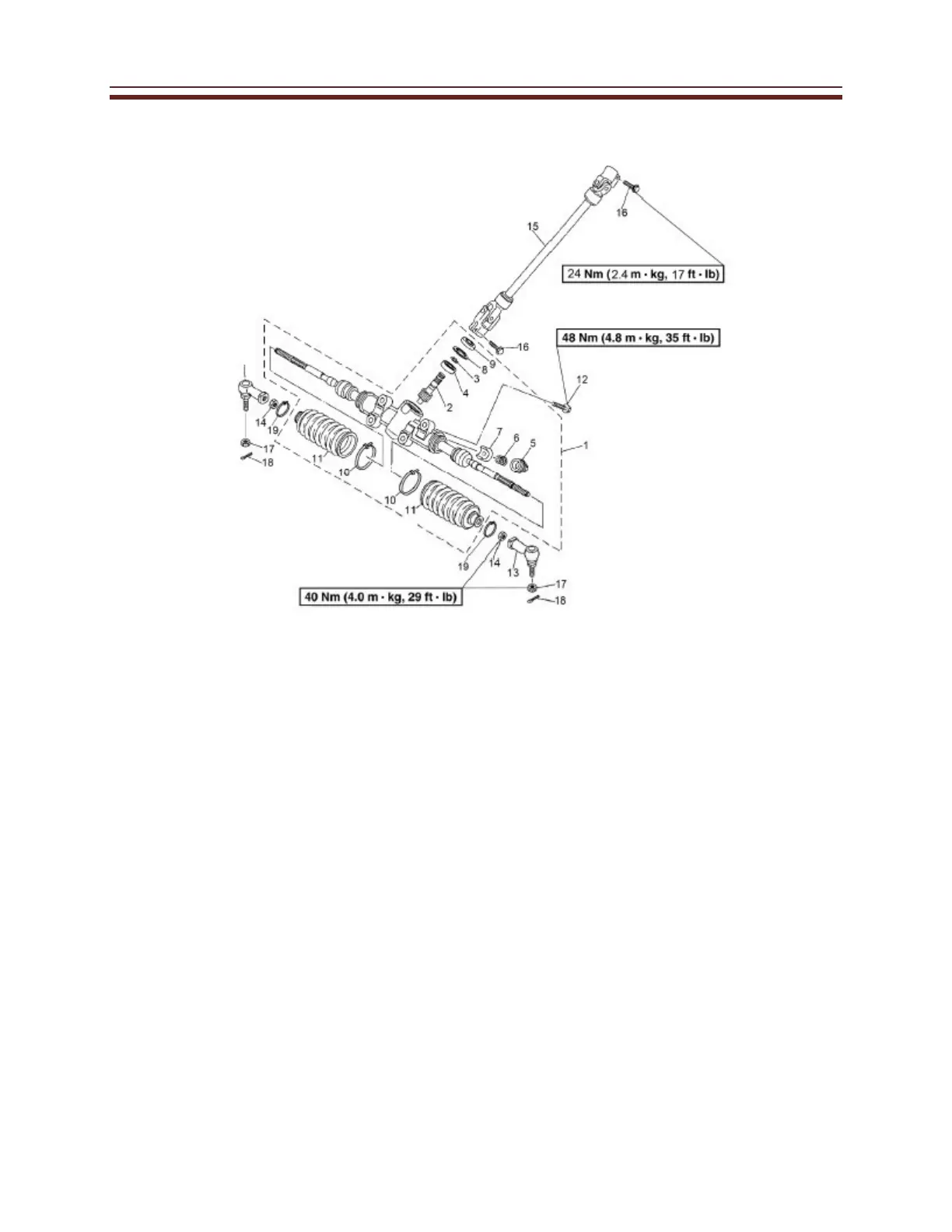

Steering System
No.
Part Name
Qty
Removing the steering assembly
1
Rack assembly
1
2
Pinion
1
3
Circlip
1
4
Bearing
1
5
Adjuster
1
6
Spring
1
7
Pressure pad
1
8
Circlip
1
9
Oil seal
1
10
Zip TieL-200
2
11
Dust Boots
2
12
Flange Bolt 10mm X 30mm
4
13
Tie Rod end
2
14
Locknut 10mm
2
15
Steering Joint
1
16
Flange Bolt 8mm X 20mm
2
17
Castle nut
2
18
Pin
2
19
Zip Tie
2
