Chassis
5.

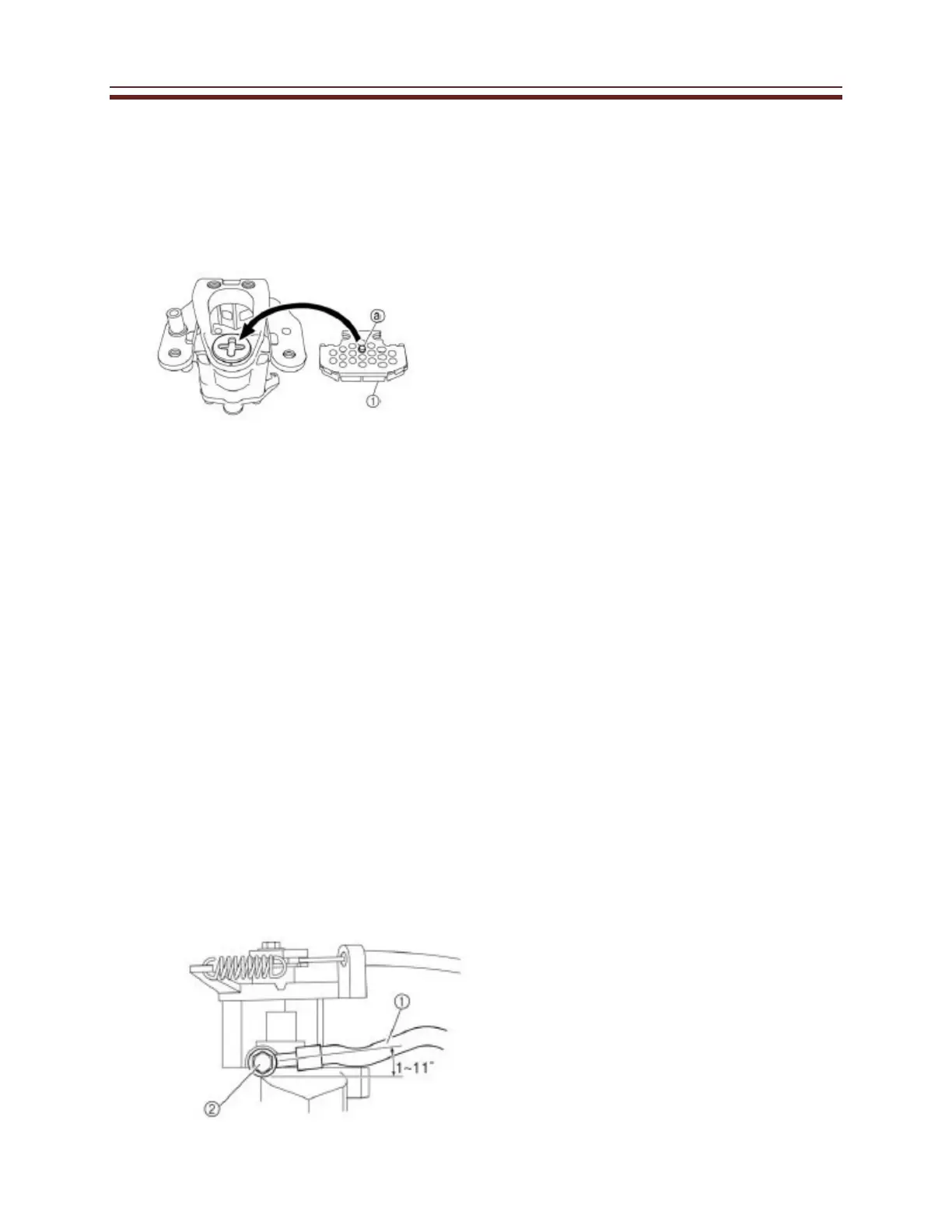

Install the brake pad (piston side)
(1)(with insulator and pad shim)
•
Align the projection (a) on the piston
side of the brake pad with the
groove in the caliper piston.
6.
Install the brake pad holding bolts.
17Nm (1.7 m · kg,12 ft ·
lbs) Installing the Rear Brake
Caliper
1.
Install the brake caliper with the
mounting bolts.
40Nm (4.0m · kg,29 ft · lbs)
•
Brake hose(1)
•
Copper washers
•
Union bolt(2)
48Nm (4.8m · kg,35 ft · lbs)
2.
Tighten the union bolt while holding
the brake hose as shown in this
illustration.
3.
Bleed the brake system
4.
Check for proper brake fluid level in
the reservoir.
•
Above the minimum
level mark
5.
Adjust the parking brake cable free
play.
