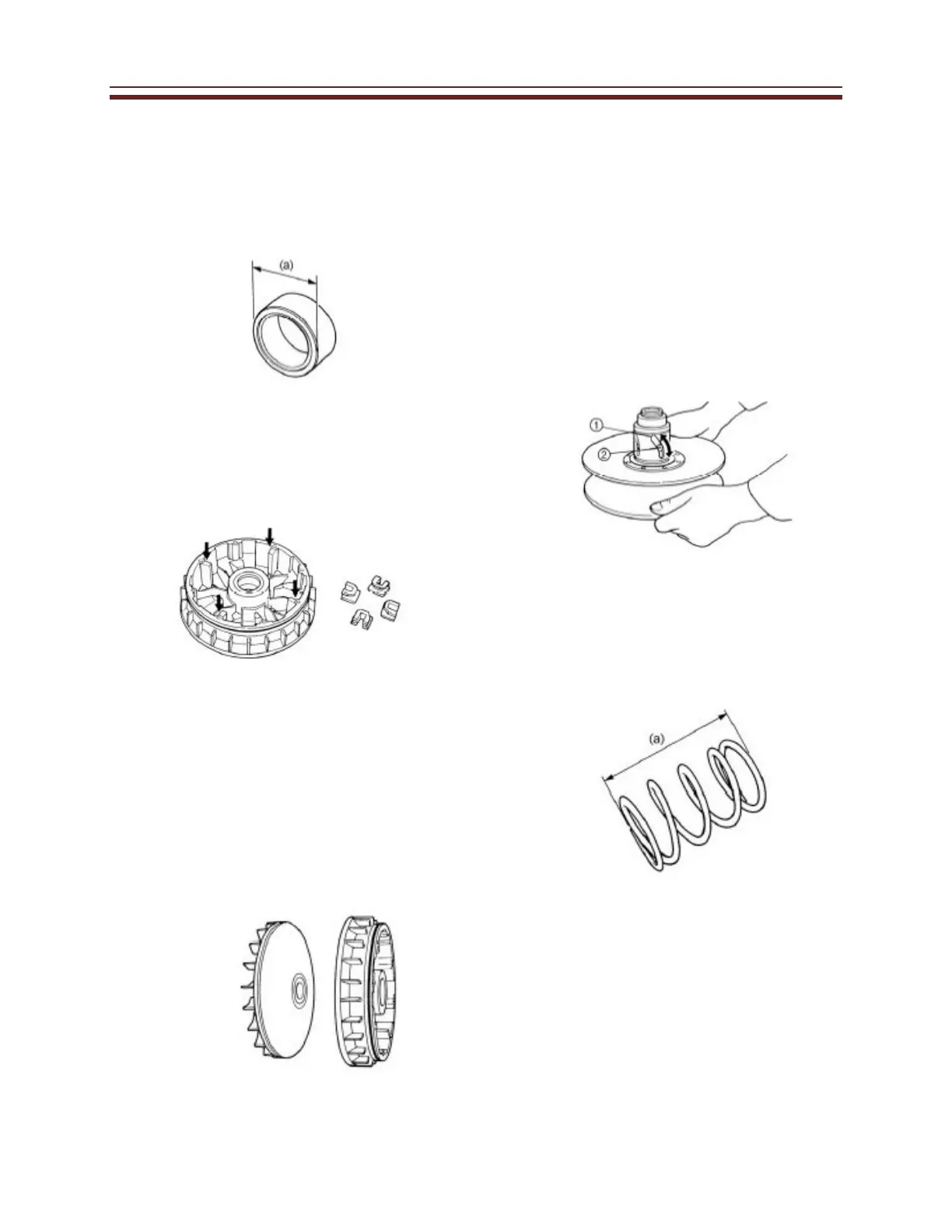

Engine
1.
Inspect
•
Primary sheave outside
diameter (a).
Check outside diameter wear limit:
29.5 mm
•
Primary pulley slider
•
Primary sliding sheave
splines
Look for wear cracks or
damage.
•
Spacer
•
Primary pulley cam
Look for cracks or damage.
•
Primary sliding sheave
•
Primary fixed sheave
Look for cracks or damage.
2.
Inspect the Secondary sheave
•
Secondary fixed sheave
•
Secondary sliding sheave
Look for smooth operation,
scratches or damage,
If replacement is necessary
replace as a set.
Look at torque cam grooves
(1)
and Guide pins (2) for
damage or wear.
3.
Inspect secondary sheave spring
•
Measure spring free
length(a)
Look for any damage
