Cub Cadet Challenger 750 - Clutch

4‐27
Engine
Clutch
No.
Part Name
Qty
Remarks

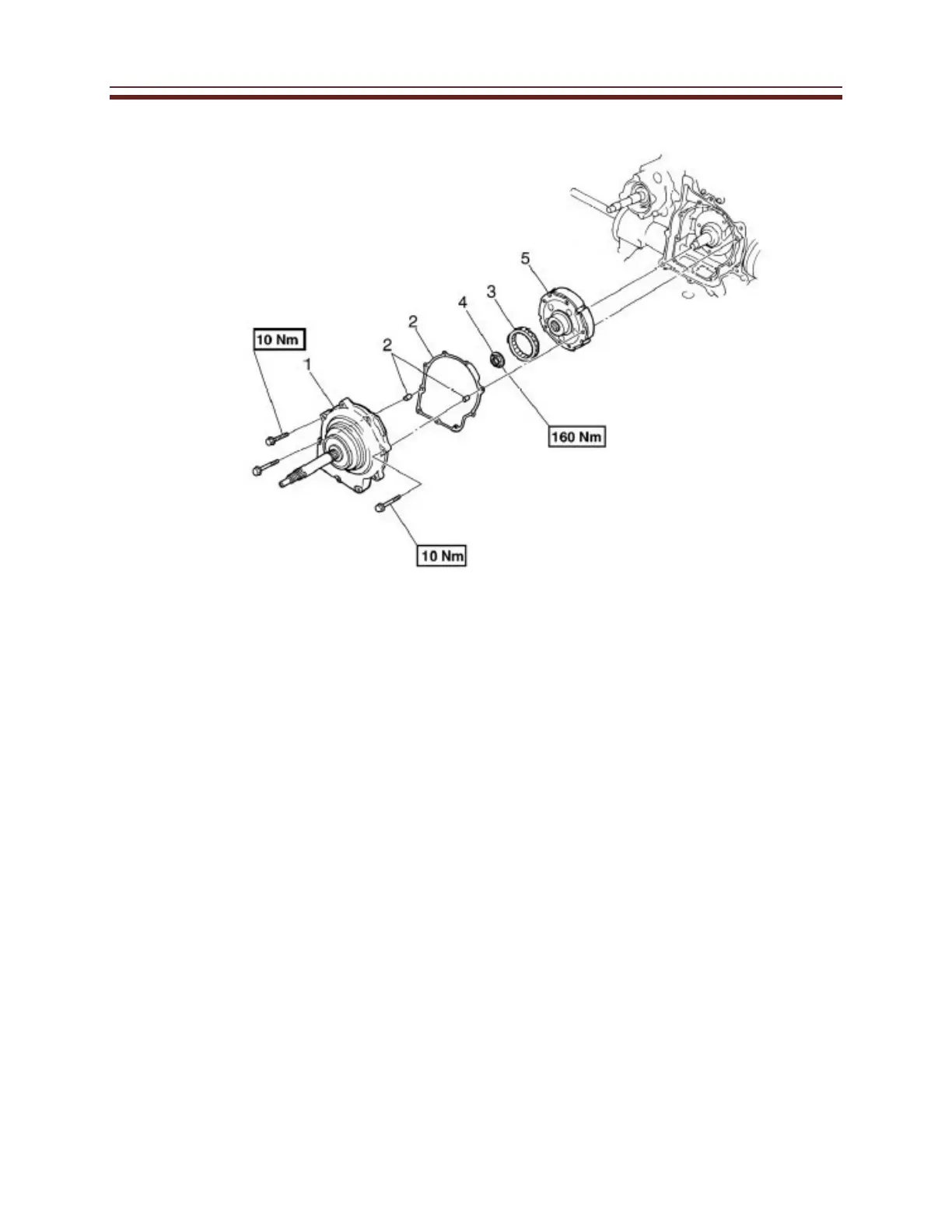

Removing the clutch
Remove the parts in the order listed
Primary and secondary sheaves
1
Clutch housing assembly
1
2
Gasket / dowel pin
1 / 2
3
One-way clutch bearing
1
4
Nut
1
Apply High strength (red) thread locker
and stake nut to crankshaft.
5
Clutch carrier assembly
1
For installation, reverse the order listed
