Cub Cadet Challenger 750

To Next Page

To Previous Page

5‐30

Chassis

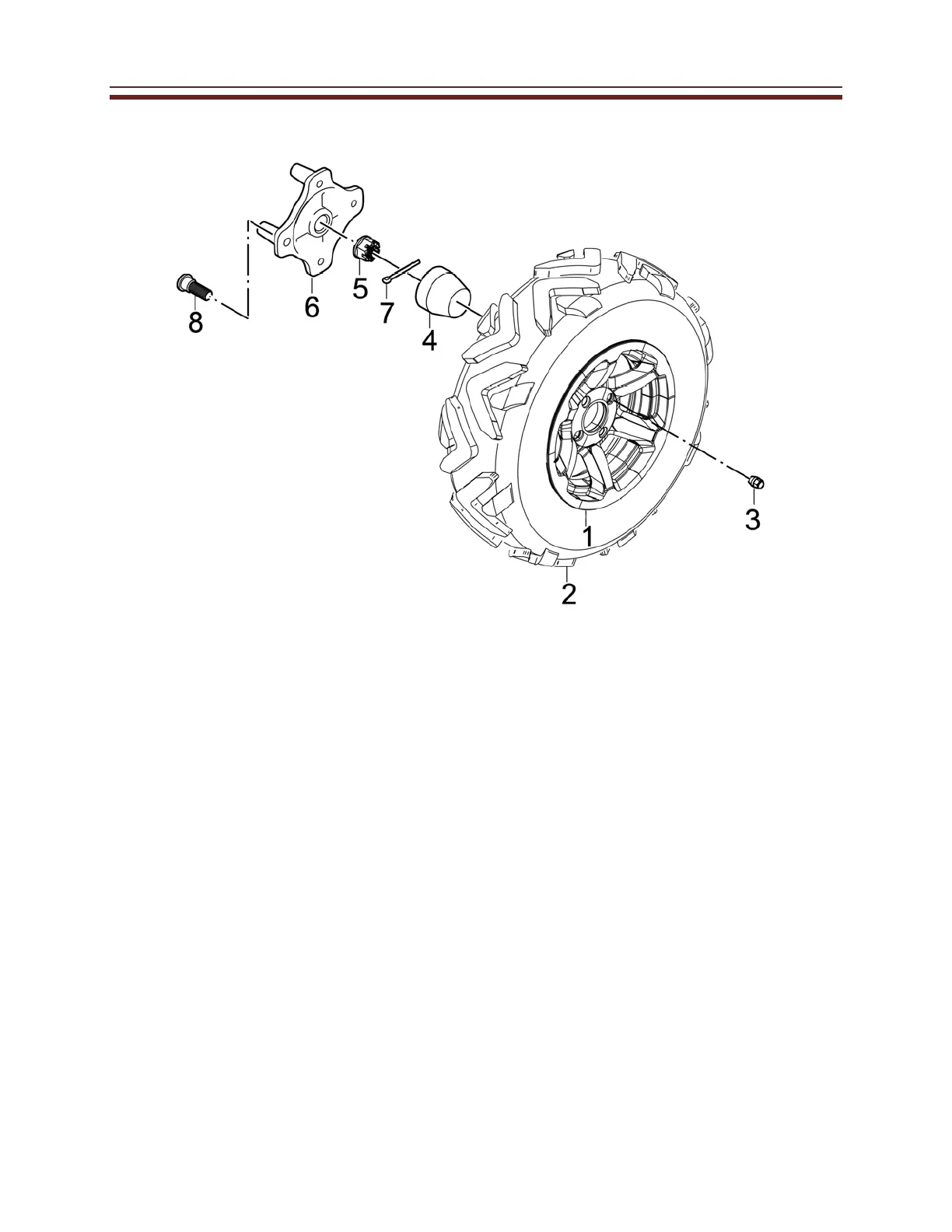

Front Wheel and Tire

No.

Part Name

Removing the front wheel

Front rim

Qty

Remarks

Front tire

Nut M10

Wheel decoration cover

Nut M22×1.5

Front hub

cotter pin 3.2×50

Bolt M10×30
