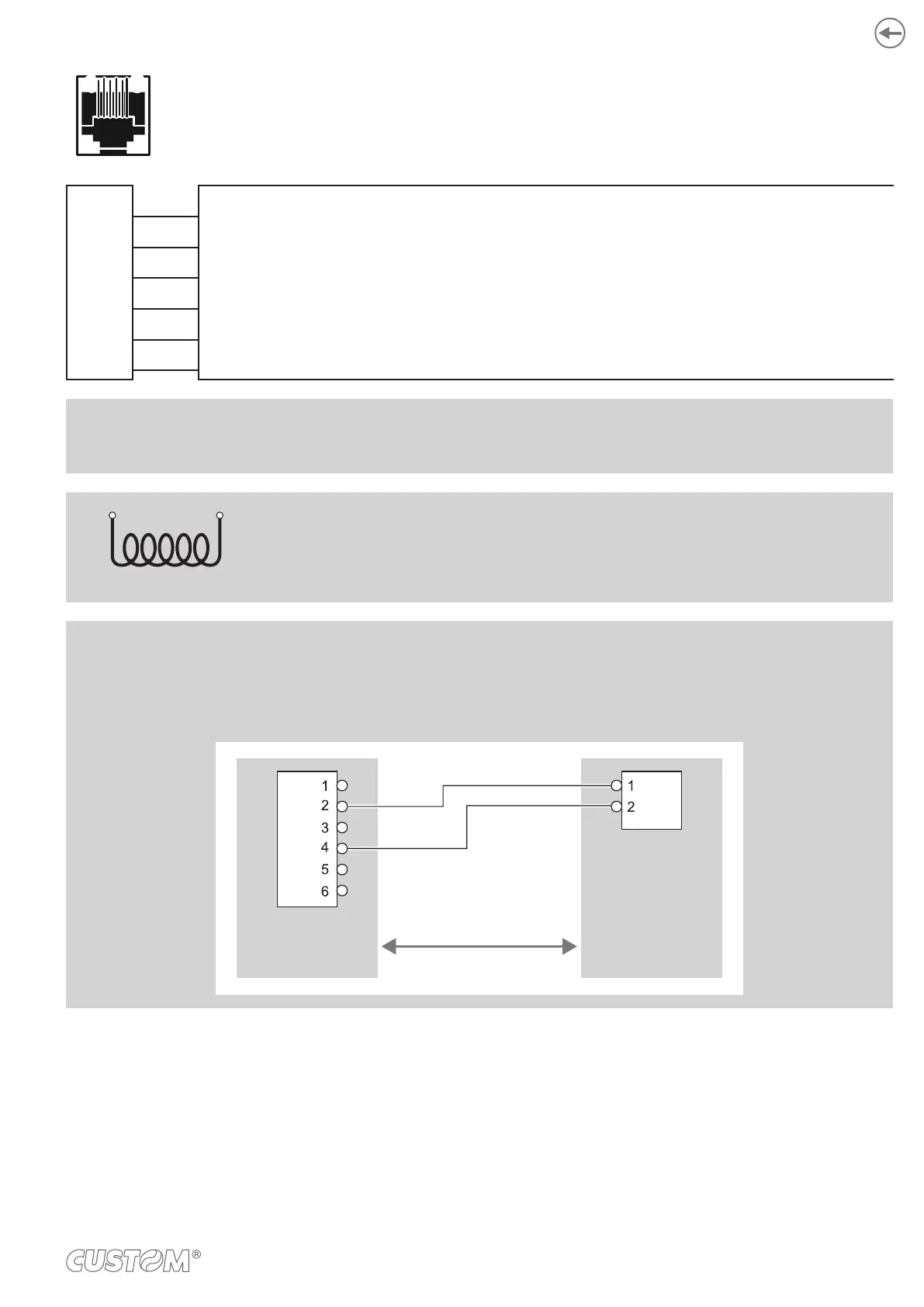

DRAWER CONNECTOR
Female RJ12 connector
J5
1
GND
2
SOLEN (out) Drawer 1 command
3
CASS (in) Drawer status
4
+24V TO
5
n.c.
6
GND
ATTENTION:
This device can manage drawers of power supplies 24 V. To prevent a current overload, check and set correctly the
kind of cash drawer.
PIN 2
PIN 4
NOTE:
The solenoid of the drawer 1 must be connected from Pin 2 to Pin 4 on the drawer connector
NOTE:
DEVICE > DRAWER (optional) connection
Use an optional adapter cable RJ12-Jack to connect the device to a drawer. Refer to the picture below for the connec-
tor pin signals:
DEVICE
JACK
RJ12
DRAWER
SOL
+24Vdc
(+)
(-)
