10.5

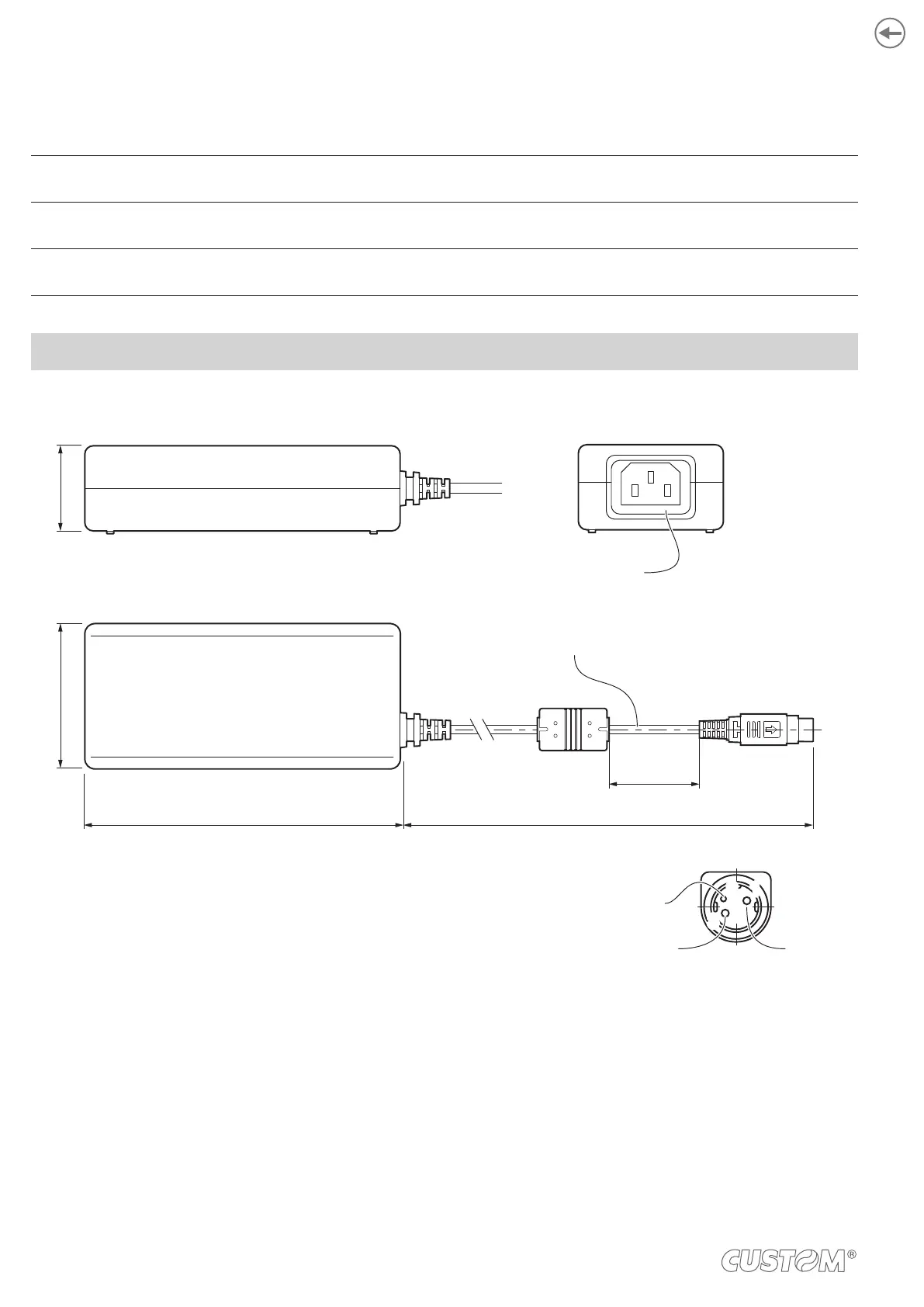

Dimensions of power supply
code 963GE020000046 (optional)
Length
127 mm
Height
35.5 mm
Width
56 mm
1500
39
DC OUTPUT WIRE
35.5
1
2
3
n.c.
GND
+24V
56
127
AC INLET
88
87
89
