MAINTENANCE
9.1

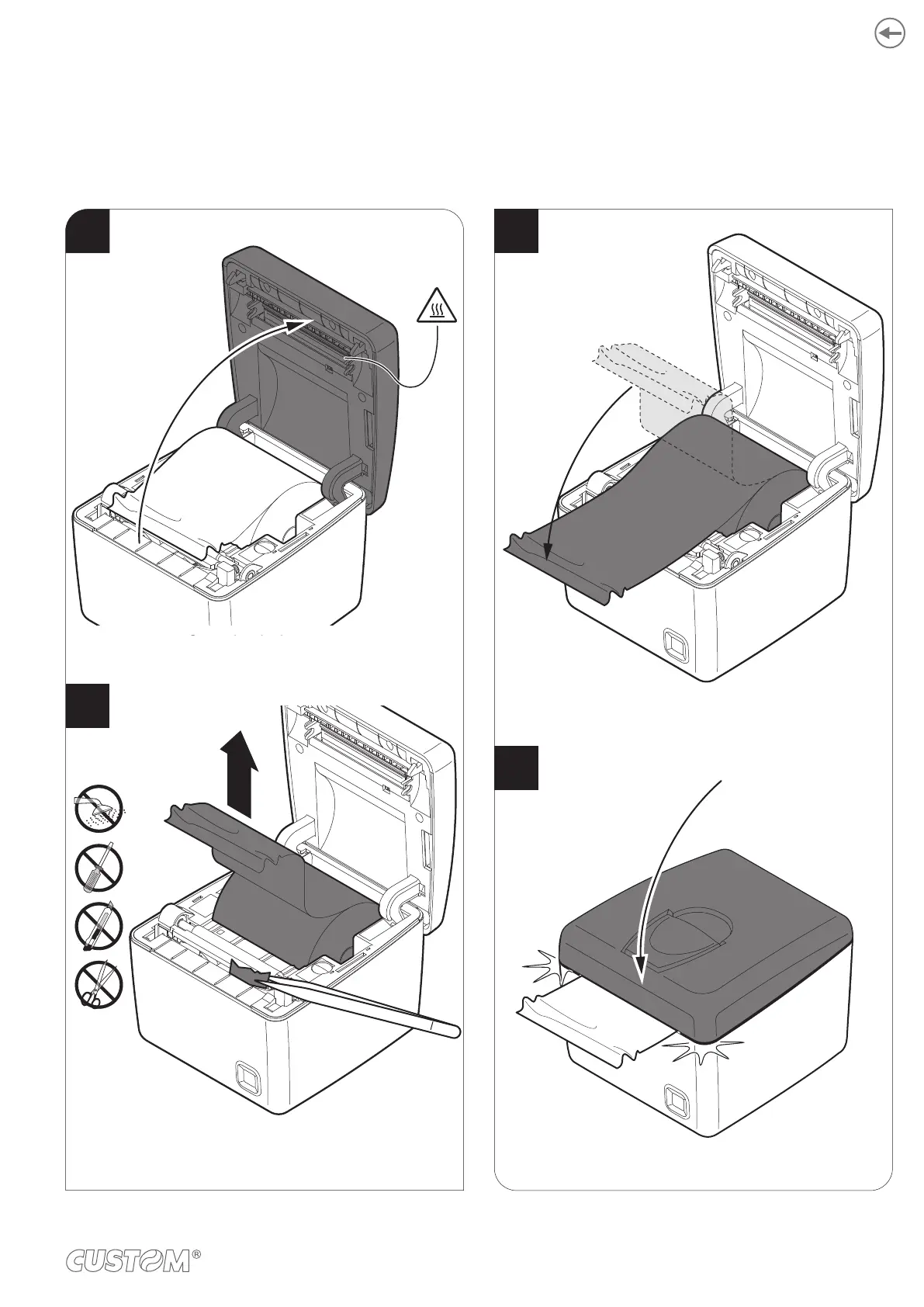

Paper jam
1
3
4
2
Close the cover
.
Lift the damage paper
,
check and remove possible scraps of paper
along the cutter path.
Pull the paper in order to have the damaged part
outside the device.
O
p
e
n
t
h
e
d
e
vi
ce
co
ve
r
(se
e
p
a
ra
g
ra
p
h
5
.
2
).
Open the device cover
(see
paragraph 5.2
).
75
74
76
Table of Contents
Default Chapter
7
Table of Contents
7
1 Introduction
9
2 Identification of the Models
11
3 Description
13
Box Contents
13
Device Components: External Views
14
Device Components: Internal View
16
Product Label
17
Key Functions: Power up
18
Key Functions: Standby
19
Status Lashes
20
4 Installation
23
Connections
23
Pinout
25
Rs232 Serial Interface
26
Power Supply
28
Ethernet Interface
29
Driver and SDK
31
5 Operation
33
Switch the Device ON/OFF
33
Opening Cover
34
Loading the Paper Roll
35
6 Configuration
37
Coniguration by Keys
37
Printer Setup
38
Configuration Parameters
38
Coniguration by Software
42
Device Status
43
Communication Parameters
44
Operating Parameters
47
Alignment Parameters
49
Hexadecimal Dump
50
7 Wireless Communication
51
Bluetooth Pairing with Windows Devices
51
Bluetooth Pairing with Macos Devices
54
Bluetooth Pairing with Linux Devices
56
Bluetooth Pairing with Android Devices
58
Bluetooth Pairing with Ios Devices
60
Bluetooth Pairing with Windows Phone Devices
62
Communication with Wi-Fi Devices
64
8 Alignment
65
Enable Alignment
66
Calibration
68
Alignment Parameters
70
Printing Area
73
9 Maintenance
75
Paper Jam
75
Planning of Cleaning Operations
76
Cleaning
77
Firmware Upgrade
80
10 Specification
81
Hardware Speciications
81
Character Speciications
84
Device Dimensions
85
Power Supply and Power Cord Dimensions
86
Dimensions of Power Supply
88
Paper Speciication
89
Character Sets in CUSTOM/POS Emulation
90
11 Consumables
93
12 Accessories
95
13 Technical Service
97
