8. Repeat steps 1 through 7 for the right side.

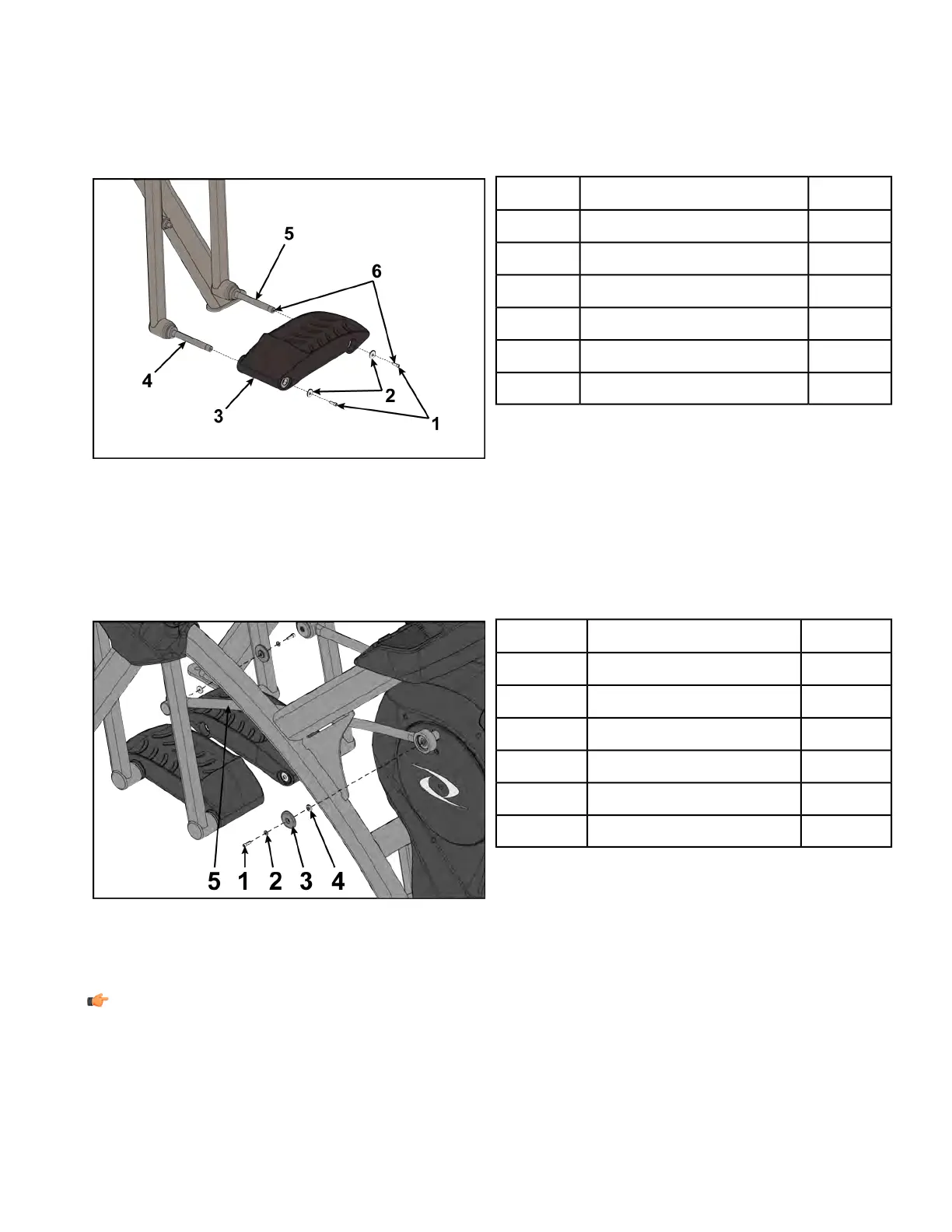

Install foot plate assembly
1. Slide foot plate onto the foot plate shafts.
Qty.DescriptionItem
2SHCS1
2Washer2
1Foot plate3
1Front foot plate shaft4
1Rear foot plate shaft5
1Loctite
®
#2426
2. Place a drop of loctite on each SHCS.
Place another drop of loctite in each shaft (where the SHCS will be tightened into).
3. Install both washers and both SHCS using a 5/32” Allen wrench.
Install linkage rod
1. Place linkage in correct position. Retaining ring faces away front crank arm.
Qty.DescriptionItem
2SHCS1
2Flat washer2
2Cap3
2Spacer4
1Linkage rod5
1Loctite
®
#2426
2. Place a drop of loctite on SHCS and place another drop of loctite into shaft (where the SHCS will
be tightened into).
3. Install spacers, caps, flat washers, SHCS using a 3/16" Allen wrench.
NOTE: SHCS must be tightened to a minimum of 90 lbs-in.
Complete Installation
Operate the unit at all levels to verify proper operation.
Page 114 of 202
Cybex 772A, 772AT Arc Trainer Part Number
