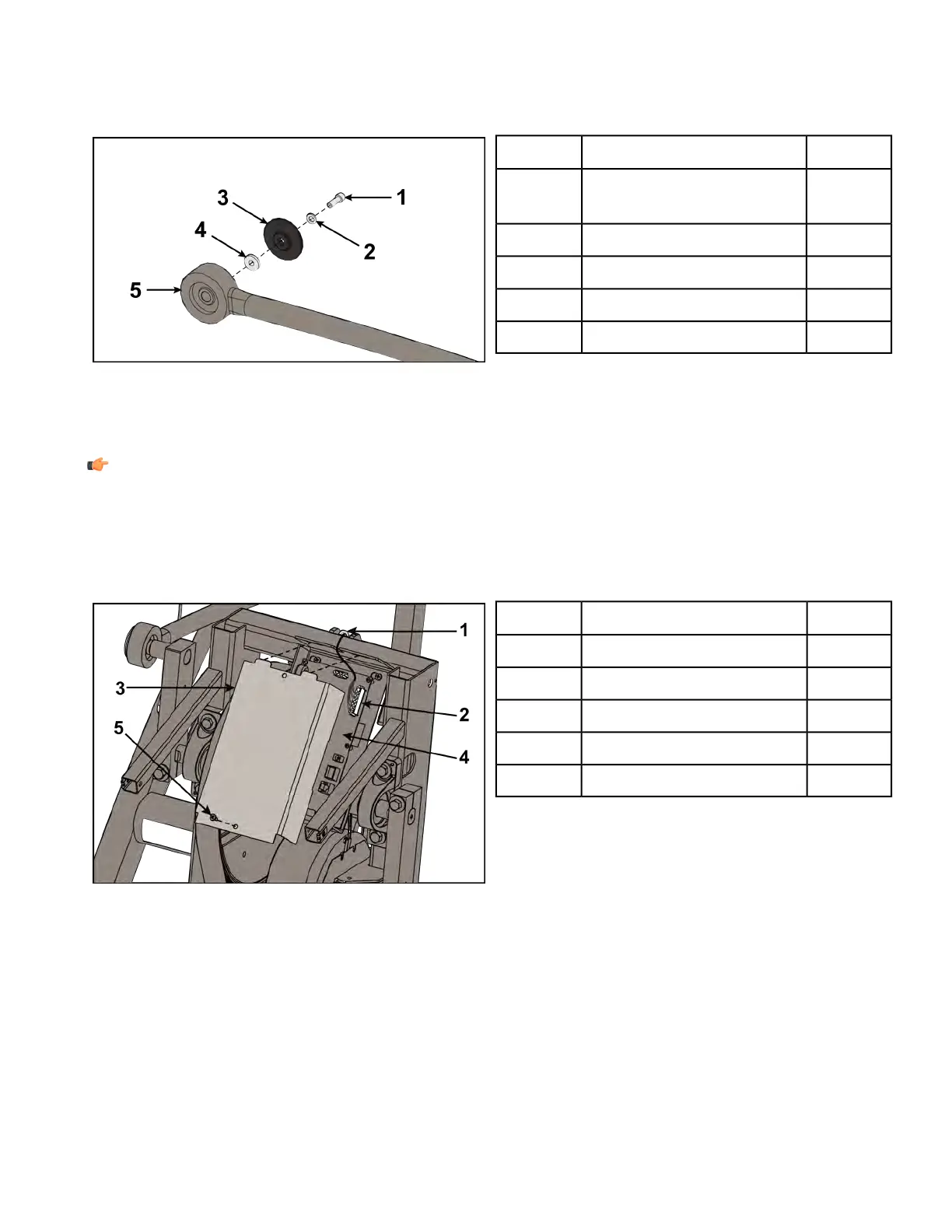

Install linkage rods
1. Install linkage rod on crank arm.
Qty.DescriptionItem
1
Screw, SHCS .250-20 x
.75
1
1Flat washer2
1Cap3
1Spacer4
1Linkage rod5
2. Place a drop of Loctite
®
#242 on SHCS and place another drop of Loctite
®
#242 into the threads of
the shaft.
3. Install SHCS, flat washer, cap and spacer using a 3/16" Allen wrench.
NOTE: SHCS must be tightened to a minimum of 90 lbs-in.
4. Repeat steps for other linkage rod.
Install controller cover
1. Plug incline motor cable into control board.
Qty.DescriptionItem
1Cable tie1
1Incline motor cable2
1Controller cover3
1Control board4
1Screw5
2. Place the controller cover into position.
3. Install screw securing the cover in place using a Phillips screwdriver.
Page 134 of 202
Cybex 772A, 772AT Arc Trainer Part Number
