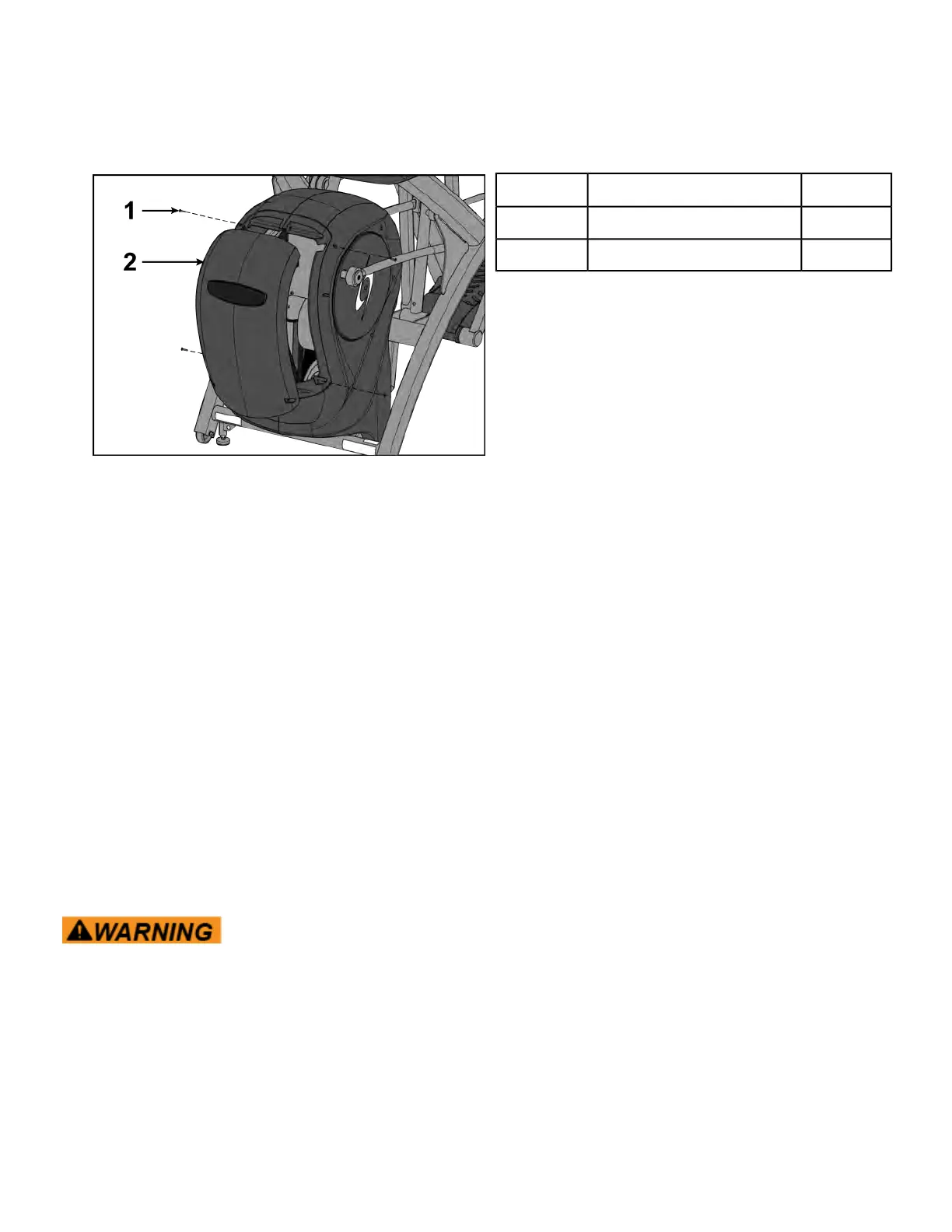

Install front access cover
Do not over tighten screws.
1. Place front access cover in place.
Qty.DescriptionItem
4Screw1
1Front access cover2
2. Install screws using a Phillips screwdriver.
Complete Installation
Operate the unit at all levels to verify proper operation.
Lower Pulley Assembly
Tools Required:
• 3/16” Allen wrench
• Phillips screwdriver
• Long Phillips screwdriver
• 1/2” Socket wrench
• 9/16” Socket wrench
• Loctite
®
#242
• Straight edge
• Torque wrench, with 9/16" socket and 3/16" Allen wrench
• Clean cloth (2)
Disconnect power source
Unplug the power cord from the power outlet.
Shock and electrocution hazard.
• Unplug unit and let sit 10 minutes before cleaning or performing
maintenance.
• Electrical charge can remain in unit after unplugging.
• Keep water and liquids away from electrical parts.
Page 135 of 202
Cybex 772A, 772AT Arc Trainer Part Number
To Next Page
