Qty.DescriptionItem
2Screw1
1Incline motor cover2

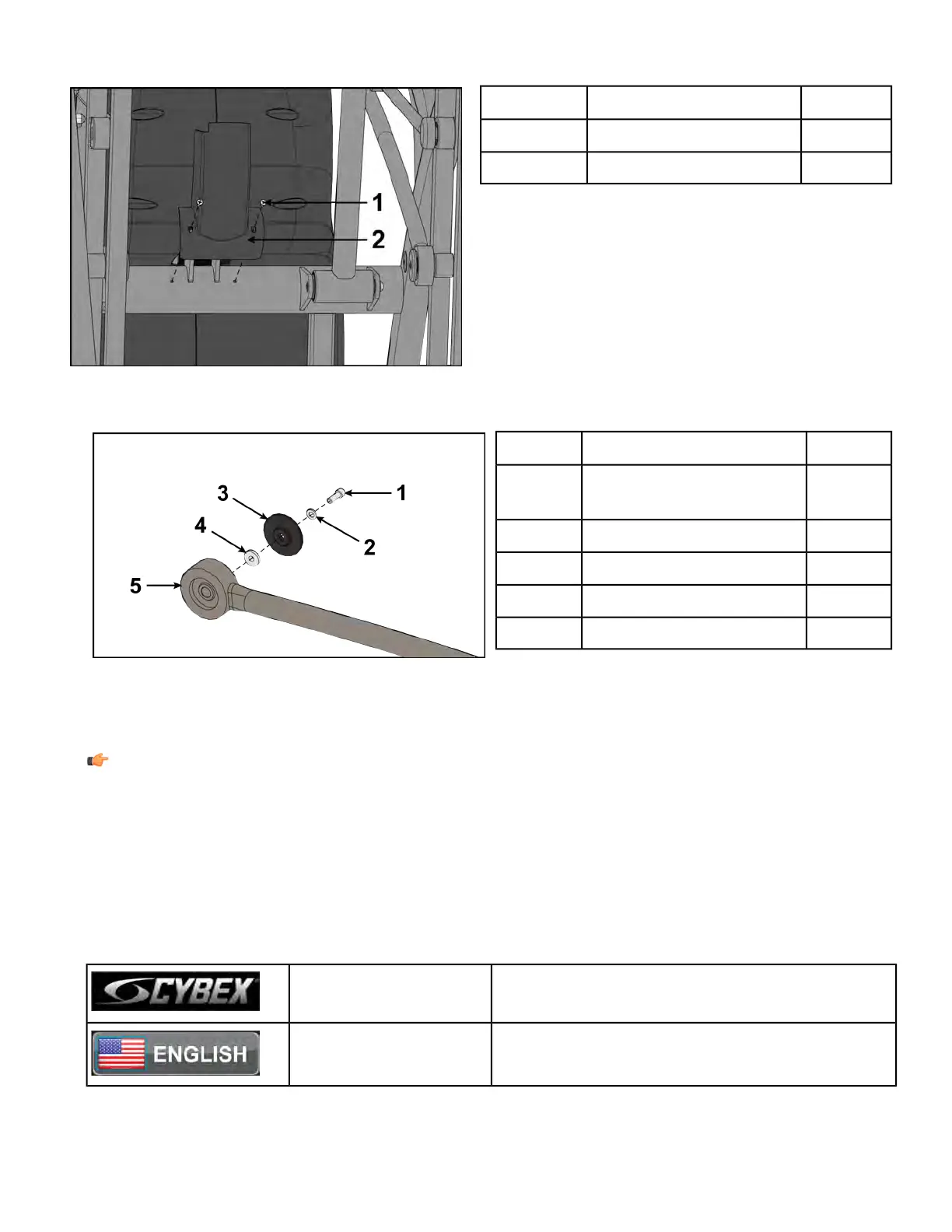

Install linkage rod
1. Install linkage rod on crank arm.
Qty.DescriptionItem
1
Screw, SHCS .250-20 x
.75
1
1Flat washer2
1Cap3
1Spacer4
1Linkage rod5
2. Place a drop of Loctite
®
#242 on SHCS and place another drop of Loctite
®
#242 into the threads of
the shaft.
3. Install SHCS, flat washer, cap and spacer using a 3/16" Allen wrench.
NOTE: SHCS must be tightened to a minimum of 90 lbs-in.
Plug in power cord
Plug power cord into power outlet.
Calibrate Incline motor 770A
1. Hold the handrails to steady self while stepping into the foot plates.
2. Begin striding.
Press and hold Cybex logo for 6 seconds to ac-
cess Screen Lock and Toolbox.
CYBEX LOGO
Press and hold language logo for 6 seconds to
access Screen Lock and Toolbox.
LANGUAGE ICON
3. Tap the Access Toolbox icon to display the Access to Toolbox login screen.
Page 149 of 202
Cybex 772A, 772AT Arc Trainer Part Number
