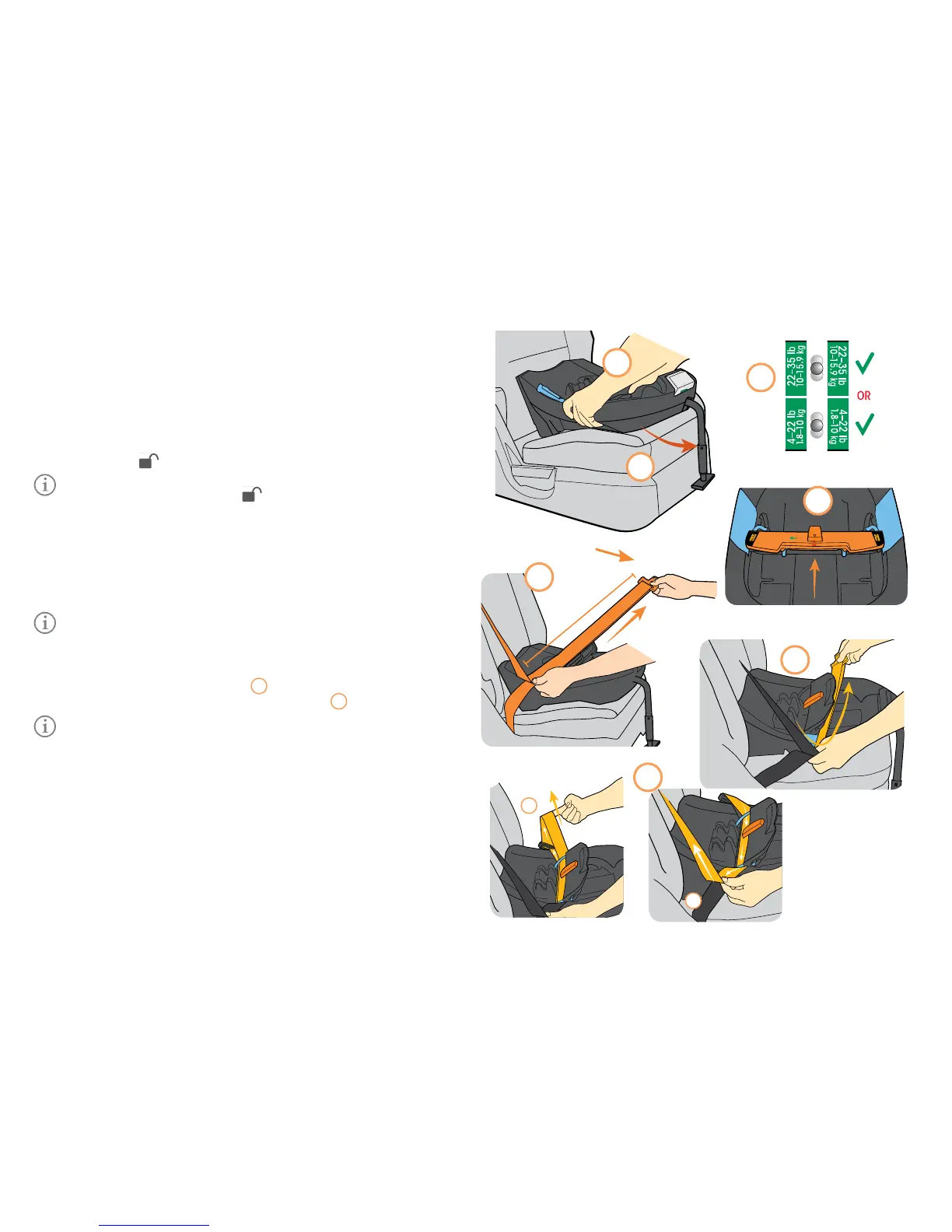

1. Unfold the Load Leg from underneath the Base.
2. Position Base on a rear vehicle seat. If a hump is present
on the oor of the vehicle, See page 27 for important
information on using the Load Leg in this seating position.
3. Adjust the Leveling Foot to achieve the correct range for your
child's weight as shown on the Level Indicator. See page 28.
4. Fully open Belt Tensioning Plate by turning the orange Locking
Lever to the
OPEN position and lifting up on the Plate.
Once open, the Belt Tensioning Plate will remain open on its own. The
Locking Lever should be in the OPEN position with the Plate open.
5. Pull out vehicle belt to form a single length of about 28
inches (60 cm). Hold the buckle Tongue in one hand and
squeeze the lap and shoulder belts together in the other.
6. Route the vehicle belts under the Belt Tensioning Plate, and
through the Belt Guides on both sides of the Base. BUCKLE
THE BELT. Make sure the belts lay at and are not twisted.
The vehicle belt should ALWAYS be routed UNDER the tab on the Belt
Guide. NEVER place a vehicle belt over the tab on the Belt Guide, even in
a vehicle with longer buckle stalks.
7. On the buckle side, rst lift up on the shoulder belt
to remove slack in the lap belt
a
. Then remove slack
from the shoulder belt on the opposite side
b
.
At this point, only remove slack from the vehicle belts, being careful not
to over tighten them. The Belt Tensioning Plate will tighten the system
fully. If you have previously installed the seat using LATCH, make sure
the LATCH Strap lies at on the bottom of the Base. See "To Store"
section on page 26.
31
24 inches
60 cm
Front of vehicle
a
b
2
3
4
5
1
6
7
INSTALLING THE BASE USING A LAP AND SHOULDER BELT
