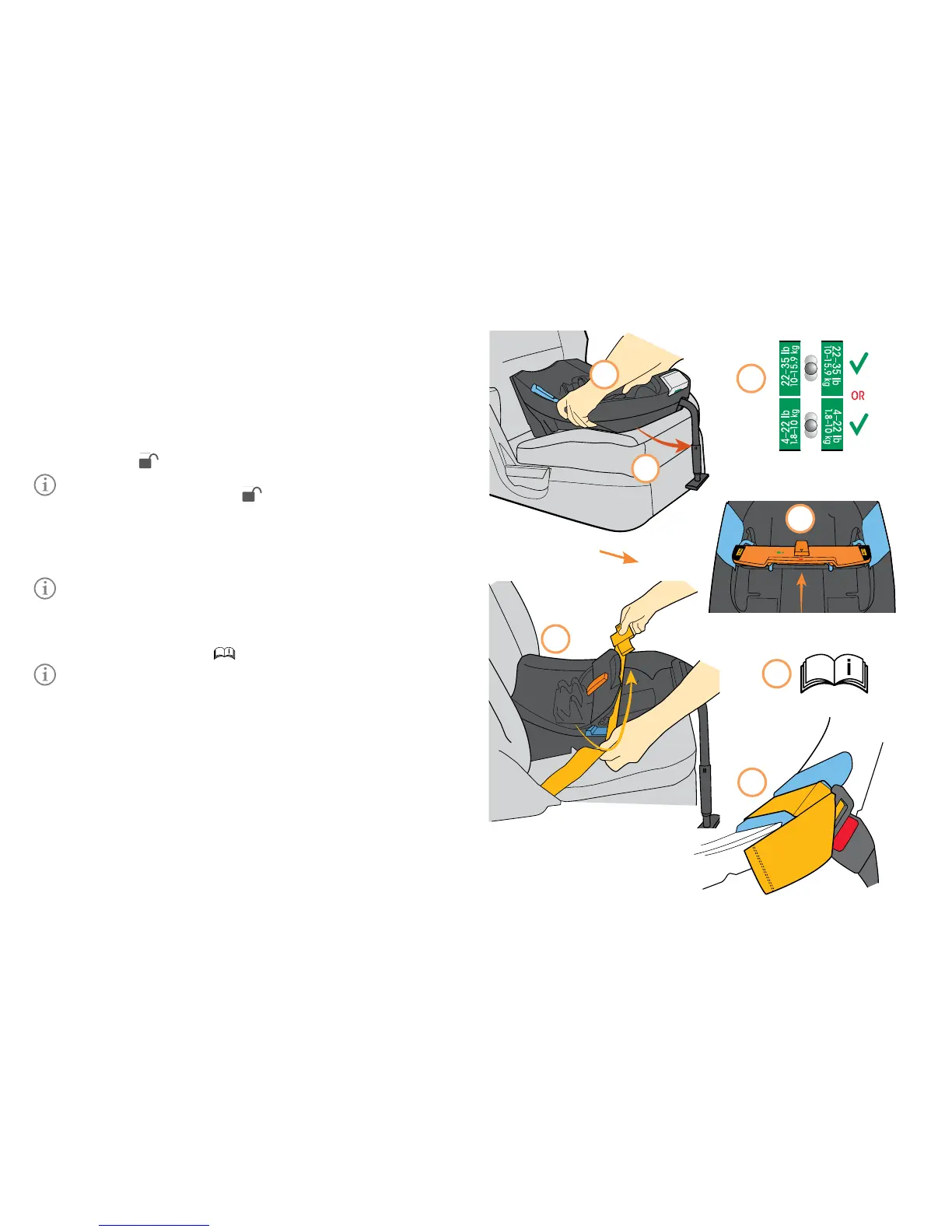

1. Unfold the Load Leg from underneath the Base.
2. Position Base on a rear vehicle seat. If a hump is present
on the oor of the vehicle, See page 27 for important
information on using the Load Leg in this seating position.
3. Adjust the Leveling Foot to achieve the correct angle for your
child's weight as shown on the Level Indicator. See page 28.
4. Fully open Belt Tensioning Plate by turning the orange Locking
Lever to the
OPEN position and lifting up on the Plate.
Once open, the Belt Tensioning Plate will remain open on its own. The
Locking Lever should be in the OPEN position with the Plate open.
5. Route the lap belt under the Belt Tensioning Plate,
and through the Belt Guides on both sides of the base.
BUCKLE THE BELT. Remove slack from the lap belt
and make sure the belt lies at and is not twisted.
The vehicle belt should ALWAYS be routed UNDER the tab on the Belt
Guide. NEVER place a vehicle belt over the tab on the Belt Guide, even
in a vehicle with longer buckle stalks.
6. Make sure the vehicle lap belt is LOCKED. Refer to
vehicle Owner's Manual
for more information.
At this point, only remove slack from the vehicle belt. The Belt
Tensioning Plate will tighten the system fully. If you have previously
installed the seat using LATCH, make sure the LATCH Strap lies at on
the bottom of the Base. See "To Store" section on page 26.
7. Tuck the loose end of the lap belt under the base,
so it's out of the way and DOES NOT INTERFERE
with the closing of the Belt Tensioning Plate or the
connection of the Infant Carrier to the Base.
33
Front of vehicle
Loose end of lap belt
2
3
4
5
1
7
6
INSTALLING THE BASE USING A LAP BELT ONLY
