D-Link DAP-1520 User Manual

19D-Link DAP-1520 User Manual

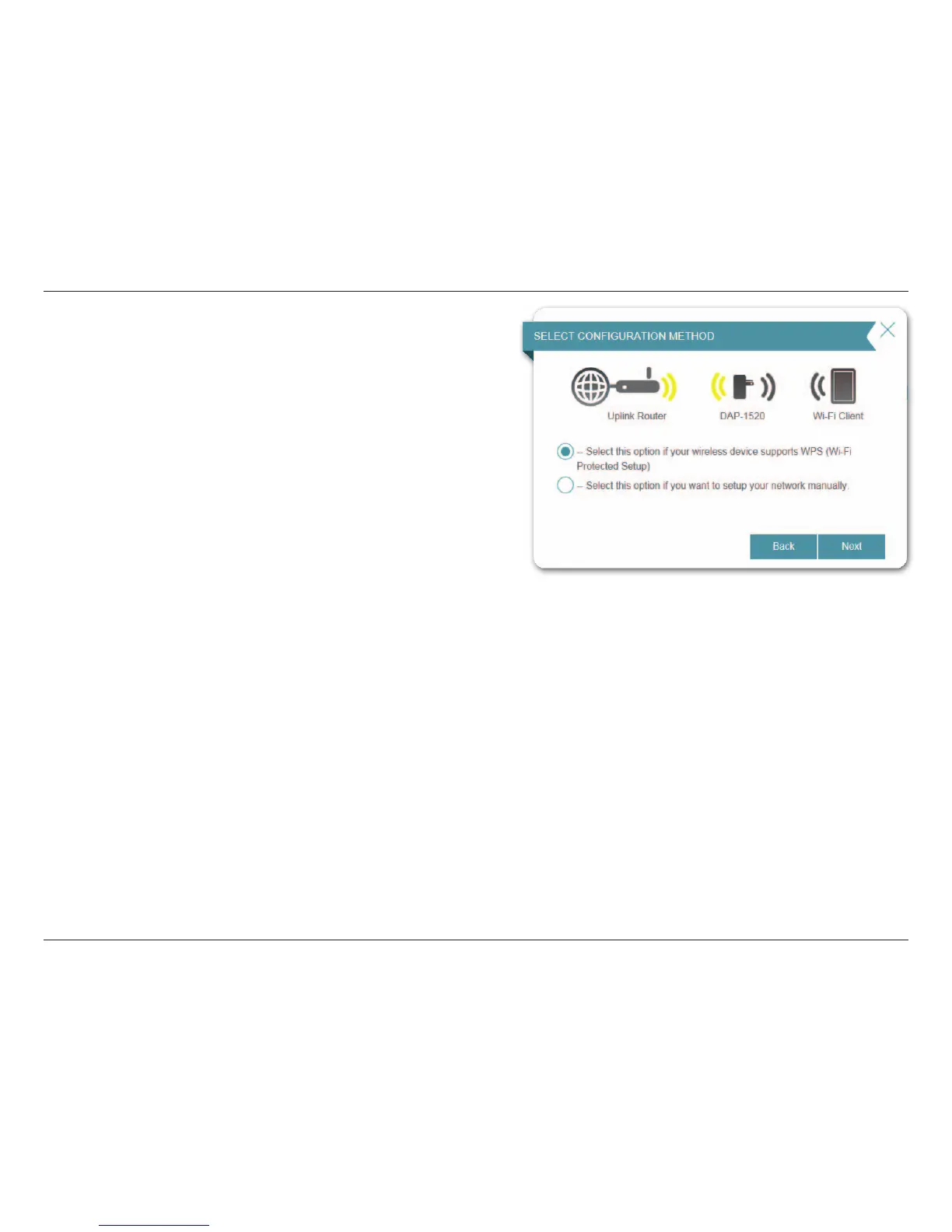

Section 3 - Conguration
If your devices support WPS (Wireless Protected Setup), select the
WPS conguration method and refer to “Using the WPS Method”
on page 20. Otherwise, select the manual method and refer to
“Using the Manual Method” on page 23.
Click Next to continue.

D-Link DAP-1520 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Certification	FCC, Wi-Fi, IC, CE, C-tick, EMI/EMC, UL
Product color	White
LED indicators	Status, WPS
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	58 mm
Width	92 mm
Height	34.2 mm
Weight	104 g
