D-Link DAP-1520 - Statistics

38D-Link DAP-1520 User Manual
Section 3 - Conguration

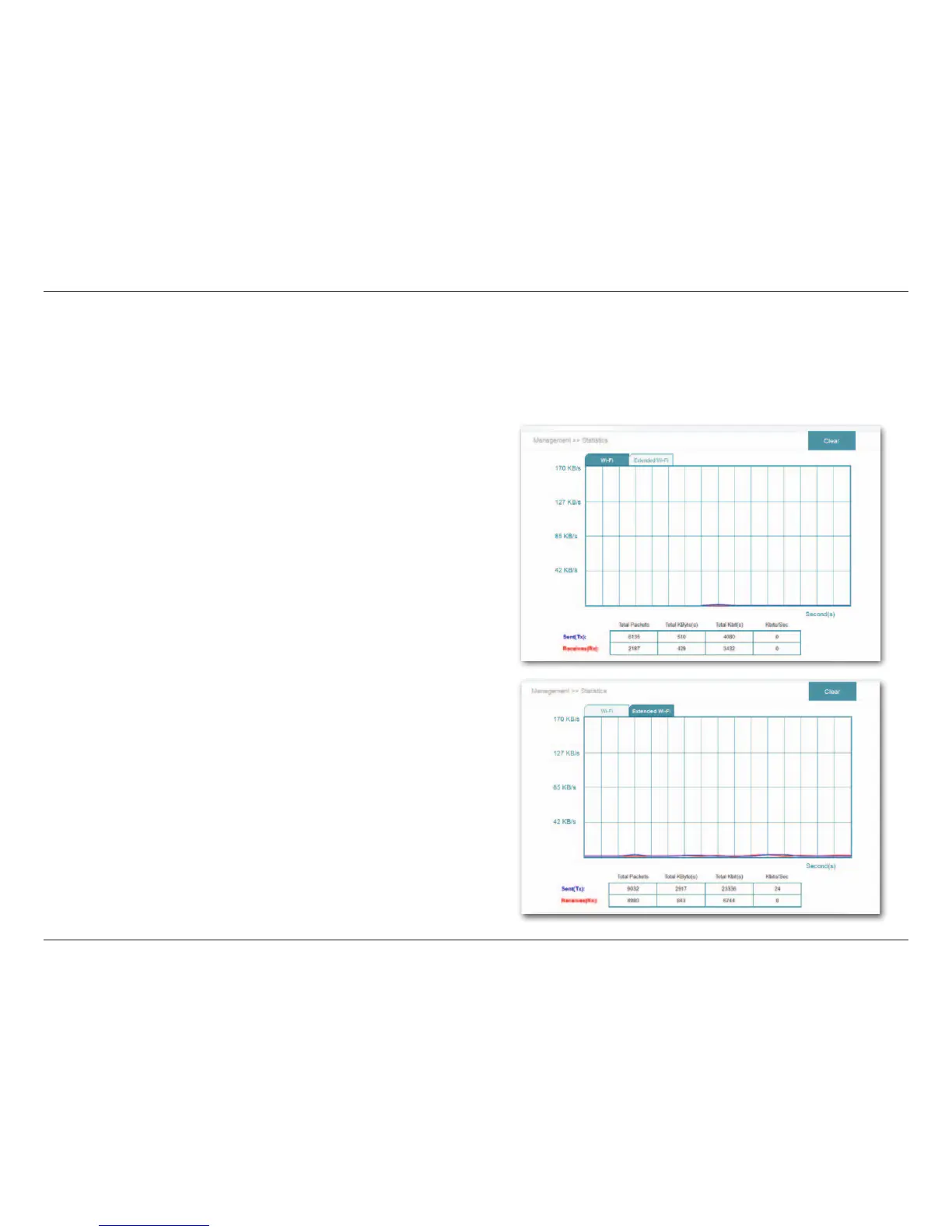

This page displays trac statistics for your Wi-Fi and and Extended Wi-Fi connections. From the Home page, click on the
Management drop-down menu at the top of the page, and select Statistics.
Statistics
The Blue line indicates the upload speeds and the red line indicates the
download speeds.
The table displays the following in real-time:
• Total Packets
• Total Byte(s)
• Total Kbit(s)
• Kbits/sec
Wi-Fi
Click on the Wi-Fi tab to display the trac statistics for the connection
between the DAP-1520 and the uplink router.
Extended Wi-Fi
Click on the Extended Wi-Fi tab to display the trac statistics for the
connection between the DAP-1520 and any connected clients.
Click Clear to reset the statistics.
