D-Link DAP-1520 User Manual

59D-Link DAP-1520 User Manual
Appendix B - Networking Basics
Windows® 8 Users
• Press the Windows key and then type IP. Click Settings on the right side and then click View Network Connections.
• Right-click on the adapter which represents your D-Link wireless network adapter.

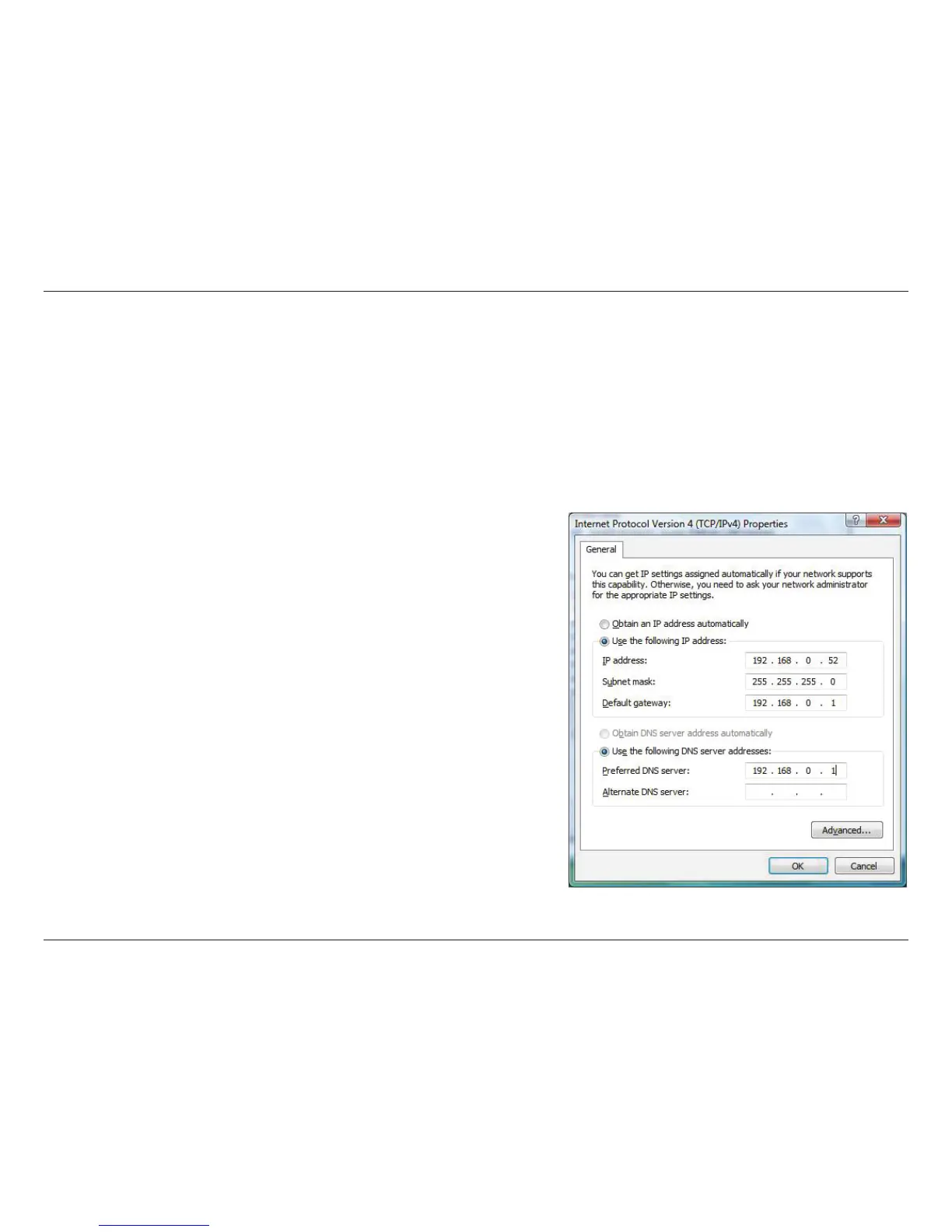

• Highlight Internet Protocol Version 4 (TCP /IPv4) and click
Properties.
• Click Use the following IP address and enter an IP address that is on
the same subnet as your network or LAN IP address on your router
or network.
Example: If the router’s LAN IP address is 192.168.0.1, make your IP
address 192.168.0.X where X is a number between 2 and 99. Make
sure that the number you choose is not in use on the network.
• Set Default Gateway the same as the LAN IP address of your router
or gateway.
• Set Primary DNS the same as the LAN IP address of your router or
gateway.
• The Secondary DNS is optional (you may enter a DNS server from
your ISP).
• Click OK to save your settings.
Statically Assign an IP Address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below:

D-Link DAP-1520 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Certification	FCC, Wi-Fi, IC, CE, C-tick, EMI/EMC, UL
Product color	White
LED indicators	Status, WPS
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	58 mm
Width	92 mm
Height	34.2 mm
Weight	104 g
