D-Link DAP-1520 User Manual

26D-Link DAP-1520 User Manual
Section 3 - Conguration

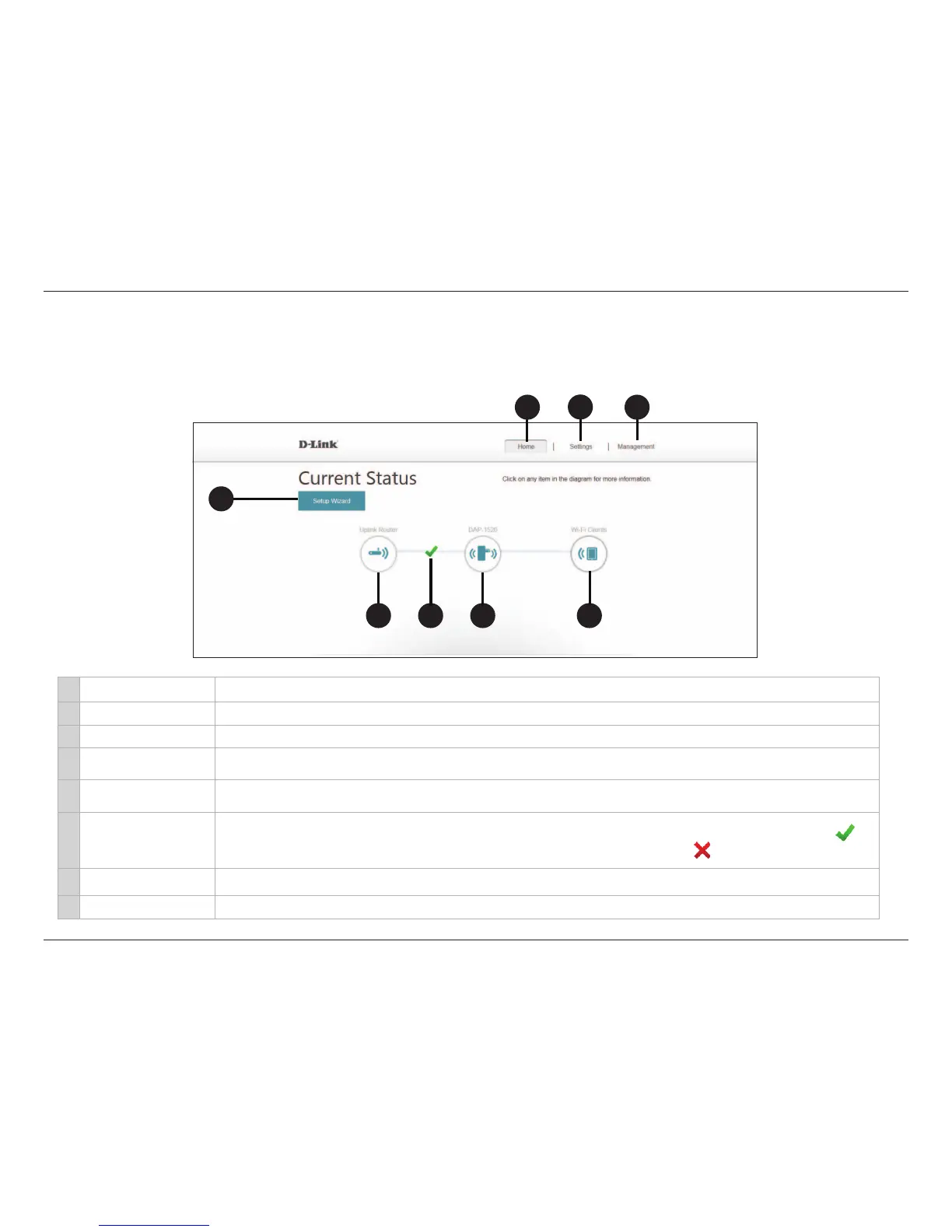

Home Screen
The Home screen shows the Current Status of devices connected to the DAP-1520. A green check mark between the Uplink
Router icon and the DAP-1520 icon indicates that there is an active connection. A red X indicates that there is no connection
present, or there is a connection error.
1 Setup Wizard Click to launch the Wi-Fi Connection Setup Wizard. Refer to “Setup Wizard” on page 18.
2 Home Click to navigate to the Current Status page (as shown above).
3 Settings Click to view or change your Wi-Fi, Extended Wi-Fi, and Network settings.
4 Management
Click to change the login password, upgrade rmware, view data trac statistics, save or load conguration
les, reboot, and restore the DAP-1520 back to the factory default settings.
5 Uplink Router
Click to display the network settings of the wireless network (if connected) or to connect to a network if not
connected.
6 Uplink Router Status
Displays the status of your connection to the wireless network you are “repeating”. A green check mark ( )
indicates a successful connection to your wireless router or access point. A red ( ) indicates no connection.
Click the Uplink Router icon to display a list of wireless networks you can connect the DAP-1520 to.
7 DAP-1520 Click to view the details for both the uplink router network and the extended Wi-Fi network.
8 Wi-Fi Clients Click to display a list of clients (devices) currently connected to the DAP-1520.
1
5 6 7 8
4
3
2

D-Link DAP-1520 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Certification	FCC, Wi-Fi, IC, CE, C-tick, EMI/EMC, UL
Product color	White
LED indicators	Status, WPS
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	58 mm
Width	92 mm
Height	34.2 mm
Weight	104 g
