D-Link DAP-1520 User Manual

9D-Link DAP-1520 User Manual
Section 2 - Installation
Installation

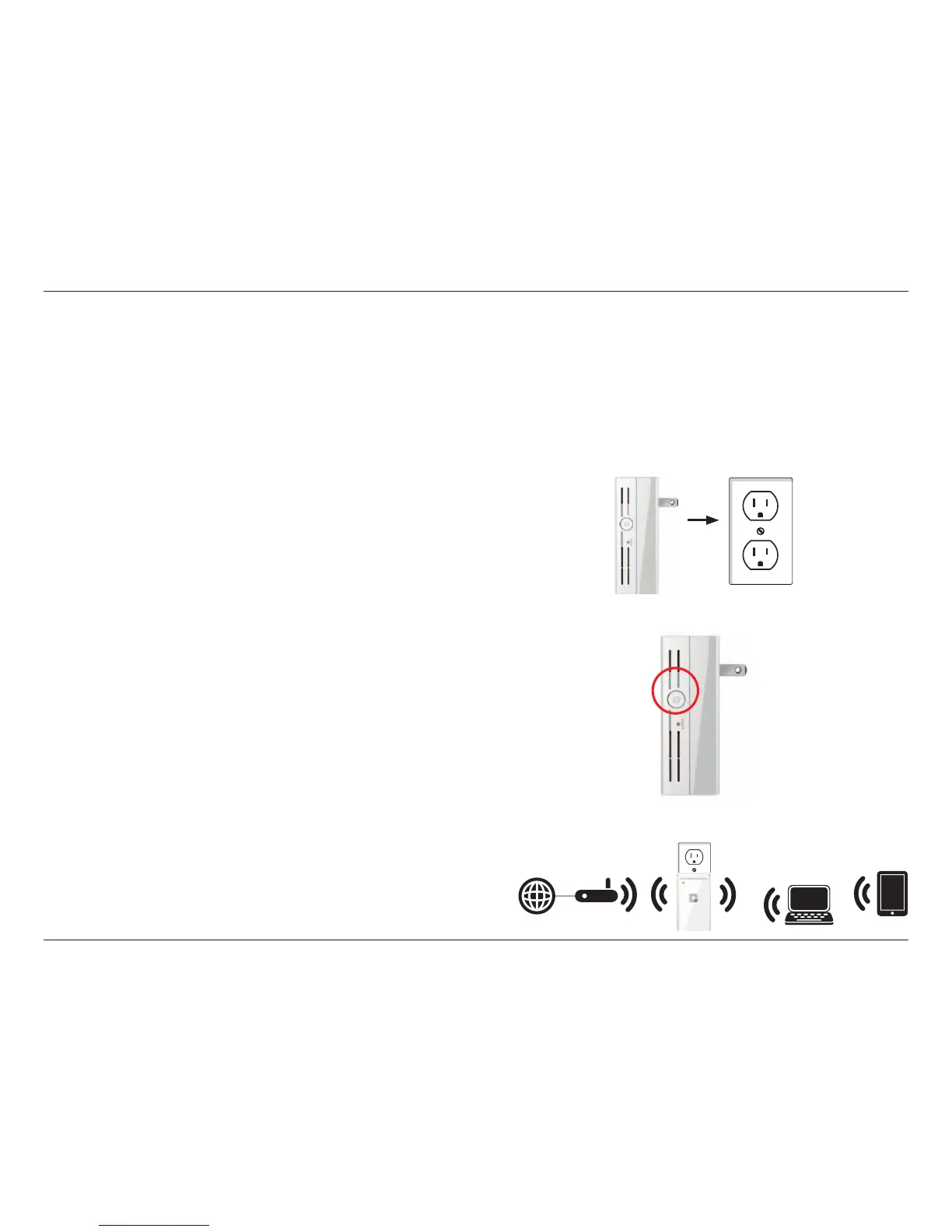

Connect the DAP-1520 to Your Router Using WPS
Find an available outlet near your wireless router. Plug in
the DAP-1520 and wait until the power LED is blinking
amber before continuing.
Within one minute, press the WPS button on the
DAP-1520. The Power/Status LED will start blinking
green. When the LED turns solid green, the DAP-1520
is connected securely to your wireless router or access
point.
The easiest and most secure way to connect your DAP-1520 to your router or access point is with WPS (Wi-Fi Protected Setup).
Refer to your user manual for your router or access point to make sure you understand how to enable WPS. Once you know,
follow the steps below:
Step 1 -
Step 3 -
Step 2 -
Press the WPS button on your wireless router or access
point.
Step 4 -
You can now unplug and move the DAP-1520 to a
location between your wireless router and the area where
you need to extend your wireless coverage.

D-Link DAP-1520 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Certification	FCC, Wi-Fi, IC, CE, C-tick, EMI/EMC, UL
Product color	White
LED indicators	Status, WPS
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	58 mm
Width	92 mm
Height	34.2 mm
Weight	104 g
