D-Link DAP-1520 User Manual

24D-Link DAP-1520 User Manual
Section 3 - Conguration

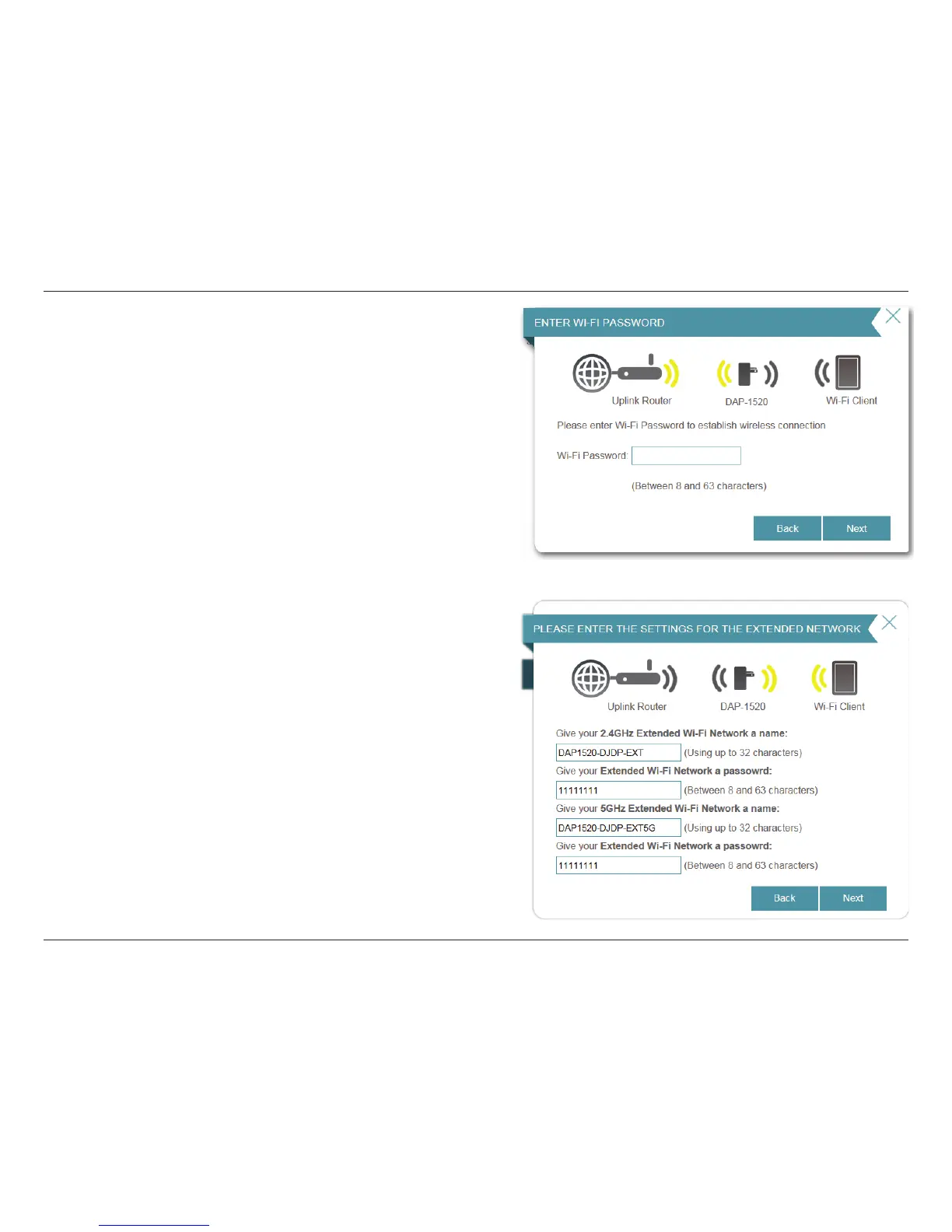

The DAP-1520 will re-broadcast the Wi-Fi connection from the
uplink router as Extended 2.4GHz and 5GHz Wi-Fi Networks. Enter
the Wi-Fi Network Name (SSID) and Password that you wish to
apply to each of the extended Wi-Fi networks.
Click Next to continue.
If the wireless network you selected is secure, you will be
prompted to enter the Wi-Fi Password.
Click Next to continue. Click Back to return to the previous step
if you need to select a dierent wireless network.

D-Link DAP-1520 Specifications

General

Type	Network transmitter & receiver
Maximum transfer distance	- m
Certification	FCC, Wi-Fi, IC, CE, C-tick, EMI/EMC, UL
Product color	White
LED indicators	Status, WPS
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2, WPS
AC input voltage	110-240 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	58 mm
Width	92 mm
Height	34.2 mm
Weight	104 g
