29D-Link DSL-2745 Wireless N300 ADSL2+ Modem Router User Manual
Section 4 - Conguration
PPPoE
Channel Mode: Select PPPoE.
VPI: Virtual path identifier (VPI) is the virtual path between two points
in an ATM network. Its valid value is between 0 and 255. Enter the
correct VPI provided by your ISP.
VCI: Virtual channel identifier (VCI) is the virtual channel between two
points in an ATM network. Its valid value is between 32 and 65535.
Enter the correct VCI provided by your ISP.
Encapsulation: Select the type of encapsulation your ISP uses, either Logical Link
Control (LLC) or Virtual Circuit Multiplexing (VC-Mux).
Enable NAPT: Check this box to enable NAT, which allows devices on your
network to share one public IP address.
Enable IGMP: Check to enable IGMP Multicast.
802.1q: Choose to either Disable or Enable the use of VLANs.
VLAN ID(1-4095): If you enabled 802.1q, enter the VLAN ID.
IP Protocol: Select the type of IP addressing: IPv4/v6, IPv4, or IPv6.
PPP Settings: Enter your PPP authentication information.

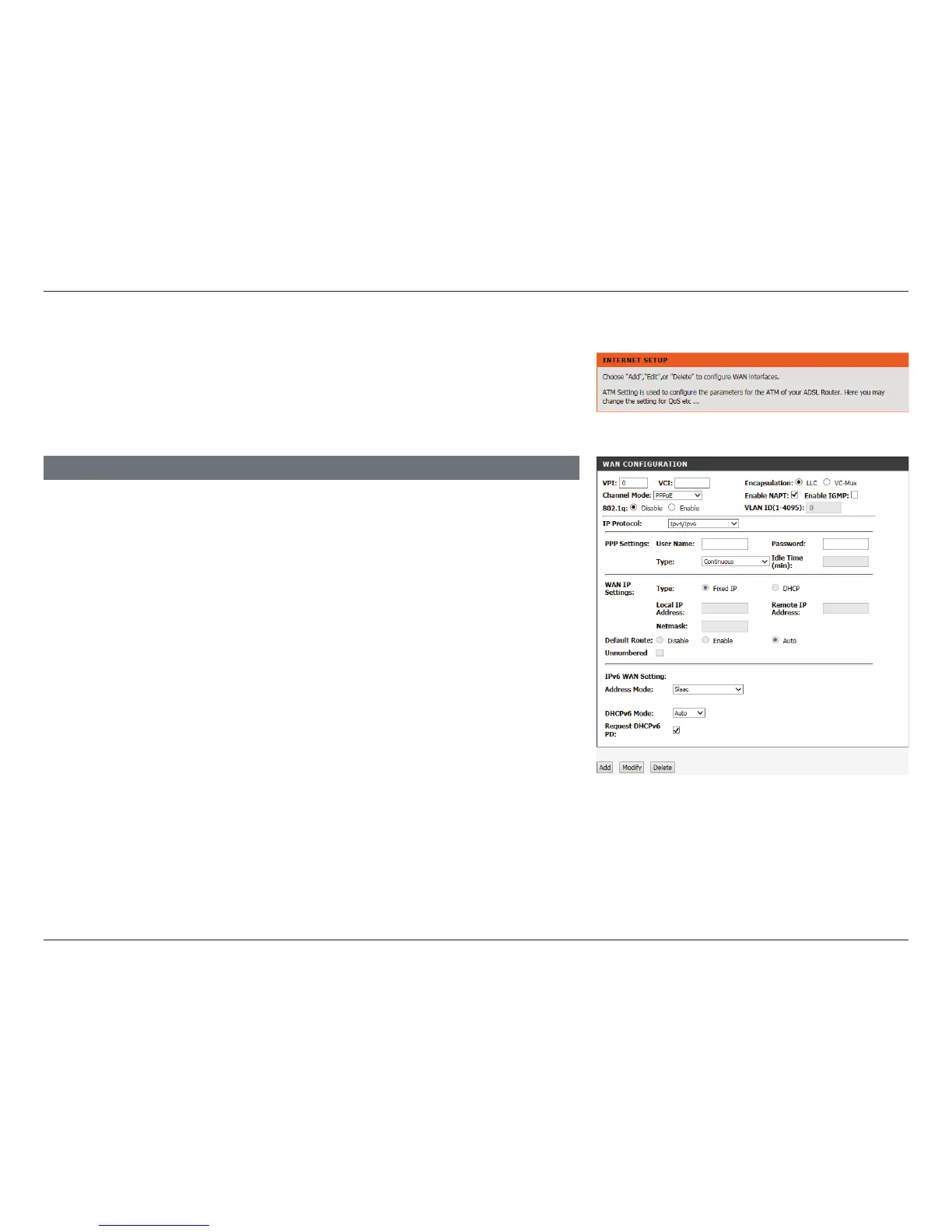

WAN CONFIGURATION
Create a New Connection
To set up your Internet Connection, use the WAN Conguration box. Begin by
selecting the channel mode or network encapsulation protocol your ISP uses,
then proceed to fill in the IP, PPP, and WAN IP parameters.
