31D-Link DSL-2745 Wireless N300 ADSL2+ Modem Router User Manual
Section 4 - Conguration
Channel Mode: Select PPPoA.
VPI: Virtual path identifier (VPI) is the virtual path between two points
in an ATM network. Its valid value is between 0 and 255. Enter the
correct VPI provided by your ISP.
VCI: Virtual channel identifier (VCI) is the virtual channel between two
points in an ATM network. Its valid value is between 32 and 65535.
Enter the correct VCI provided by your ISP.
Encapsulation: Select the type of encapsulation your ISP uses, either Logical Link
Control (LLC) or Virtual Circuit Multiplexing (VC-Mux).
Enable NAPT: Check this box to enable NAT, which allows devices on your
network to share one public IP address.
Enable IGMP: Check to enable IGMP Multicast.
802.1q: Choose to either Disable or Enable the use of VLANs.
VLAN ID(1-4095): If you enabled 802.1q, enter the VLAN ID.
IP Protocol: Select the type of IP addressing: IPv4/v6, IPv4, or IPv6. This will
effect the WAN IP Settings and WAN IPv6 Settings.
PPP Settings: Enter your PPP authentication information.
User Name: Enter your DSL account username provided by your ISP.
Password: Enter your DSL account password provided by your ISP.
Type: Select how your DSL-2745 connects to your ISP. Choose either
Continuous, Connect on Demand, and Manual.

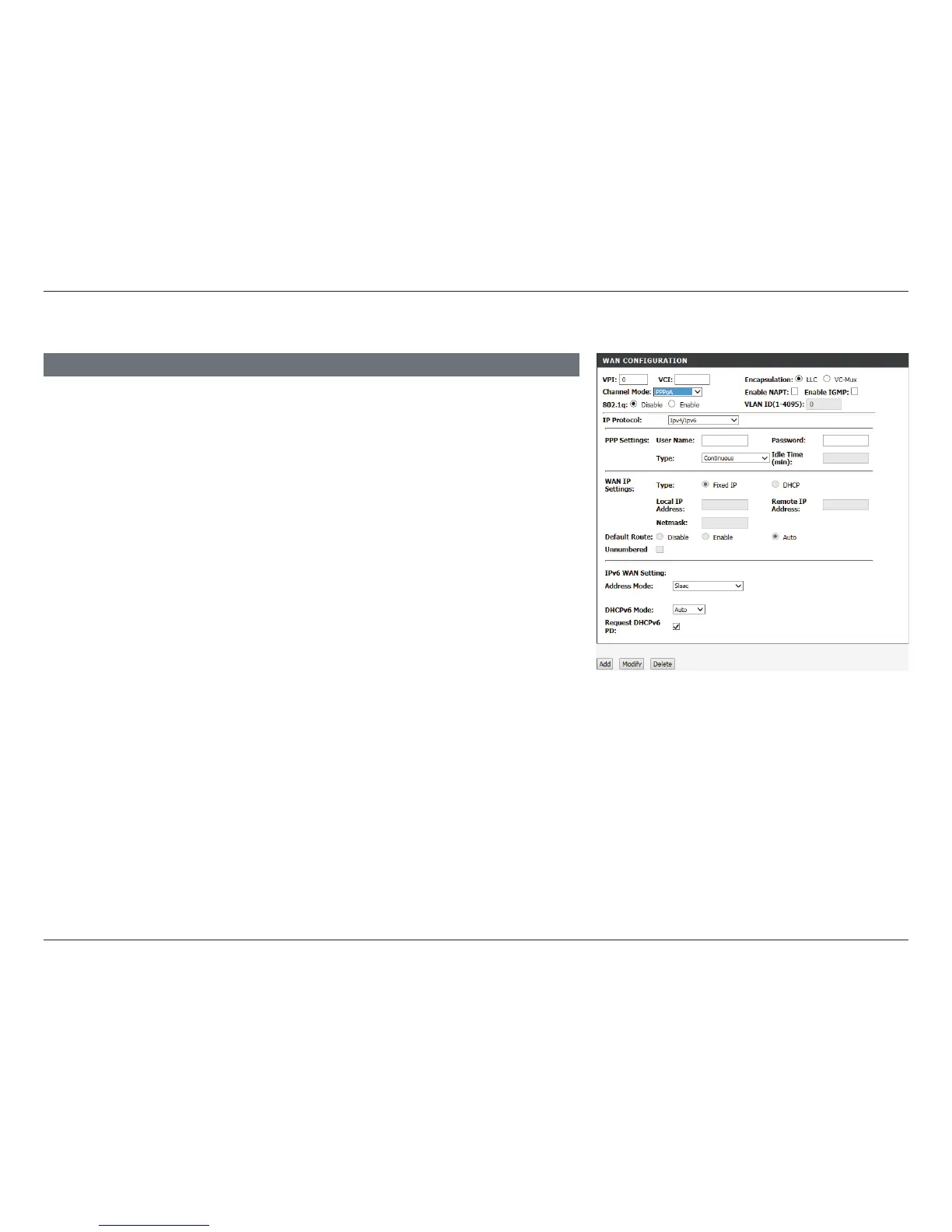

WAN CONFIGURATION
PPPoA Mode
