Section 4 - Conguration
Channel Mode: Select IPoA.
VPI: Virtual path identifier (VPI) is the virtual path between two points
in an ATM network. Its valid value is between 0 and 255. Enter the
correct VPI provided by your ISP.
VCI: Virtual channel identifier (VCI) is the virtual channel between two
points in an ATM network. Its valid value is between 32 and 65535.
Enter the correct VCI provided by your ISP.
Encapsulation: Only Logical Link Control (LLC) encapsulation is supported.
Enable NAPT: Check this box to enable NAT, which allows devices on your
network to share one public IP address.
Enable IGMP: Check to enable IGMP Multicast.
802.1q: Choose to either Disable or Enable the use of VLANs.
VLAN ID(1-4095): If you enabled 802.1q, enter the VLAN ID.
IP Protocol: Select the type of IP addressing: IPv4/v6, IPv4, or IPv6. This will
effect the WAN IP Settings and WAN IPv6 Settings.
PPP Settings: IPoA mode does not support PPP authentication.
WAN IP Settings: Configure the IPv4 WAN settings. If the IP Protocol is set to IPv6,
these settings are unavailable.
Type: Choose either Fixed (Static IP), or Dynamic IP.

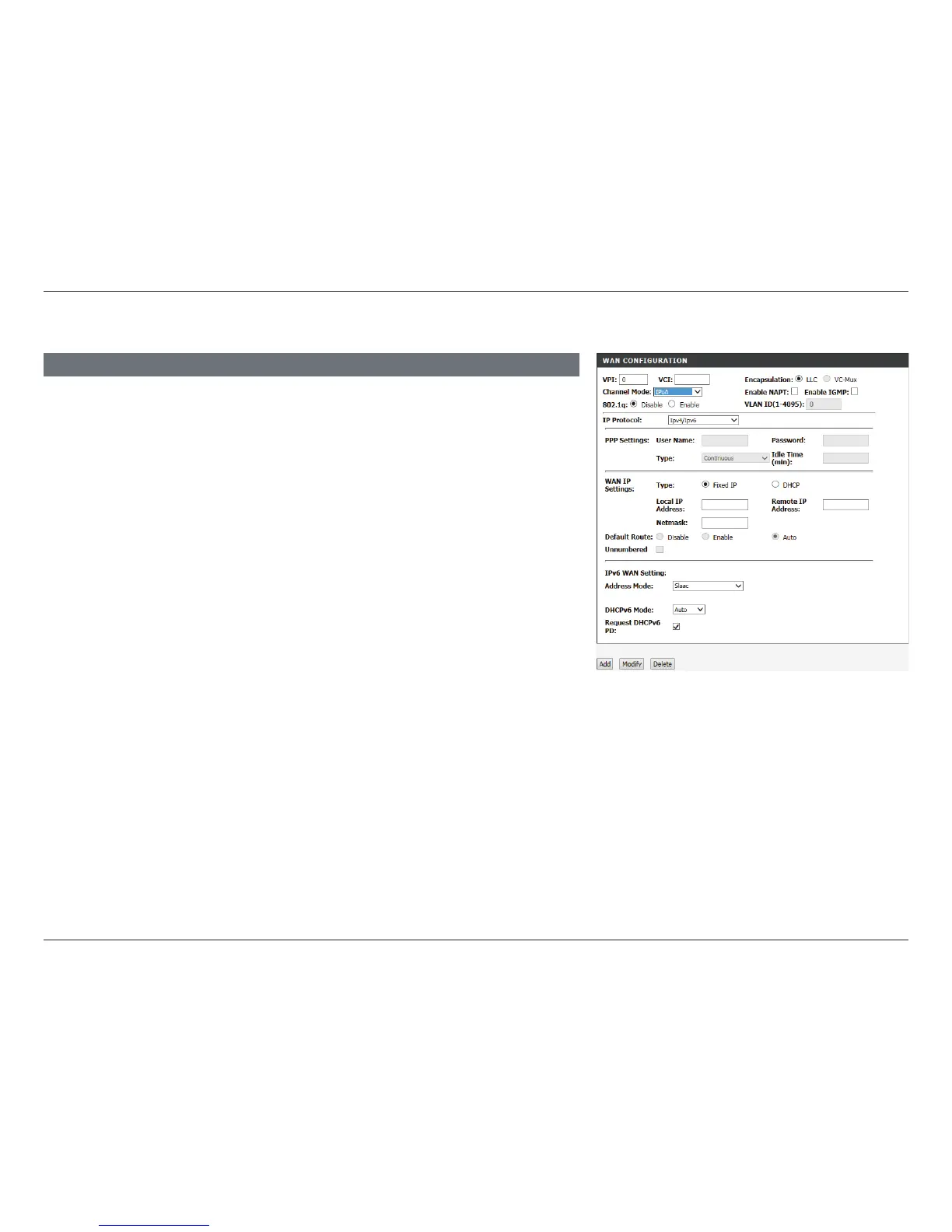

WAN CONFIGURATION
