Click Refresh to update the screen with the most current information.
Monitoring Managed AP Statistics
The managed AP statistics show information about traffic on the wired and wireless interface of the access point. This
information can help diagnose network issues, such as throughput problems.

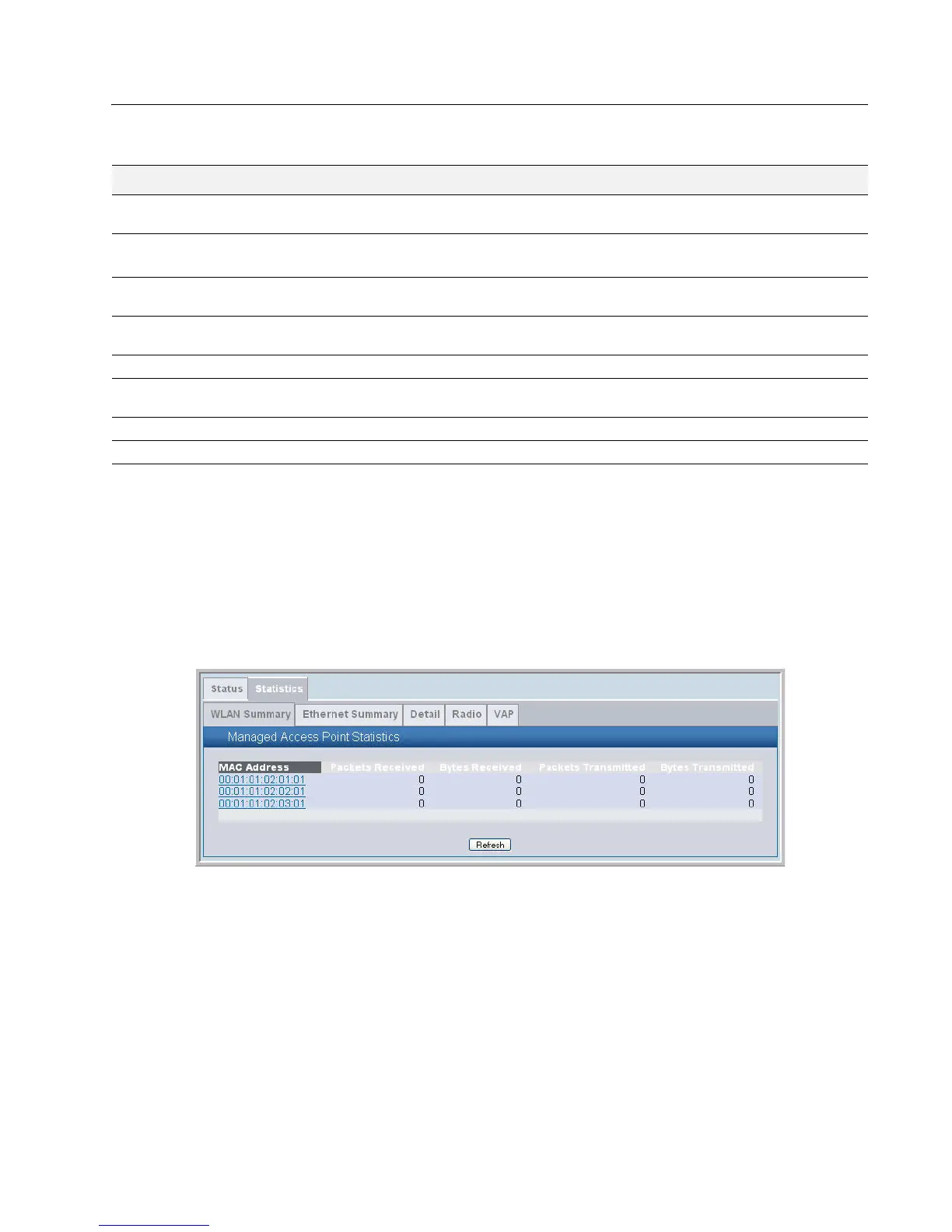

Figure 62 shows the Managed Access Point Statistics page with two managed APs.
Figure 62: Managed AP Statistics
The following tabs are available from the Managed AP Statistics page:
• WLAN Summary—Shows summary information about the wireless interfaces on each AP the switch manages.
• Ethernet Summary—Shows summary information about the Ethernet (wired) interfaces on each AP the switch
manages.
•Detail—Shows the number and type of packets transmitted and received on a specific AP.
•Radio—Shows per-radio information about the number and type of packets transmitted and received for a specific AP.
•VAP—Shows per-VAP information about the number of packets transmitted and received and the number of wireless
client failures for a specific AP
Table 36: Managed Access Point VAP Status
Field Description
MAC Address -Location
(Menu)
Shows the MAC address and location of the AP to which the values on the page apply. To
view details about a different AP, select its MAC address from the menu.
Radio
(ex. 1-802.11g)
Indicates a radio interface and its configured mode. Select one of the radios to view VAP
status for that radio.
VAP ID The integer ID used to identify the VAP (0-7), this is used to uniquely identify the VAP for
configuration via CLI/SNMP.
VAP Mode Indicates whether or not the VAP is enabled or disabled. VAPs are always configured, but are
only sending beacons and accepting clients when they are Enabled.
BSSID The Ethernet address of the VAP.
SSID Indicates the network assigned to the VAP. The network for each VAP is configured within the
AP profile and the SSID is based on the network configuration.
Client Associations Indicates the total number of clients currently associated to the VAP.
Client Authentications Indicates the total number of clients currently authenticated with the VAP.
