Software User Manual D-Link Unified Access System
02/15/2011
Document 34CS3000-SWUM104-D10 Page 41

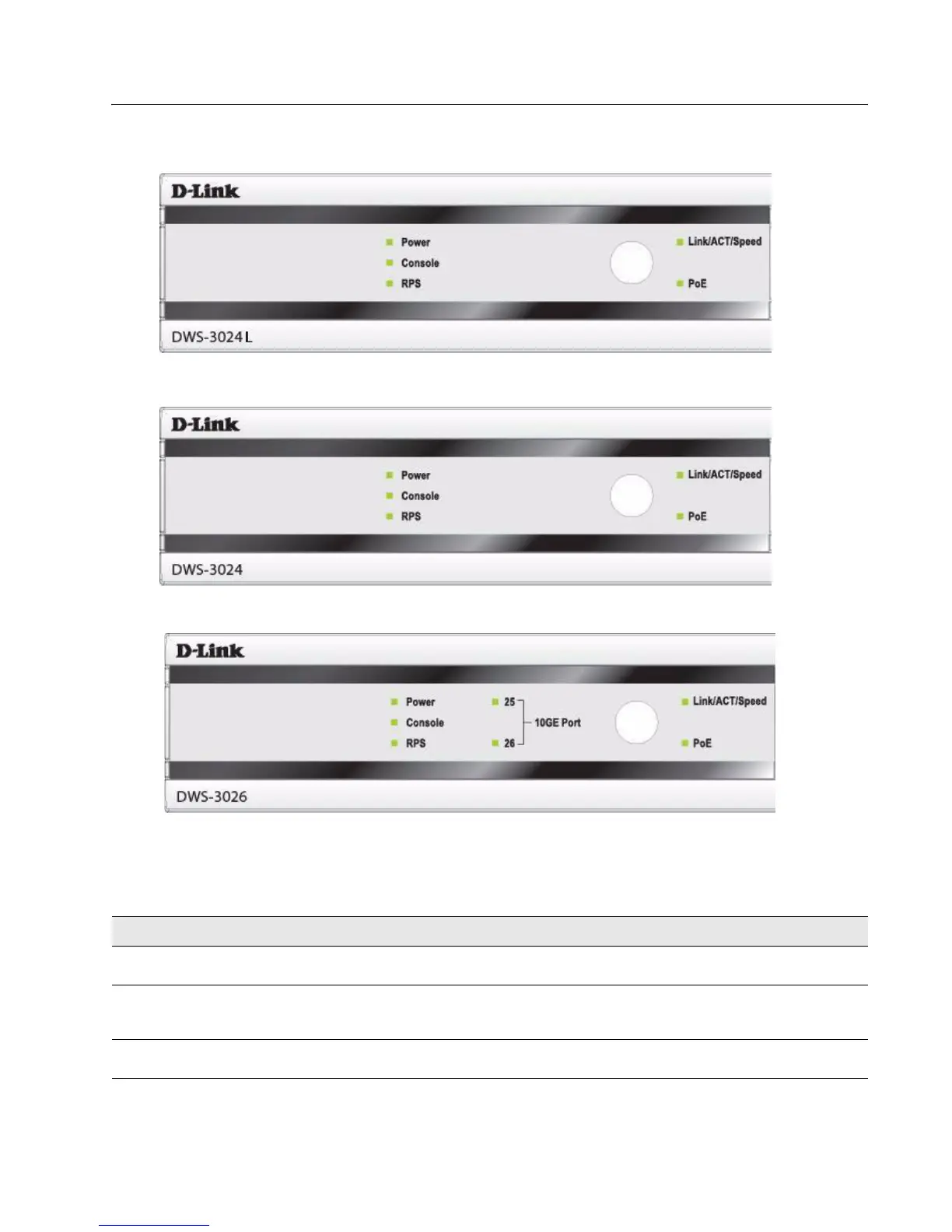

Figure 14: LED Indicators on DWS-3024L
Figure 15: LED Indicators on DWS-3024
Figure 16: LED Indicators on DWS-3026
The following table describes the LEDs and the Mode Select Button on the front panel of each Switch.
Table 3: LED Description
LED Description
Power This LED lights green after powering the Switch on to indicate the ready state of the device.
The indicator is dark when the Switch is no longer receiving power (i.e powered off).
Console This LED blinks green during the Power-On Self Test (POST). When the POST is finished,
the LED goes dark. The indicator lights steady green when an active console link is in session
via the RS-232 console port.
RPS This LED lights when the internal power has failed and the RPS has taken over the power
supply to the Switch. Otherwise, it remains dark.
