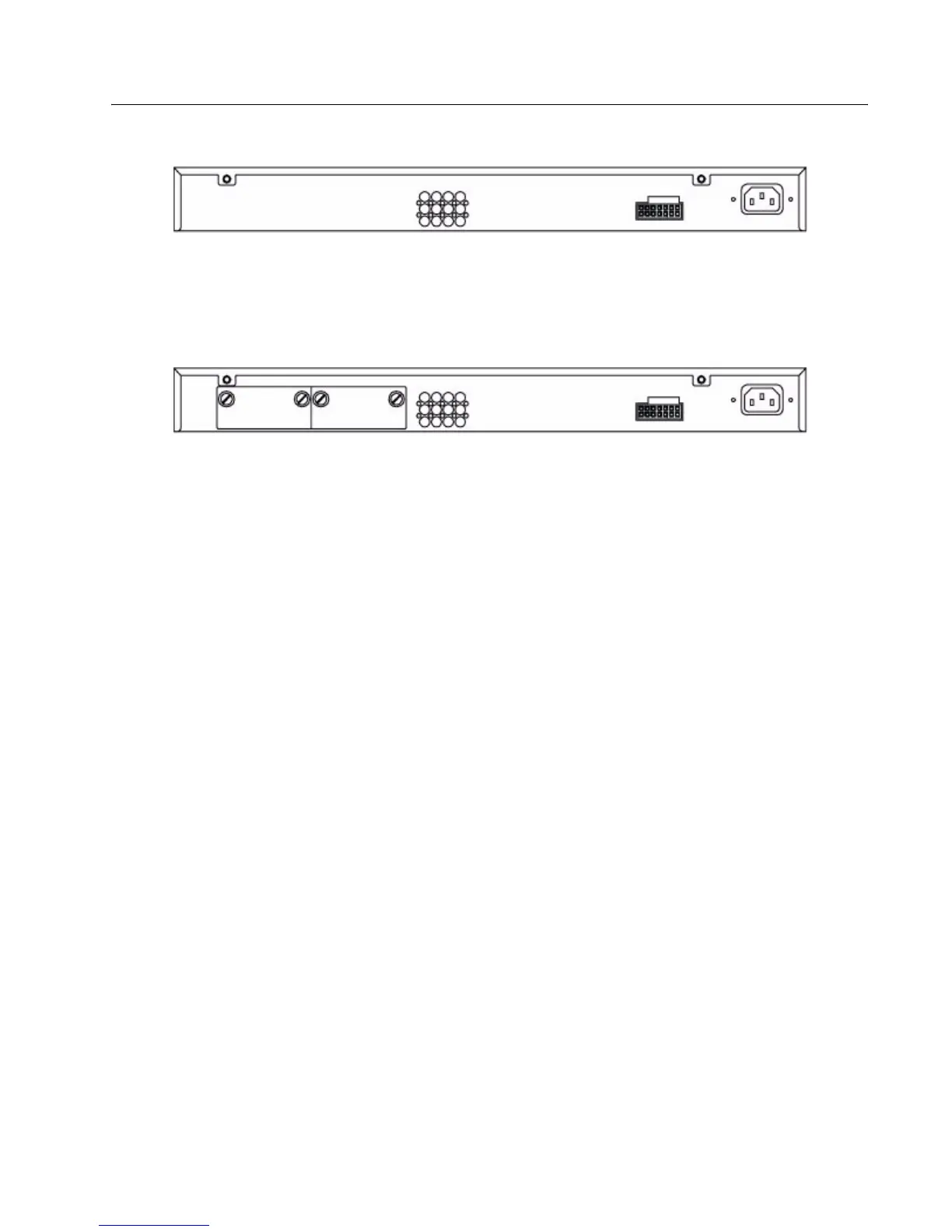

Figure 17: Rear panel view of DWS-3024/DWS-3024L
The rear panel of the DWS-3026 contains an AC power connector, a system fan vent, a redundant power supply connector
and two empty slots for optional 10GE module inserts.
Figure 18: Rear panel view of DWS-3026
Side Panels
The system fans and heat vents located on each side of the Switch dissipate heat. Do not block these openings. Leave at
least 6 inches of space at the rear and sides of the Switch for proper ventilation. Without proper heat dissipation and air
circulation, system components might overheat, which could lead to system failure and severely damage components.
INSTALLATION
This section describes how to install the Switch on a flat surface or in a standard equipment rack. It also describes how to
install the optional components for the Switch.
Package Contents
Open the shipping carton of the Switch and carefully unpack its contents. The carton should contain the following items:
1 One Switch
2 One AC power cord
3 Mounting kit (two brackets and screws)
4 Four rubber feet with adhesive backing
5 RS-232 console cable
6 One CD Kit for DWS-3000 Series D-Link Unified Access System User Manual and D-Link CLI Command Reference
7 Registration card & China Warranty Card (for China only)
If any item is missing or damaged, please contact your local D-Link Reseller for replacement.
Installation Guidelines
Please follow these guidelines for setting up the Switch:
• Install the Switch on a sturdy, level surface that can support at least 6.6 lb. (3 kg) of weight. Do not place heavy objects
on the Switch.
