D-Link Unified Access System Software User Manual
02/15/2011
Page 70 Document 34CS3000-SWUM104-D10

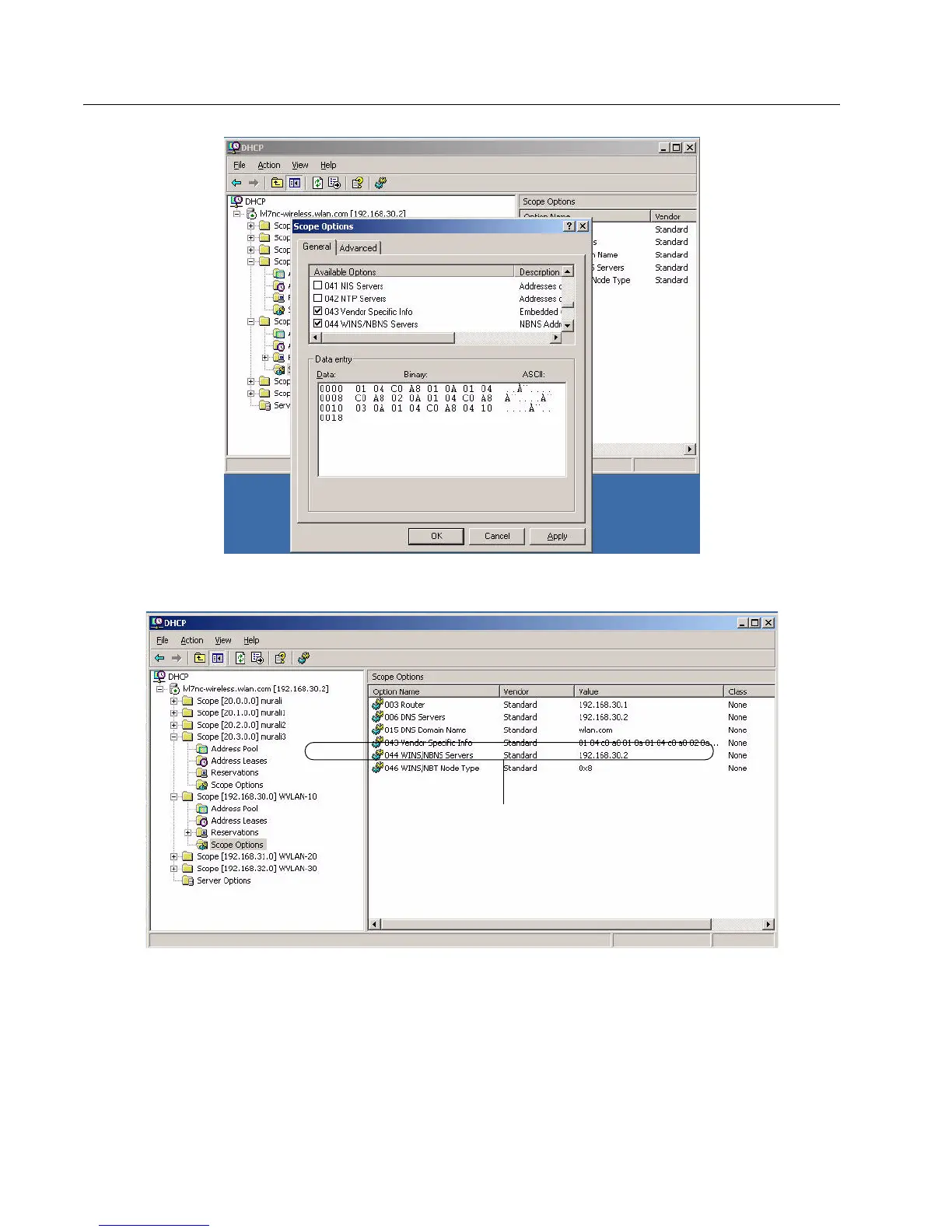

The following image shows the four IP addresses entered into the Data Entry field on the Windows DHCP server.
4 Click OK.
The following figure shows a scope with Option 43 configured.
AUTHENTICATING AND VALIDATING ACCESS POINTS
For a D-Link Unified Switch to manage an AP, you must add the MAC address of the AP to the local or external RADIUS
database. When the switch discovers an AP that is not managed by another Unified Switch, it looks up the MAC address of
the AP in the local or RADIUS Valid AP database. If it finds the MAC address in the database, the switch validates the AP
Scope with Configured
Option 43 Information
