5
-
22

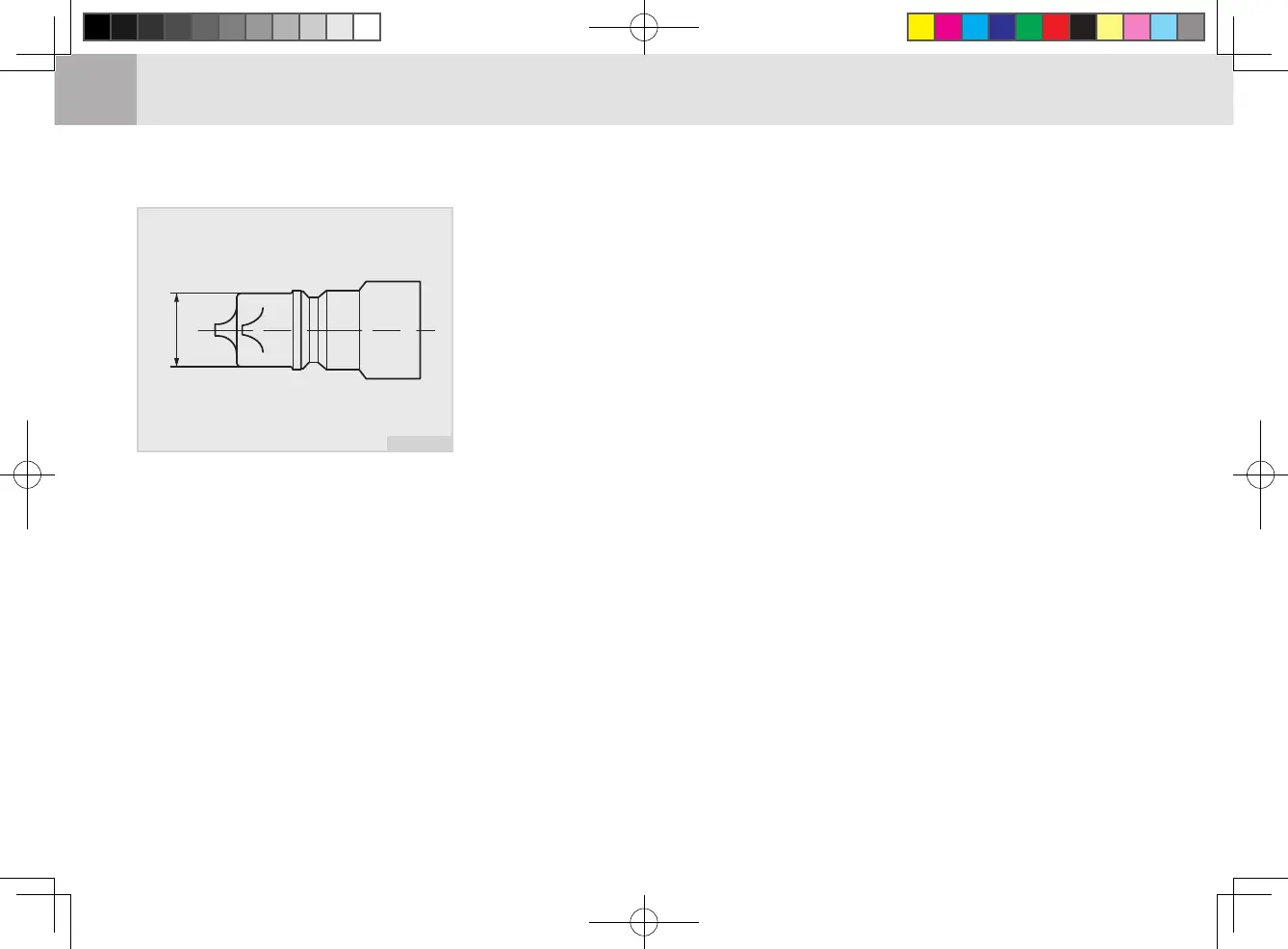

(A) Diameter
A
TC2O525A
The hose unions used must comply
with ISO standards.
Dimension (A) must be between 20.48
and 20.56 mm (0.806 and 0.809 in.).
PT1/2 COUPLER SOCKET (IMPLE-
MENT)
CONNECTING AND DISCON-
NECTING IMPLEMENT
CONNECTION
1. Make sure to stop the engine before
connecting it.
2. Move the double acting valve lever
forward and backward for 4 to 5 times
to release the pressure in the hydrau-
lic line of the tractor. Otherwise, it is
hard to connect the couplers, and
hydraulic uid can be sprayed from
the line and get in to your eyes while
connecting them.
3. Remove any foreign material around
the male and female couplers. If
foreign material enters the hydraulic
components, it can lead to malfunc-
tion of the system.
4. Open the dust-proof cover of the fe-
male coupler of the tractor and insert
the male coupler of the implement.
A clicking sound is heard when the
couplers are engaged.
5. Pull the hydraulic hose of the imple-
ment to check that the couplers are
properly connected.
6. Start the engine and check the op-
erating status and leakage.
1. Make sure to stop the engine before
disconnecting it.
2. Release any residual pressure in the
hydraulic hoses of the implement
and tractor by operating the double
acting valve lever 4 to 5 times.
3. Remove any foreign material around
the couplers.
4. Keep the implement balanced by re-
moving any load applied. (Lowering
it onto the ground, for example)
If disconnecting the hose while outer
load is applied to the implement, it
is hard to connect the implement in
the future.
5. Remove the male coupler by push-
ing the female coupler boss of the
tractor backward.
6. Close the dust-proof cover of the
female coupler of the tractor. Wrap
the male coupler of the implement
with a plastic bag to prevent con-
tamination.
DISCONNECTION
