• It is possible to operate the shuttle
shift lever at a high speed. When
pulling the lever backward during
forward driving, reverse driving is
selected as soon as the machine
speed is decreased down to 9
km/h.
• When placing the shuttle shift le-
ver in the neutral position, power
is cut o, resulting in decrease of
the machine speed and eventually
stopping of the machine.
CAUTION
• Operating the shuttle shift lever
at a high speed can be very dan-
gerous. Make sure to reduce
the driving speed suciently
before operating the lever.
Four speeds can be selected by mov-
ing this main shift lever in "H"shaped
path. You can shift this lever from the
1st to 4th gears even when the tractor
body is moving by disengaging the
clutch during driving as these gears
are synchromeshed.
In total, 32 forward driving speeds and
32 reverse driving speeds are provided
by combination of the main shift lever
(2 (Hi/Low) speeds x 4 speeds), range
shift lever (4 speeds) and shuttle shift
lever. (EU Model)
MAIN SHIFT LEVER
HX1O498A
This functions as the foot clutch ped-
al. When pressing this button during
driving, the main shift lever can be
operated. (Without depressing the foot
clutch pedal)
HAND CLUTCH
You can switch between the high
driving speed and low driving speed
by pressing this button during driving.
The current shifting status can be
identied through the HIGH/LOW lamp
on the instrument cluster. (When the
engine is started, the LOW speed is
automatically selected.)
HIGH / LOW BUTTON (POWER SHUT-
TLE)

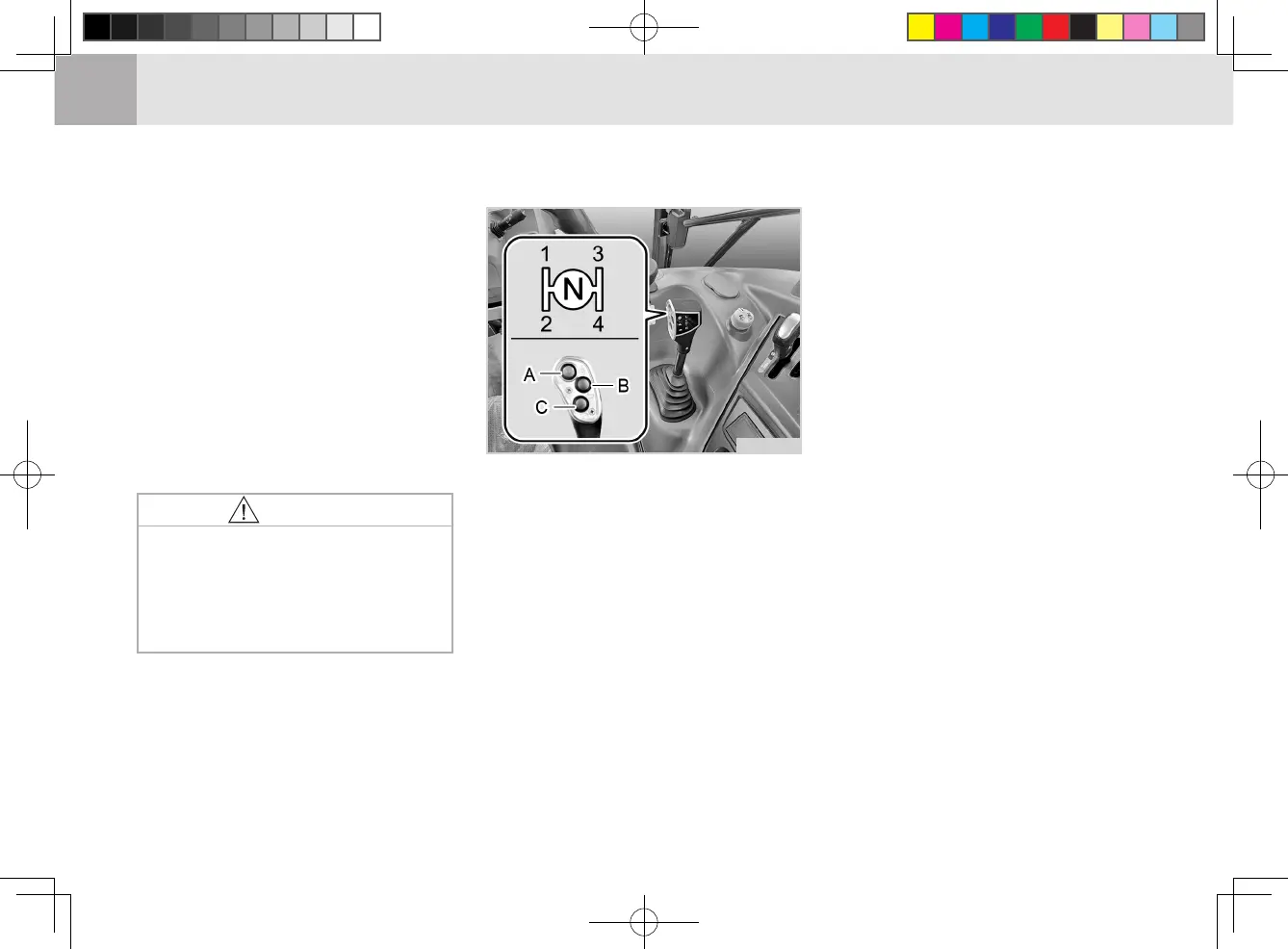

(1) Main Shift Lever (A) Hand Clutch
(B) High Speed Selection Button
(C) Low Speed Selection Button
In total, 24 forward driving speeds and
24 reverse driving speeds are provided
by combination of the main shift lever
(2 (Hi/Low) speeds x 4 speeds), range
shift lever (3 speeds) and shuttle shift
lever. (US Model)
