Daedong HX9010 - Power Boost Function; Dpf Regeneration Switch

4
DESCRIPTION OF OPERATING SYSTEM
4
-
11

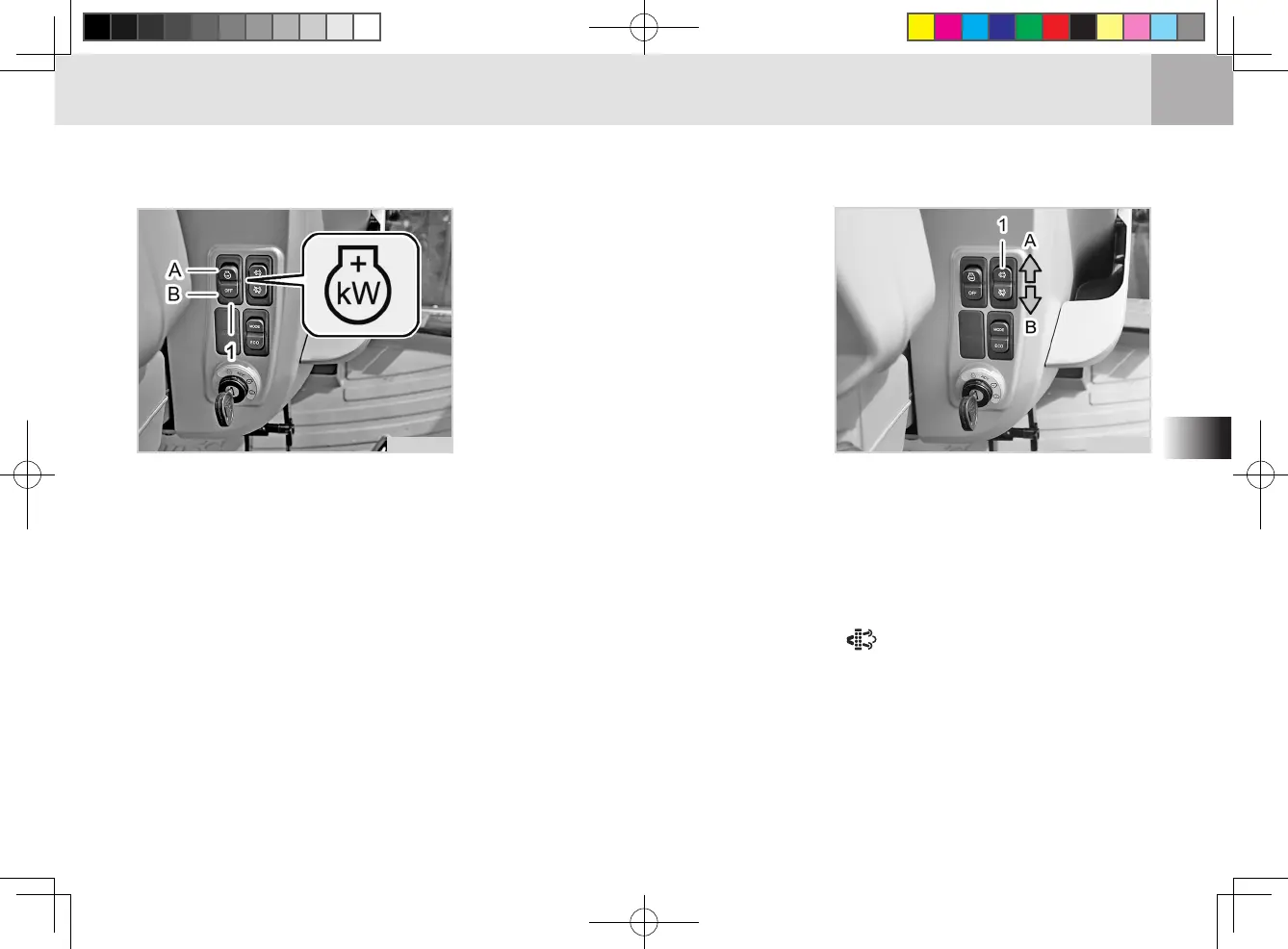

(1) Power Boost Button
(A) ON (B) OFF
POWER BOOST FUNCTION
Power boost is a function that increas-
es the output from the rated or max-
imum output when the power boost
button is turned on during a specic
operation.
1. POWER BOOST FUNCTION
SETTING
When the button is pressed, the
function is activated and the green
LED on the switch turns on when
the function is activated.
HX1O4G1A
2. POWER BOOST CONDITIONS
If one or more of the two conditions
are satised, the power boost function
is activated.
1) When working with PTO: PTO main
switch “ON” + vehicle speed of
0.5km/hr or more
2) Driving: Vehicle speed 15km/hr or
higher (Lamp turns o󰀨 and inactive
at 13km/hr or less)
HX1O412U
(1) DPF Regeneration Switch
(A) Activation (B) Deactivation
DPF REGENERATION SWITCH
ACTIVATION (UPPER PORTION
OF SWITCH)
Perform the following instructions
when the regeneration warning lamp
( ) comes on:
1. Park the tractor on a at surface.
2. Run the engine at idle. The speed
adjustment lever should be at low
speed.
3. Put all shift levers in the neutral
position.
4. Apply the parking brake.
