Daedong HX9010 - Shuttle Shift Lever

4
DESCRIPTION OF OPERATING SYSTEM
4
-
29
SHUTTLE SHIFT LEVER

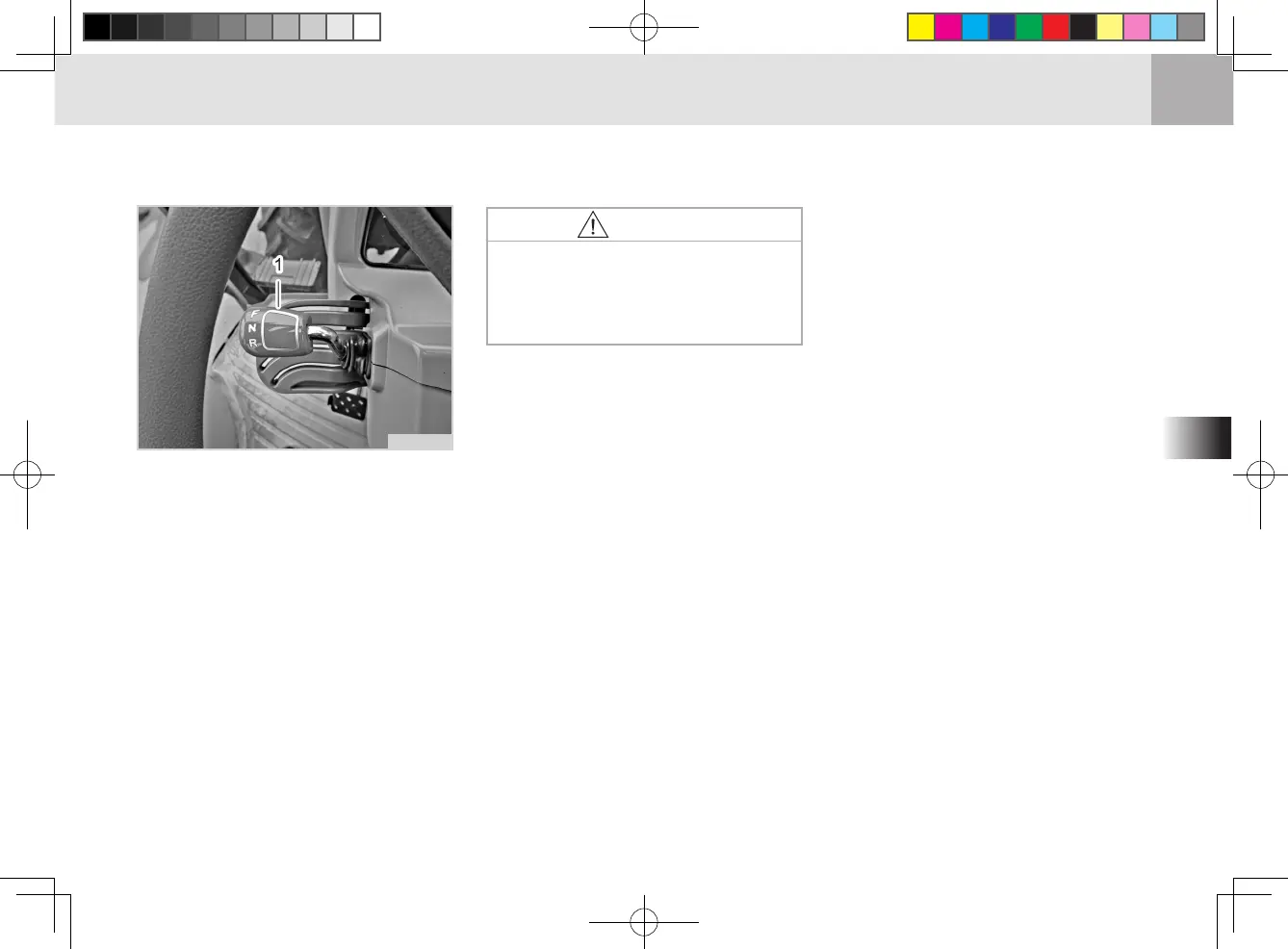

(1) Shuttle Shift Lever
(F) Forward (N) Neutral (R) Reverse
This lever is used to select forward or
reverse driving.
As the transmission structure of this
lever is an electro-hydraulic type, it
can move in either a forward or re-
verse direction only by operating the
shuttle shift lever without the clutch de-
pressed. Put this lever into the neutral
position when the tractor is not driven.
HOW TO SWITCH BETWEEN FOR-
WARD DRIVING AND REVERSE DRIV-
ING (P/ SHUTTLE)
• To switch between the forward
driving and reverse driving, push
the shuttle shift lever forward while
lifting it slightly to select forward
driving. Pulling it back selects
reverse driving.
• If the engine is just started, oper-
ate the shuttle shift lever at a low
engine speed. When the machine
starts to move, depress the accel-
erator pedal to increase the driving
speed.
• There may be a shock from shuttle
shifting if the transmission uid
temperature is low. Therefore, be
sure to warm up the engine su󰀩-
ciently before starting o󰀨.
CAUTION
• Reduce the speed before mov-
ing this lever since it is very
dangerous to switch the driving
direction at a high speed.
